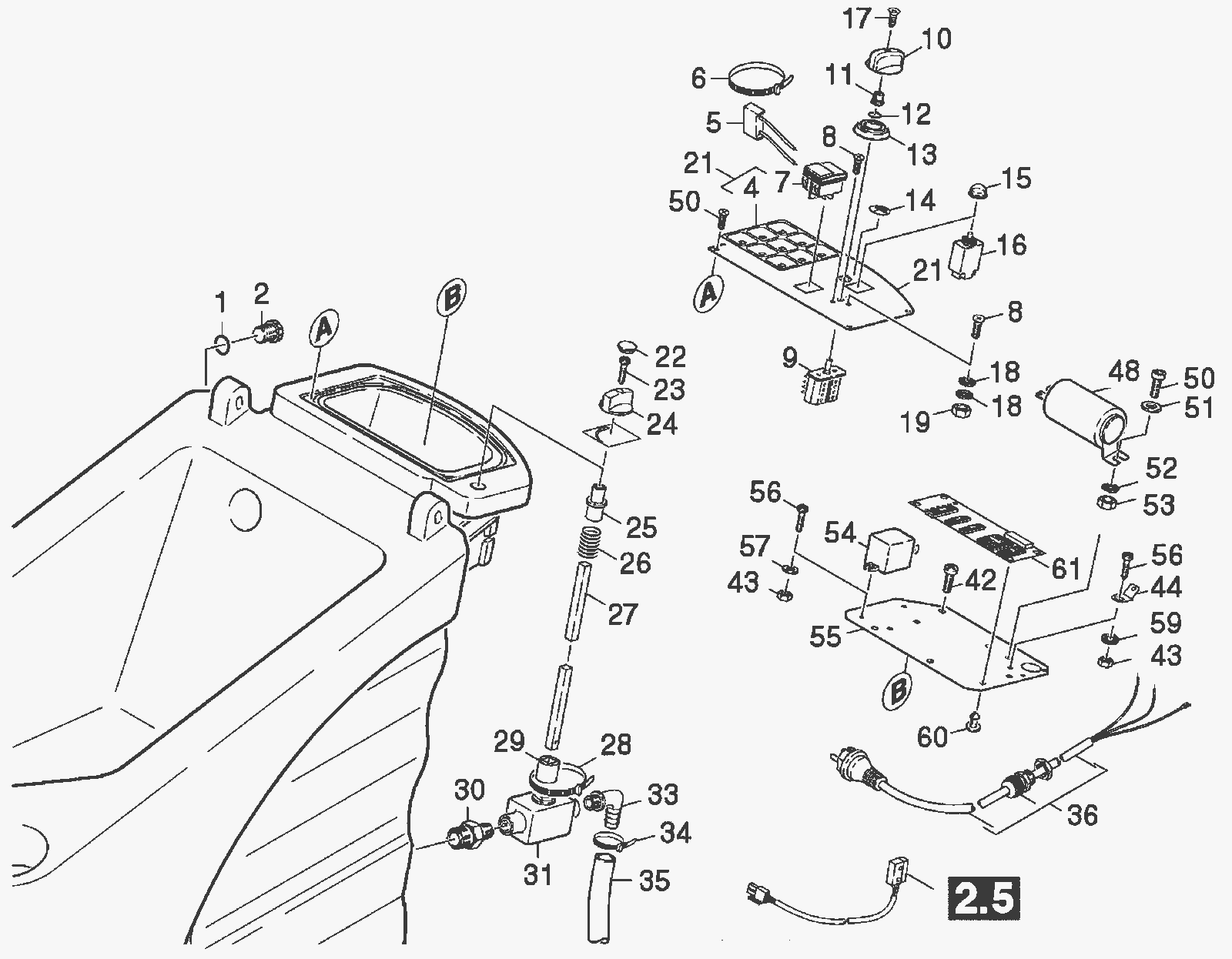

Control Panel Assembly

#PartDescription ReqNotesAvailability
1 273-9184 Flat gasket 1
2 183-0132 Closure 1
4 183-6005 Decal 1
5 373-2070 Capacitor 1
6 183-0139 Cable tie (Obsolete) 1
7 183-0110 Switch 1
8 183-0336 Screw (obsolete) 5
9 183-6006 Switch 1
10a 273-6475 Knob 1 (after SN 35011)
11 373-1450 Clamp 1
12 373-1441 O-ring seal 1
13 373-1449 Screen 1
14 183-9710 Ground decal 2
15 373-2071 Protecting cap 1
16 183-6007 Motor protection switch 1
17 273-6476 Screw 1
18 183-2026 Washer lock 4
19 999-1619 Nut M4 hex stainless steel 3
21a 183-6008 Control panel 1 (after SN 35011)
21b 373-2080 Control panel 1 (before SN 35012)
21c 373-2084 Control panel reworking 1 (before SN 35012)
22 183-0114 Ornamental hub cap 1
23 183-0140 Sheet metal screw 1
24 183-0116 Handle 1
25 183-0117 Coupler 1
26 183-0118 Helecal spring 1
27 183-0119 Bar 1
28 183-0142 Tie band 6
29 183-0120 Coupler 1
30 183-0143 Double nipple connector 1
31 183-7489 Manual ball valve 1
33 183-0122 Angle Socket 1
34 183-0123 Hose clamp 1
35 183-0124 Hose 2in (to order as cut goods)
36a 373-2072 Cable with plug 1 (before SN 47202 for model numbers 1.127-121.0/-221.0/-321.0/-421.0/-805.0/-807.0)
36b N/A Not available 1 (cable)
36c 373-2073 Cable with plug RA 1 (before SN 47202 for model number 1.127-809.0)
36d 373-2074 Cable with plug UL 1 (before SN 47202 for model number 1.127-683.0)
36e 373-2075 Cable with plug 1 (after SN 47201 for model numbers 1.127-321.0/-421.0)
36f 373-2076 Cable with plug 1 (after SN 47201 for model number 1.127-683.0)
36g N/A Not available 1 (cable)
36h N/A Not available 1 (cable)
26i 373-2082 Cable with plug 1 (before SN 35012)
42 183-0075 Screw 5-16 x 10.9mm 3
43 183-0233 Hex nut 6
44 N/A Not available 2 (plug)
48a 183-6009 Capacitor 1 (only for IBMEI-Motor) (models 1.127-121.0/-221.0/-321.1/-421.1/-683.0/-805.0/-807.0/-809.0)
48b 173-9085 Capacitor 1 (only for ATB motor)
50 183-0133 Screw 5
51 183-0154 Washer (Obsolete) 1
52 373-2077 Lock washer 1
53 183-0153 Hex nut (Obsolete) 1
54a 183-6010 Relay 1 (for models 1.127-121.0/-221.0-/-321.0/-421.0/-805.0/-807.0/-809.0)
54b 373-2078 120V relay 1 (for model 1.127-683.0)
55a 373-2079 Plate 1 (after SN 35011)
55b 183-0145 Plate (Obsolete) 1 (between SN 35011 and 47202)
56 273-9959 Screw M3 x 8 3
57 183-0243 Washer 2
59 273-9209 Serrated lock washer 4 (after SN 47200)
60 N/A Not available 4 (spacer)
61 183-6011 Mid-size autoscrubber PCB 1 (after SN 47200)
N/S 183-0175 Insulating hose 1 (to order as cut goods) (between SN 35011 and 47202)
N/S 183-0278 Nut counter (Obsolete) 1 (between SN 35011 and 47202)
N/S 273-4602 Terminal clamp 1 (between SN 35011 and 47202)
N/S 373-2081 Holder 1 (before SN 35012) (for models 1.127-121.0/-221.0/-321.0/-421.0/-805.0/-807.0/-809.0)
N/S 373-1709 Pipe clamp 1 (before SN 35012) (for models 1.127-121.0/-221.0/-321.0/-421.0/-805.0/-807.0/-809.0)
N/S 373-2083 Electrical small parts 1 (before SN 35012)
N/S 183-0108 Screw M4-10.9 x 16mm oval head 4 (before SN 35012)
N/S 183-0129 Washer (Obsolete) 1 (before SN 35012)
N/S 183-0111 Screw (Obsolete) 1 (before SN 35012)
N/S 273-9215 Pipe clamp 1 (before SN 35012)
N/S 373-2027 Screw m3 x 6 2 (before SN 35012)
N/S 183-0115 Sheet metal screw (Obsolete) 1 (before SN 35012)
N/S 183-0121 Double nipple 1 (before SN 35012)
N/S 183-0126 Gasket 1 (before SN 35012)
N/S 183-0127 Closing screw 1 (before SN 35012)
N/S 183-0146 Insulating house 5 (before SN 35012) (all CVD uprights)
