BR 530 99675

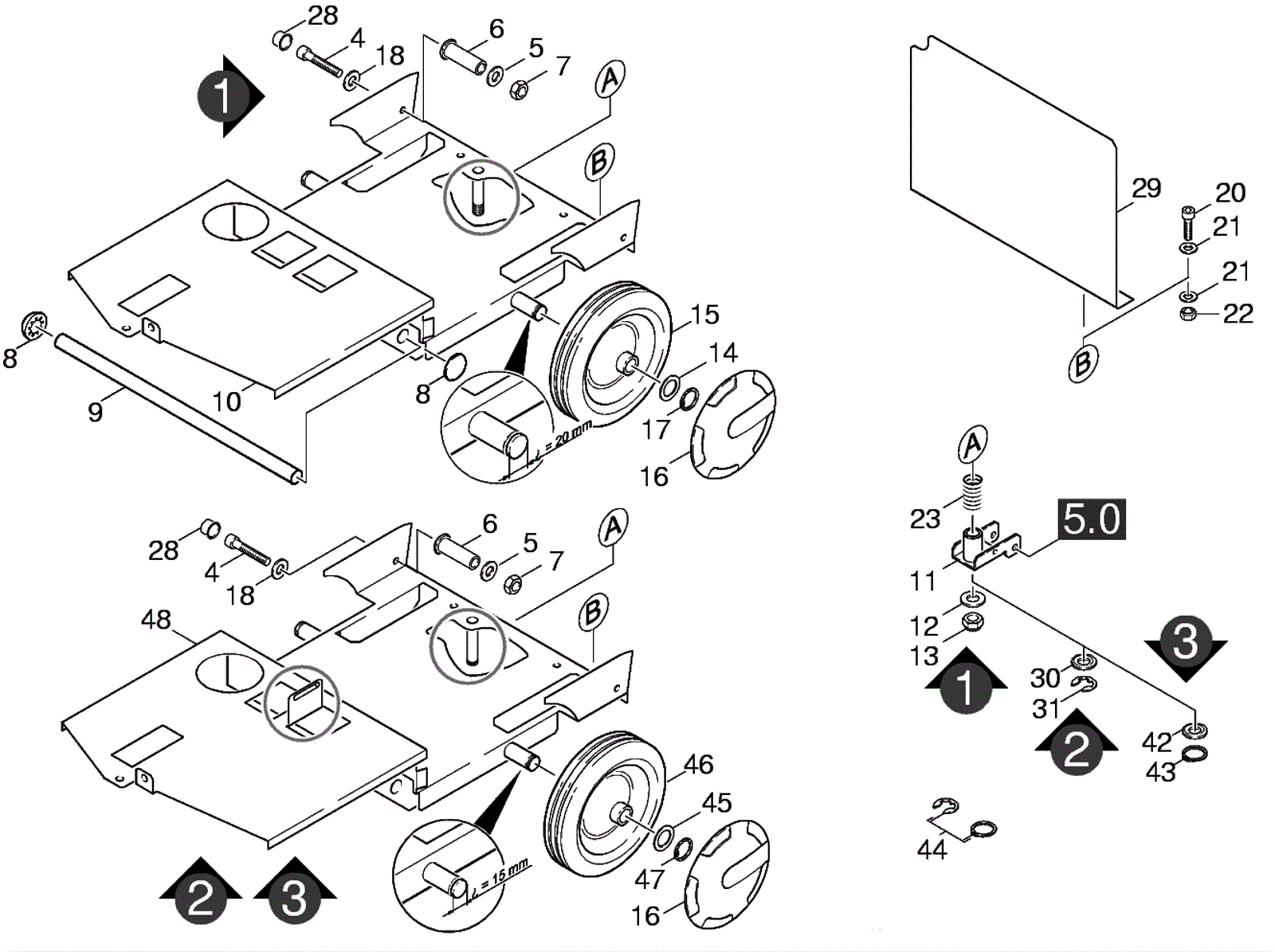

Chassis Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
4
183-0213
Cheese head screw
$1.23
2
(before SN 13377)
usually ships 1-5 days
5
173-6204
Washer 8M
$1.16
4
usually ships 1-5 days
6
183-0089
Sleeve
$3.60
2
(before SN 13377)
usually ships 1-5 days
7
183-0218
Hex nut
$1.98
2
usually ships 1-5 days
8
183-0219
Washer lock
$4.83
2
(before SN 13377)
usually ships 1-5 days
9
183-0220
Axle (Obsolete)
$10.36
1
(before SN 13377)
usually ships 1-5 days
10
183-0222
Bracket (Obsolete)
$308.71
1
(before SN 13377)
usually ships 1-5 days
11
183-0224
Carrier
$60.68
1
(before SN 13377)
usually ships 1-5 days
12
183-0226
Washer (Obsolete)
$4.18
1
usually ships 9-20 days
13
183-0227
Hex nut
$1.23
1
usually ships 1-5 days
14
183-0256
Washer
$10.26
2
usually ships 1-5 days
15
183-0228
Wheel
$47.09
2
usually ships 1-5 days
16
183-0229
Wheel cab
$5.46
2
usually ships 1-5 days
17
183-0230
Spring clip
$2.93
2
usually ships 1-5 days
18
183-0099
Washer
$1.23
2
usually ships 1-5 days
20
183-0236
Screw
$0.56
2
usually ships 9-20 days
21
183-0237
Washer
$1.91
8
usually ships 1-5 days
22
183-0079
Hex nut
$1.23
2
usually ships 1-5 days
23
183-0238
Helical spring
$5.00
1
usually ships 1-5 days
28
183-0087
Protecting cap
$20.68
2
usually ships 1-5 days
29
N/A
Not available
Call for price
1
(plate)
usually ships 30-32 days
30
183-0240
Washer
$1.31
1
usually ships 1-5 days
31
183-0241
Washer lock
$1.85
1
usually ships 1-5 days
42
183-0251
Washer
$2.70
1
usually ships 1-5 days
43
183-0252
Spring clip
$1.23
1
usually ships 1-5 days
44
183-0254
Piece parts
$3.41
1
usually ships 1-5 days
45
183-0255
Washer
$40.20
2
usually ships 1-5 days
46
183-0257
Wheel
$45.99
2
usually ships 1-5 days
47
183-0258
Spring clip
$1.23
2
usually ships 1-5 days
48
183-0234
Bracket (Obsolete)
$435.19
1
(after SN 13376)
usually ships 1-5 days
