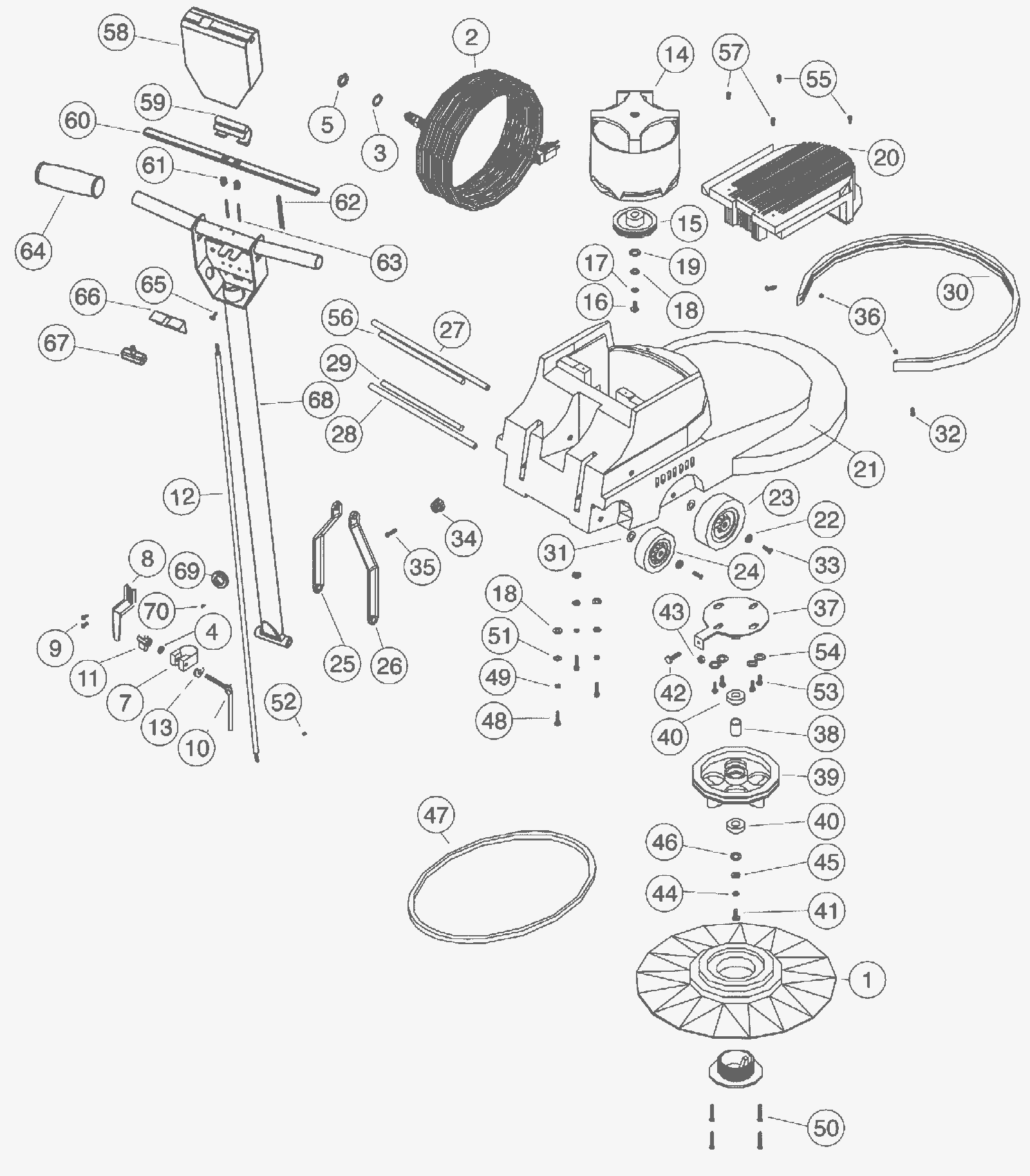

Entire Assembly

#PartDescription ReqNotesAvailability
1 183-2532 Flexible pad driver 1
2 190-0102 12/3 power cord 75 foot (gray) 1 (115V)
3 183-2533 Strain relief washer 1
4 183-2534 Washer 1
5 183-1098 Nut lock steel conduit appleton 12 inch 1
7 189-3012 Handle clamp collar 1
8 189-2978 Cord hook 1
9 189-2979 Screw 10-24 x 1/2 pan head phillips type f 1
10 190-0008 Handle clamp assembly 1
11 189-2981 Knob 1
12a 183-9049 14/2 in-line power cord 1 (oem)
12b 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (non-oem)
12c 991-5001 14/3 extension cord 50 foot (yellow) 1 (NON-OEM)
13 189-3010 Oval washer 1
14a 189-3008 1-1/2 hp 115 v rectified D.C. motor 1 (115V)
14b 190-0663 1.5 Hp motor 1 (230V)
15 183-9063 1600 pulley 1
16 189-2991 Screw 5/16-18 x 1-1/2 flat phillips 1
17 999-0406 Washer 5/16 internal star lock zinc plated 1
18 999-0120 Washer 3/8 SAE flat 1
19 189-2993 Washer 3/8 wrought 1
20 183-3274 Motor cover (yellow) 1
21 183-9048 Base housing 1
22 999-0016 Washer 1/4 flat plain finish 1
23 189-2987 5 inch wheel 2
24 189-2985 4 inch wheel 2
25 189-2980 Left side handle brace 1
26 189-3013 Right side handle brace 1
27 190-0670 Axle 2
29 190-0671 Pivot shaft brace 1
30 183-9064 Bumper (blue/black) 1
31 189-2984 Spring washer 1
32 999-1389 Screw 8-32 x 3/4 truss head phillips stainless steel 1
33a 999-0694 Screw 1/4-20 x 1/2 flat head phillips zinc plated 1
33b 183-9065 Screw 1/4-20x 3/4 inch 1
34 190-0267 Bumper 1
35 999-0883 Screw 8 x 1 pan head phillips zinc plated 1
36 190-0268 Spacer 2
37 189-2999 Shaft and plate weldment 1
38 189-2996 Bearing spacer (OBSOLETE) 1
39 189-2997 Main pulley 1
40 189-2995 Bearing 1
41 189-2992 Bolt 5/16-18 x 3/4 hex cap 1
42 183-9067 Bolt 5/16-18 x 1 1/4 inch 1
43 999-0069 Nut 5/16-18 hex 1
44 999-0406 Washer 5/16 internal star lock zinc plated 1
45 999-0120 Washer 3/8 SAE flat 1
46 189-2993 Washer 3/8 wrought 1
47a 189-3000 41 in vee belt (1600) 1 (115V)
47b 183-0070 Belt (obsolete) 1 (230V)
48 999-0298 Bolt 1/4-20 x 1 1/4 hex head stainless steel 1
49 190-0269 Washer 1/4 spring lock 1
50 189-2991 Screw 5/16-18 x 1-1/2 flat phillips 1
51 183-2534 Washer 1
52 999-0156 Screw 1/4-20 x 3/16 cup point socket set alloy plain finish 1
53 189-2998 Screw 3/8-16 x 3/4 hex end cap 4
54 189-2993 Washer 3/8 wrought 4
55 999-1544 Screw 8-32 x 1/2 truss head phillips stainless steel 2
56 190-0677 Pivot shaft handle 1
57 999-1389 Screw 8-32 x 3/4 truss head phillips stainless steel 1
58 189-8626 Switch box cover 1
59 190-0060 Thumb actuation release 1
60 190-1322 Handle trigger 1
61 190-0062 Trigger tension spring 2
62 190-0063 Spring 1
63 190-0064 Handle roll pin 2
64 190-0270 Handle grip 2
65 189-2979 Screw 10-24 x 1/2 pan head phillips type f 1
66 190-0067 Insulation sheet 1
67a 190-0575 On/off switch 1
67b 183-9068 Momentary switch with nuts 1
67c 991-2107 Switch 1 (NON-OEM)
68 190-0271 Handle weldment 1
69 189-8627 Grommet 1
70 999-0156 Screw 1/4-20 x 3/16 cup point socket set alloy plain finish 1
N/S 189-3042 50 amp 60 cycle rectifier 1
N/S 183-8883 230V rectifier 1
N/S 189-3039 Carbon brush (sold individually) 1 (115V)
N/S 183-2535 Start capacitor 1
N/S 190-0066 Washer lock 1
N/S 183-0069 Carbon brush 1 (230V)
