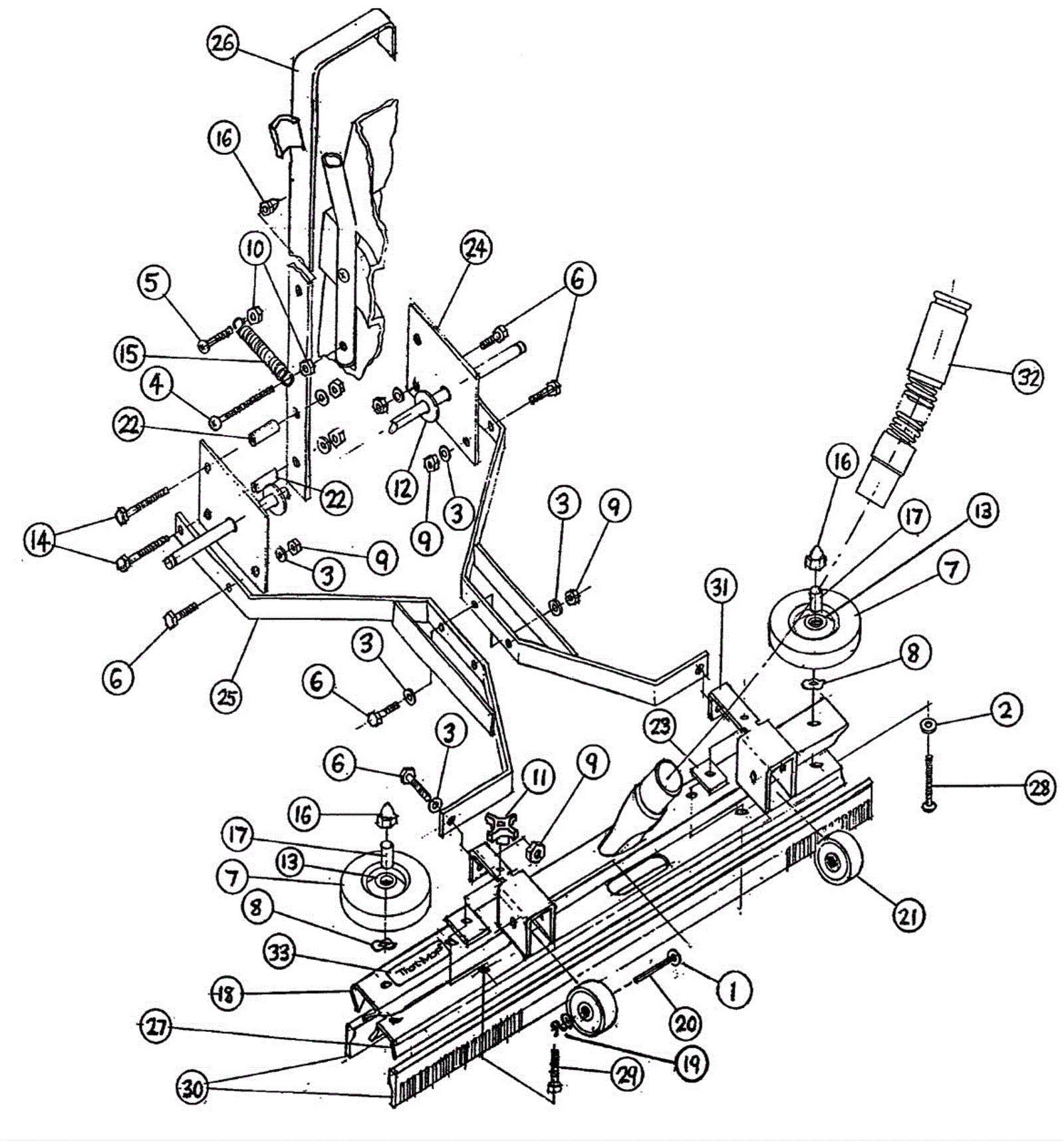

HEADMSTR4000 TRMOP Trot-Mop Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-0445 Washer $0.99 1 usually ships 8-21 days
2 183-1175 Washer 1/4 plain $0.99 2 usually ships 8-21 days
3 183-0446 Washer lock $5.30 11 usually ships 8-21 days
4 183-0488 Screw 1/4-20 x 2 round head $0.99 1 usually ships 8-21 days
5 183-1148 Screw 1/4-20 x 7/8 round head $0.99 1 usually ships 8-21 days
6 183-0530 Screw 5/16-18 x 3/4 hex head $5.30 7 usually ships 8-21 days
7 183-0021 Bumper wheel $13.05 2 usually ships 8-21 days
8 183-0589 Washer 3/8 spring $0.99 2 usually ships 8-21 days
9 183-1219 Nut 5/16-18 hex $0.99 9 usually ships 8-21 days
10 999-0181 Nut 1/4-20 hex jam plain finish $0.99 2 ships same day
11 183-0825 Nut 5/16-18 acorn (OBSOLETE) Call for price 2 usually ships 8-21 days
12 999-0187 Washer 1/2 flat plain finish $0.99 2 ships same day
13 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
14 999-0552 Bolt 5/16-18 x 1 1/2 hex head stainless steel $1.45 2 ships same day
15 183-0879 Tension spring $5.73 1 usually ships 8-21 days
16 183-0019 Acorn nut $1.30 3 usually ships 8-21 days
17 183-0020 Spacer $4.30 2 usually ships 8-21 days
18 183-0023 Outer channel $244.19 1 usually ships 8-21 days
19 183-9006 Cotter pin $1.30 2 usually ships 8-21 days
20 183-0032 Clevis pin $1.35 2 usually ships 8-21 days
21 183-0028 Wheel $5.72 2 usually ships 8-21 days
22 183-0929 Spacer 5/16 $8.76 2 usually ships 8-21 days
23 183-0954 Back up wheel bracket spacer plate Call for price 2 usually ships 8-21 days
24 183-0955 Handle pivot plate $9.36 2 usually ships 8-21 days
25 183-0956 Squeegee lift arm weldment $257.40 2 usually ships 8-21 days
26 183-1109 Handle and grip assembly $132.65 1 usually ships 8-21 days
27 183-0025 Retainer $189.19 1 usually ships 8-21 days
28 999-1176 Screw 1/4-20 x 2-1/4 hex head stainless steel $2.84 2 ships same day
29 999-1177 Screw 5/16-18 x 1 3/4 flat head socket stainless steel $1.17 2 ships same day
30 183-0024 Squeegee blade set 30 inch $143.18 2 ships same day
31 183-1146 Back up wheel mounting bracket $12.07 2 usually ships 8-21 days
32 183-0914 Hose (OBSOLETE) $124.56 1 usually ships 8-21 days
33 183-1147 Trot mop decal $2.01 1 usually ships 8-21 days
34 999-0566 Washer 1/2 flat nylon $0.99 4 ships same day
