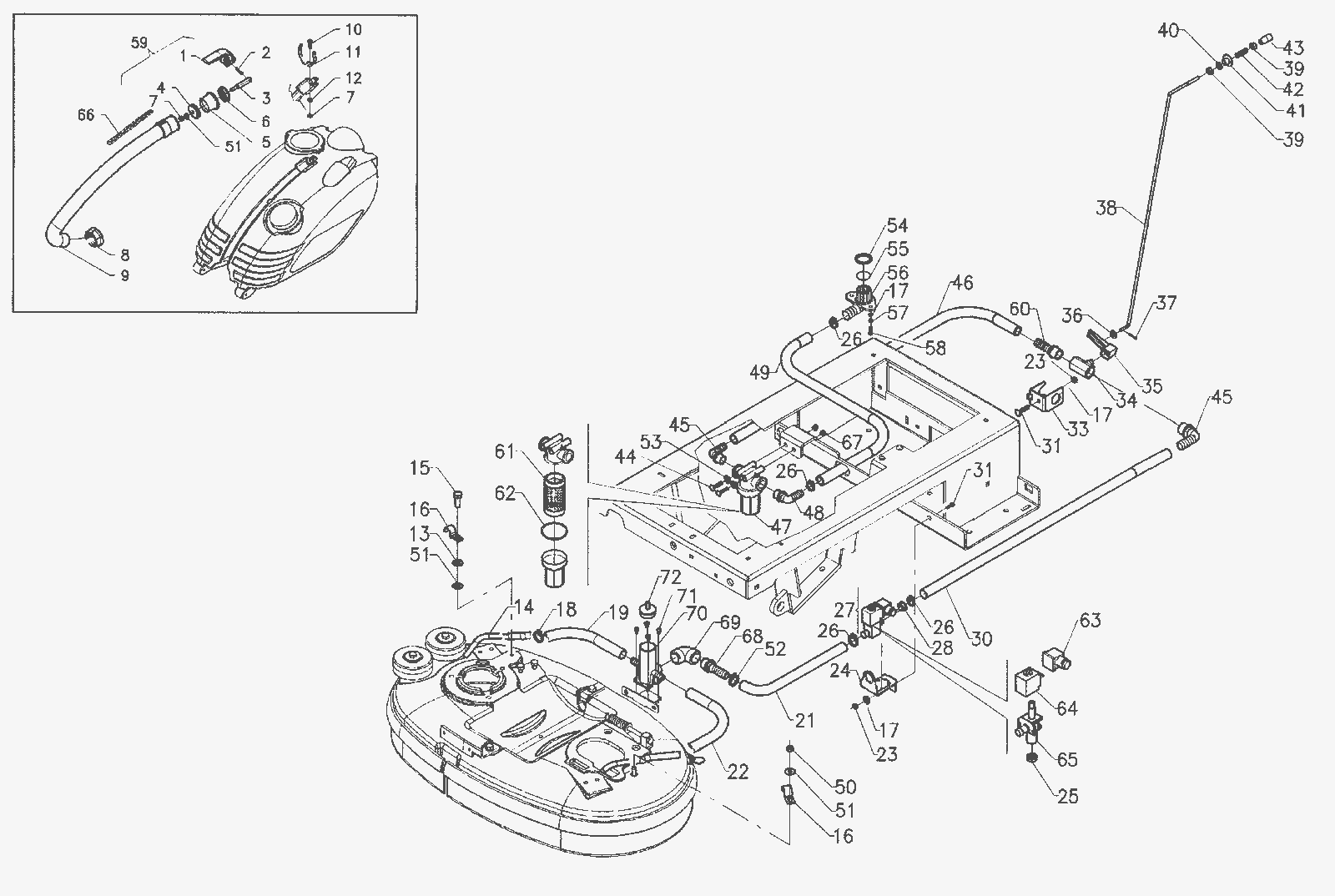

Water Unit Assembly

#PartDescription ReqNotesAvailability
1 183-8223 Drain plug lever 1
2 183-2509 Parallel pin inox 1
3 183-8218 Rod 1
4 183-8220 Drain plug cover 1
5 183-8222 Plug 1
6 183-8221 Drain plug 1
7 183-8229 Nut INOX 1
8 183-9239 Drain hose ring nut 1
9 183-9406 Drain hose 1
10 183-8227 Screw M6 x 25 1
11 183-8226 Spring 1
12 183-8228 Washer 1
13 183-2539 Lock washer 2
14 183-9407 Water outlet pipe 2
15 183-8432 Screw M6 x 12 2
16 183-2512 Hose clip 1
18 183-8241 Clamp 2
19 183-5177 Hose 1
21 183-9408 Hose M10 x 600mm 1
22 183-5177 Hose 1
23 183-8256 Nut 2
24 183-5178 Solenoid valve support 1
25 183-2270 Cap 1
26 183-2518 Hose clamp 4
27 183-2517 Solenoid valve assembly 1
28 183-8244 Collar 1
30 183-5179 Hose (OBSOLETE) 1
31 183-3162 Screw M6 x 20mm 1
33 183-9409 Solution valve support 1
34 183-2524 1/2 inch solution valve body 1
35 183-2154 Solution valve lever 1
36 183-8206 Washer 1
37 183-8323 Pin 1
38 183-9410 Solution valve control rod 1
39 183-8214 Nut 1
40 183-8334 Washer 1
41 183-8215 Solution control valve rod guide 1
42 183-8213 Spring 1
43 183-8212 Knob 1
44 183-8205 Screw 1
45 183-8202 Fitting 2
46 183-5179 Hose (OBSOLETE) 1
47 183-0897 Filter 1
48 183-8247 Fitting 1
49 183-5180 Hose (OBSOLETE) 1
50 183-8271 Nut INOX 1
51 183-8240 Washer INOX 1
52 183-7651 Hose clamp 1
53 183-8294 Washer 2
54 183-8239 Cover 1
55 183-8235 Gasket 1
56 183-8238 Fitting 1
57a 183-8523 Lock washer 2
57b 190-0269 Washer 1/4 spring lock 2
59 183-8197 Plug assembly 1 (includes 1-2, 4, and 7)
60 183-9245 Brass straight fitting 1
61 183-8224 Filter cartridge 1
62 183-8225 Filter gasket 1
63 183-8198 Square connector 1
64 183-8230 Solenoid valve coil 1
65 183-2522 Solenod valve body 1
66 183-8232 Chain 1
67 183-5181 Lock nut 2
68 183-5182 Straight fitting 1
69 183-9253 90 degree elbow fitting 1
70 183-5183 Distributor 1
71 183-9411 Screw M4 x 8 mm 4
72 183-5184 Cover 1
