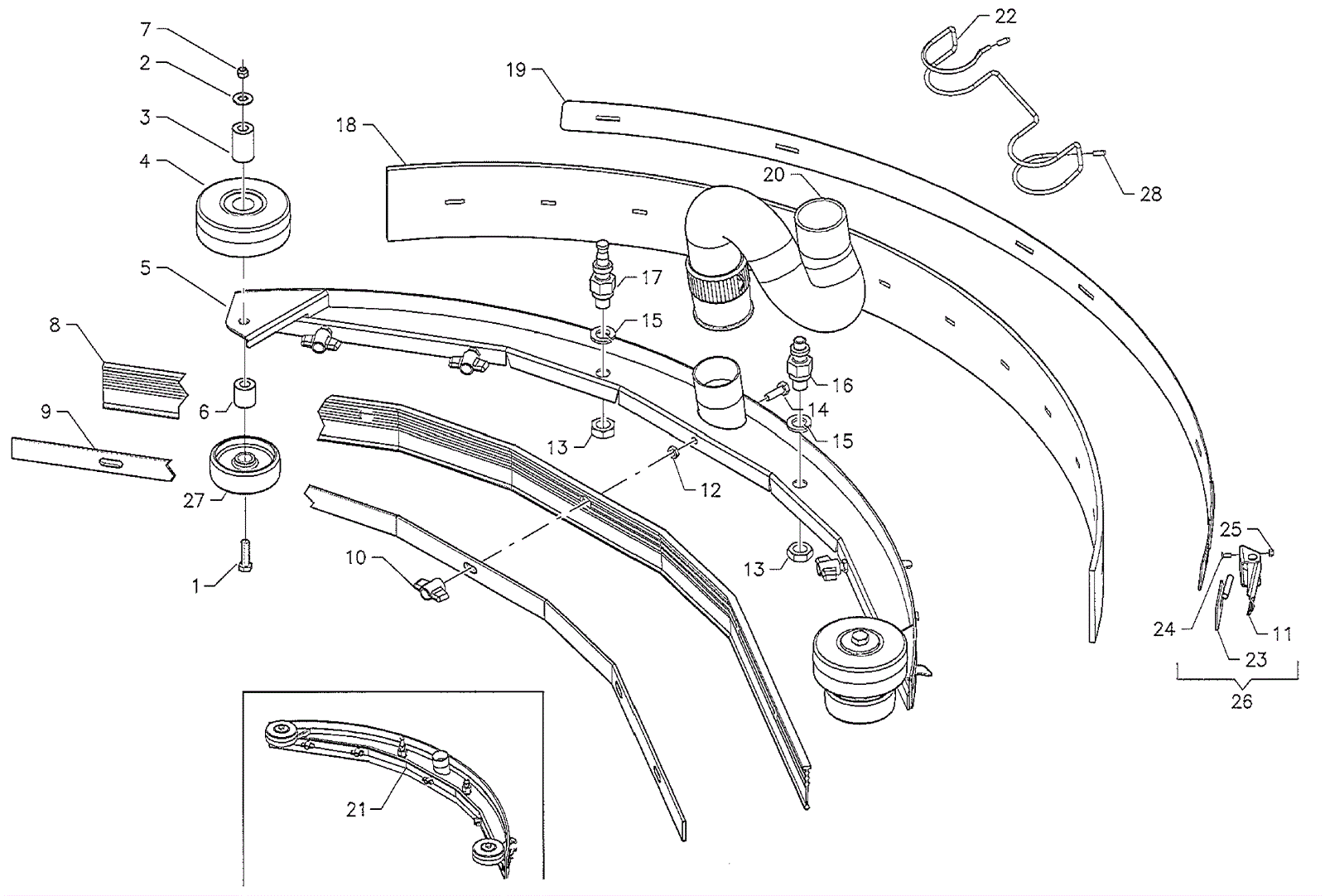

BD 32/26 Squeegee Assembly Up To S/N 14002020

#PartDescriptionPriceReqNotesAvailability
2 183-2451 Washer inox $1.35 2 usually ships 8-21 days
3 183-8498 Bushing $8.60 2 usually ships 8-21 days
4 183-4706 Bumper wheel $9.59 2 usually ships 8-21 days
5 183-9312 Squeegee body (iron) $361.56 1 usually ships 8-21 days
6 183-9133 Bushing $10.40 2 usually ships 8-21 days
8 183-9313 Squeegee blade front $49.79 1 usually ships 8-21 days
10 183-2305 Wing nut $4.66 5 usually ships 8-21 days
11 183-8504 Lever $28.89 1 usually ships 8-21 days
12 183-8214 Nut $1.35 5 usually ships 8-21 days
13 183-9135 Nut $1.35 2 usually ships 8-21 days
14 183-8319 Screw M6 x 18 $1.35 4 usually ships 8-21 days
15 183-9136 Lock washer $1.35 2 usually ships 8-21 days
16 183-8501 Bolt $31.44 1 usually ships 8-21 days
17 183-5166 Right hand stud bolt (OBSOLETE) Call for price 1 usually ships 8-21 days
18 183-9314 Squeegee blade rear $86.50 1 usually ships 8-21 days
19 183-9315 Squeegee blade rear $71.25 1 usually ships 8-21 days
20 183-9391 Squeegee hose M38.2 x 1680mm $54.40 1 usually ships 8-21 days
21 183-9392 Squeegee assembly (OBSOLETE) $728.20 1 usually ships 8-21 days
22 183-8508 Spring $13.05 1 usually ships 8-21 days
23 183-8505 Adjustment bracket $16.12 1 usually ships 8-21 days
24 183-8506 Screw $1.35 2 usually ships 8-21 days
25 183-2463 Lock nut inox $2.24 2 usually ships 8-21 days
26 183-9318 Blade assembly rear $118.06 1 (includes 11, 23-25) usually ships 8-21 days
27 183-9132 Bumper wheel $19.48 2 usually ships 8-21 days
28 183-2465 Cap $1.35 2 usually ships 8-21 days
