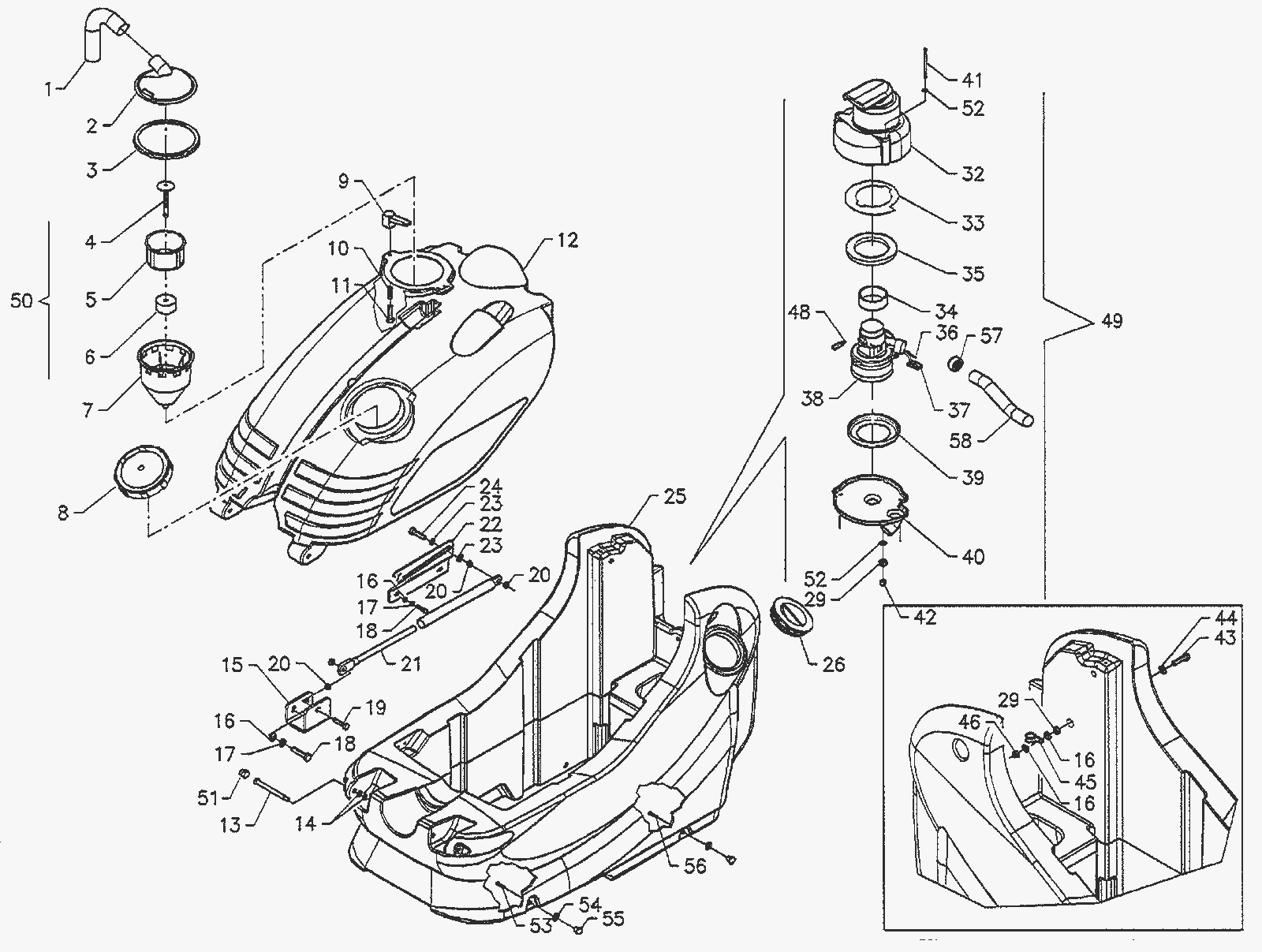

Tanks and Suction Assembly Up To S/N 09000937

#PartDescription ReqNotesAvailability
1 183-9387 Vacuum hose M38.2 x 800mm 1
2 183-8446 Cap 1
3 183-4699 Recovery tank lid gasket 1
4 183-2138 Rod with plate 1
5 183-2139 Float filter 1
6 183-2147 Float 1
7 183-2140 Protection filter 1
8 183-9376 Inspection cap (OBSOLETE) 1
9 183-8447 Lever 2
10 183-8448 Spring 2
11 183-8290 Screw M6 x 30 2
12 183-5147 Recovery tank (yellow) (OBSOLETE) 1
13 183-5148 Recovery tank pin (OBSOLETE) 2
14 183-5162 Washer (OBSOLETE) 1
15 183-5150 Gas shock absorber support (OBSOLETE) 1
17 183-2539 Lock washer 1
19 183-9329 Screw M8 x 30mm 1
21 183-5151 Gas shock absorber (OBSOLETE) 1
22 183-5152 Gas shock absorber guide (OBSOLETE) 1
23 183-8294 Washer 2
24 183-2546 Screw M8 x 35mm 1
25 183-9383 Solution tank black 1
26 183-8455 Solution tank cap 1
29 183-8214 Nut 5
32 183-9378 Vacuum motor casing 1
33 183-8465 Protection ring 1
34 183-8476 Ring 1
35 183-9379 Vibration dampener 1
36 183-8468 Connector 2
37 183-8469 30amp Connector (red) 2
38 183-9385 Vacuum motor 1
39 183-8471 Vacuum motor gasket 1
40 183-8492 Vacuum motor base 1
41 183-9388 Stud bolt M6 x 150mm 5
42 183-8392 Nut 5
43 183-8524 Screw M6 x 25 1
44 183-8228 Washer 1
45 183-9381 Collar for sheath 1
46 183-9389 Lock nut (OBSOLETE) 1
48 183-8473 Carbon brush 2
49 183-5163 Suction motor casing assembly (OBSOLETE) 1 (includes 29, 32-42, 48, 52, 57-58)
50 183-8479 Filter and float assembly 1 (includes 4-7)
51 183-9210 Black nut cover 2
53 183-5157 Screw M8 x 75mm (OBSOLETE) 1
54 183-9214 Conical washer 1
55 183-9215 Bushing 4
56 183-5158 Screw M8 x 65mm (OBSOLETE) 1
57 183-3236 Coupling 1
58 183-9390 Hose M32 x 1150mm 1
