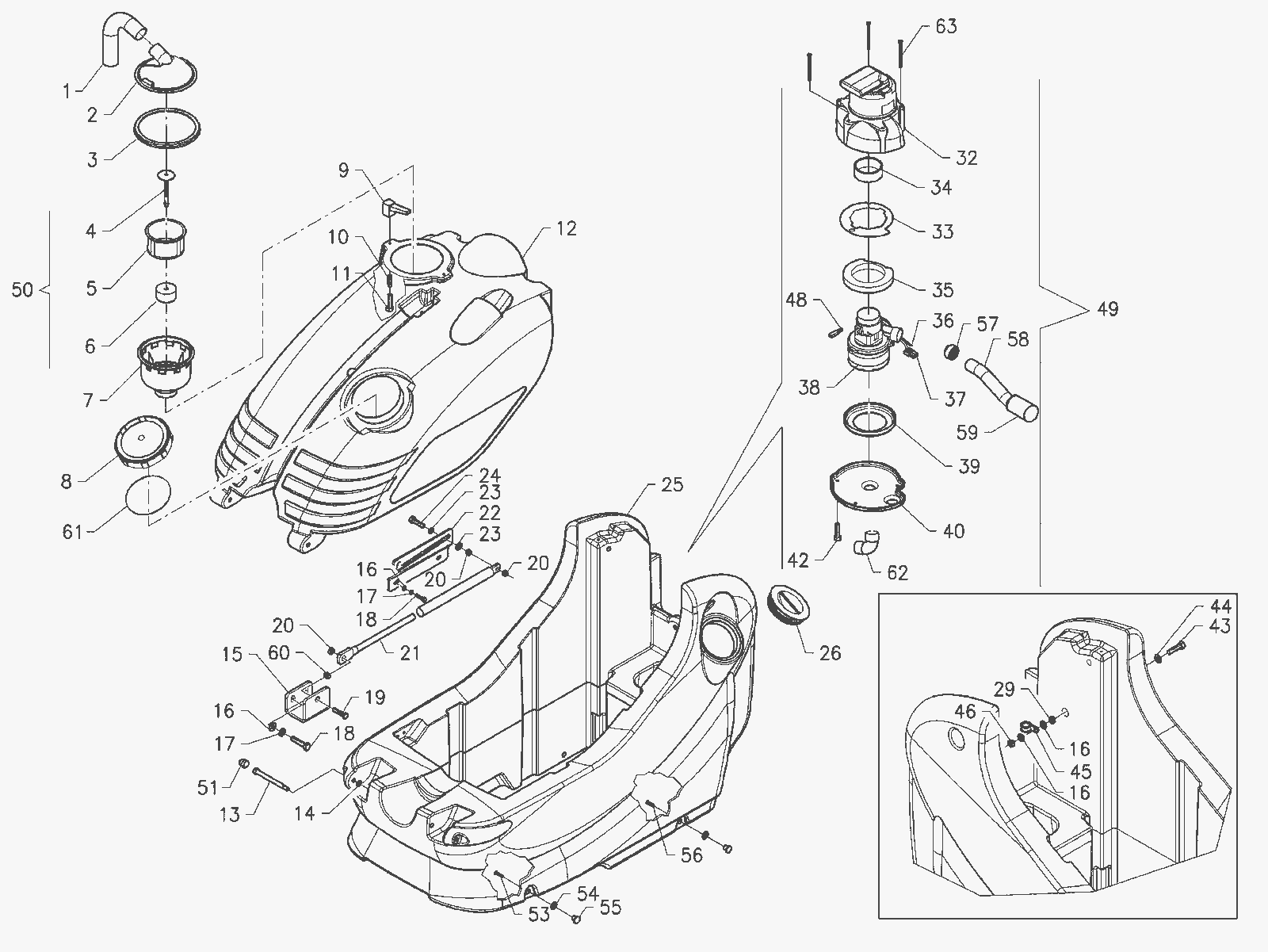

BD 32/26 Tanks and Suction Assembly S/N 09000938-17005111

#PartDescriptionPriceReqNotesAvailability
1 183-5146 Vacuum hose (OBSOLETE) Call for price 1 usually ships 8-21 days
2a 183-8489 Filter $38.52 1 usually ships 8-21 days
2b 183-8446 Cap $20.15 1 usually ships 8-21 days
3 183-4699 Recovery tank lid gasket $16.93 1 usually ships 8-21 days
4 183-2138 Rod with plate $4.87 1 usually ships 8-21 days
5 183-2139 Float filter $6.71 1 usually ships 8-21 days
6 183-2147 Float $4.90 1 usually ships 8-21 days
7 183-2140 Protection filter $8.03 1 usually ships 8-21 days
8 183-9376 Inspection cap $18.54 1 usually ships 8-21 days
9 183-8447 Lever $8.76 2 usually ships 8-21 days
10 183-8448 Spring $2.59 2 usually ships 8-21 days
11 183-8290 Screw M6 x 30 $1.35 2 usually ships 8-21 days
12 183-5147 Recovery tank (yellow) (OBSOLETE) Call for price 1 usually ships 8-21 days
13 183-5148 Recovery tank pin (OBSOLETE) Call for price 2 usually ships 8-21 days
14 183-5149 Washer (OBSOLETE) Call for price 2 usually ships 8-21 days
15 183-5150 Gas shock absorber support (OBSOLETE) Call for price 1 usually ships 8-21 days
17 183-2539 Lock washer $1.35 4 usually ships 8-21 days
19 183-9329 Screw M8 x 30mm $1.35 1 usually ships 8-21 days
21 183-5151 Gas shock absorber (OBSOLETE) Call for price 1 usually ships 8-21 days
22 183-5152 Gas shock absorber guide (OBSOLETE) Call for price 1 usually ships 8-21 days
23 183-8294 Washer $1.35 2 usually ships 8-21 days
24 183-2546 Screw M8 x 35mm $1.35 1 usually ships 8-21 days
25 183-9383 Solution tank black $1,030.59 1 usually ships 8-21 days
26 183-8455 Solution tank cap $8.14 1 usually ships 8-21 days
29 183-8214 Nut $1.35 1 usually ships 8-21 days
32 183-9378 Vacuum motor casing $157.17 1 usually ships 8-21 days
33 183-8465 Protection ring $11.15 1 usually ships 8-21 days
34 183-8476 Ring $4.55 1 usually ships 8-21 days
35 183-9384 Vibration dampener $6.42 1 usually ships 8-21 days
36 183-8468 Connector $2.33 2 usually ships 8-21 days
37 183-8469 30amp Connector (red) $2.99 2 usually ships 8-21 days
38 183-9385 Vacuum motor $836.89 1 usually ships 8-21 days
39 183-8471 Vacuum motor gasket $16.67 1 usually ships 8-21 days
40 183-9386 Motor base and insert $88.70 1 usually ships 8-21 days
42 183-8292 Screw M6 x 20 $1.35 5 usually ships 8-21 days
43 183-8524 Screw M6 x 25 $1.35 1 usually ships 8-21 days
44 183-8228 Washer $1.35 1 usually ships 8-21 days
45 183-9381 Collar for sheath $11.96 1 usually ships 8-21 days
46 183-8256 Nut $1.35 1 usually ships 8-21 days
48 183-8473 Carbon brush $37.26 2 usually ships 8-21 days
49 183-5156 Vacuum motor and casing assembly $1,016.26 1 (includes 32-40, 42, 48, 57-59, 62-63) usually ships 8-21 days
50 183-8479 Filter and float assembly $24.16 1 (includes 4-7) ships same day
51 183-9210 Black nut cover $1.35 2 usually ships 8-21 days
53 183-5157 Screw M8 x 75mm (OBSOLETE) Call for price 2 usually ships 8-21 days
54 183-9214 Conical washer $1.38 4 usually ships 8-21 days
55 183-9215 Bushing $23.47 4 usually ships 8-21 days
56 183-5158 Screw M8 x 65mm (OBSOLETE) Call for price 2 usually ships 8-21 days
57 183-3236 Coupling $5.50 1 usually ships 8-21 days
58 183-5159 Hose (OBSOLETE) Call for price 1 usually ships 8-21 days
59 183-5160 Deading hose (OBSOLETE) Call for price 1 usually ships 8-21 days
61 183-5161 Inspection cap gasket $21.95 1 usually ships 8-21 days
62 183-8480 Fitting $24.99 1 ships same day
63 183-9382 Screw M6 x 130mm $2.84 3 usually ships 8-21 days
