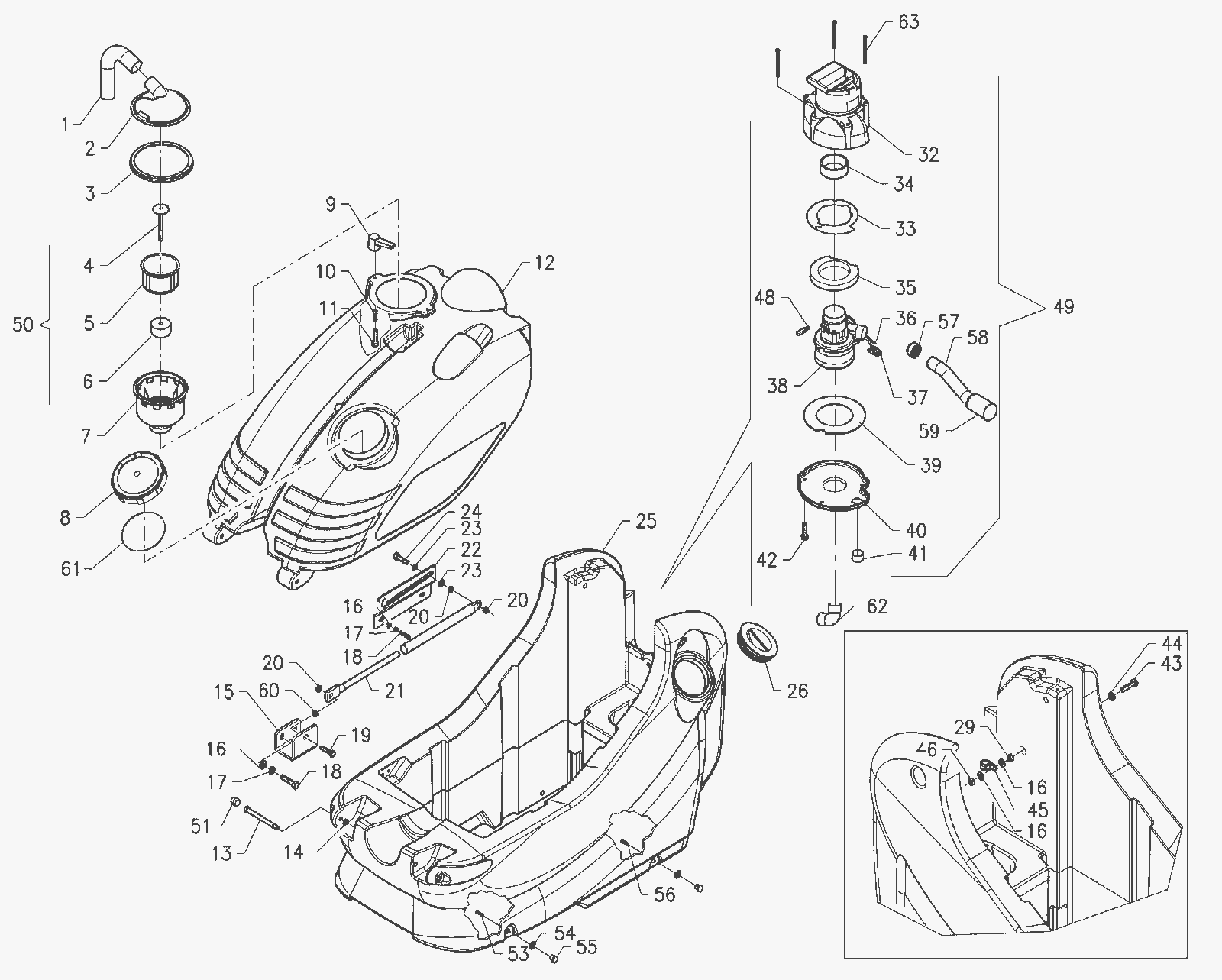

Tanks and Suction Assembly S/N 17005112-18003017

#PartDescription ReqNotesAvailability
1 183-5146 Vacuum hose (OBSOLETE) 1
2a 183-8489 Filter 1
2b 183-8446 Cap 1
3 183-4699 Recovery tank lid gasket 1
4 183-2138 Rod with plate 1
5 183-2139 Float filter 1
6 183-2147 Float 1
7 183-2140 Protection filter 1
8 183-9376 Inspection cap (OBSOLETE) 1
9 183-8447 Lever 2
10 183-8448 Spring 2
11 183-8290 Screw M6 x 30 2
12 183-5147 Recovery tank (yellow) (OBSOLETE) 1
13 183-5148 Recovery tank pin (OBSOLETE) 2
14 183-5149 Washer (OBSOLETE) 2
15 183-5150 Gas shock absorber support (OBSOLETE) 1
17a 183-8523 Lock washer 4
17b 190-0269 Washer 1/4 spring lock 4
19 183-9329 Screw M8 x 30mm 1
21 183-5151 Gas shock absorber (OBSOLETE) 1
22 183-5152 Gas shock absorber guide (OBSOLETE) 1
23 183-8294 Washer 2
24 183-2546 Screw M8 x 35mm 1
25 183-9383 Solution tank black 1
26 183-8455 Solution tank cap 1
29 183-8214 Nut 1
32 183-9378 Vacuum motor casing 1
33 183-8465 Protection ring 1
34 183-8476 Ring 1
35 183-9379 Vibration dampener 1
36 183-8468 Connector 2
37 183-8469 30amp Connector (red) 2
38 183-5153 Vacuum motor 1
39 183-9379 Vibration dampener 1
40 183-5154 Vacuum motor base and insert (OBSOLETE) 1
41 183-9380 Cap 1
42 183-8292 Screw M6 x 20 5
43 183-8524 Screw M6 x 25 1
44 183-8228 Washer 1
45 183-9381 Collar for sheath 1
46 183-8256 Nut 1
48 183-5155 Carbon brush (OBSOLETE) 2
49 183-5156 Vacuum motor and casing assembly 1 (includes 32-42, 48, 57-59, 62-63)
50 183-8479 Filter and float assembly 1 (includes 4 - 7)
51 183-9210 Black nut cover 2
53 183-5157 Screw M8 x 75mm (OBSOLETE) 2
54 183-9214 Conical washer 4
55 183-9215 Bushing 4
56 183-5158 Screw M8 x 65mm (OBSOLETE) 2
57 183-3236 Coupling 1
58 183-5159 Hose (OBSOLETE) 1
59 183-5160 Deading hose (OBSOLETE) 1
61 183-5161 Inspection cap gasket 1
62 183-8480 Fitting 1
63 183-9382 Screw M6 x 130mm 3
