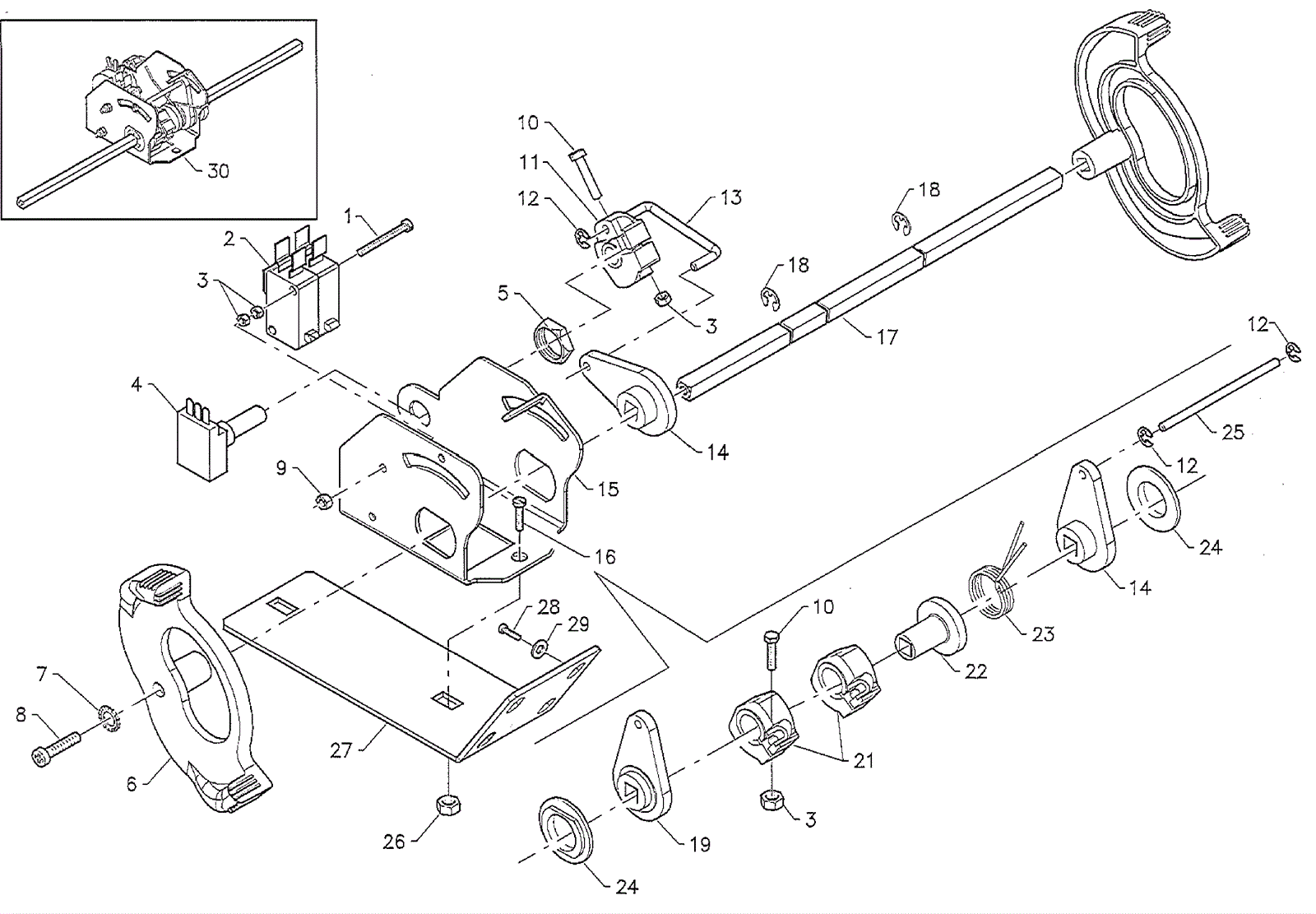

Traction Control Assembly

#PartDescription ReqNotesAvailability
1 183-9276 Screw M3 x 35mm 1
2 183-4712 10amp microswitch 2
3 183-8352 Nut 1
4 183-9277 2.5K potentioneter 1
5 183-9278 Potentiometer nut 1
6 183-8339 Lever 2
7 183-8338 Washer 1
8 183-8337 Screw M3 x 10 1
9 183-8357 Nut 1
10 183-8350 Screw 1
11 183-9279 Potentiometer level 1
12 183-8354 Ring 4
13 183-9280 Drive control tie rod 1
14 183-8353 Lever 2
15 183-8344 Bracket 1
16 183-8330 Screw M5 x 8 1
17 183-9373 Camshaft 1
18 183-8343 Ring 3
19 183-8348 Lever 1
21 183-9281 Micro cam drive control 2
22 183-8351 Bushing 1
23 183-8346 Spring 1
24 183-8347 Bushing 2
25 183-8355 Spring 1
26 183-8314 Nut 1
28 183-9374 Screw M4.8 x 16mm 1
29 183-8393 Washer 1
30 183-9375 Drive control assembly 1
