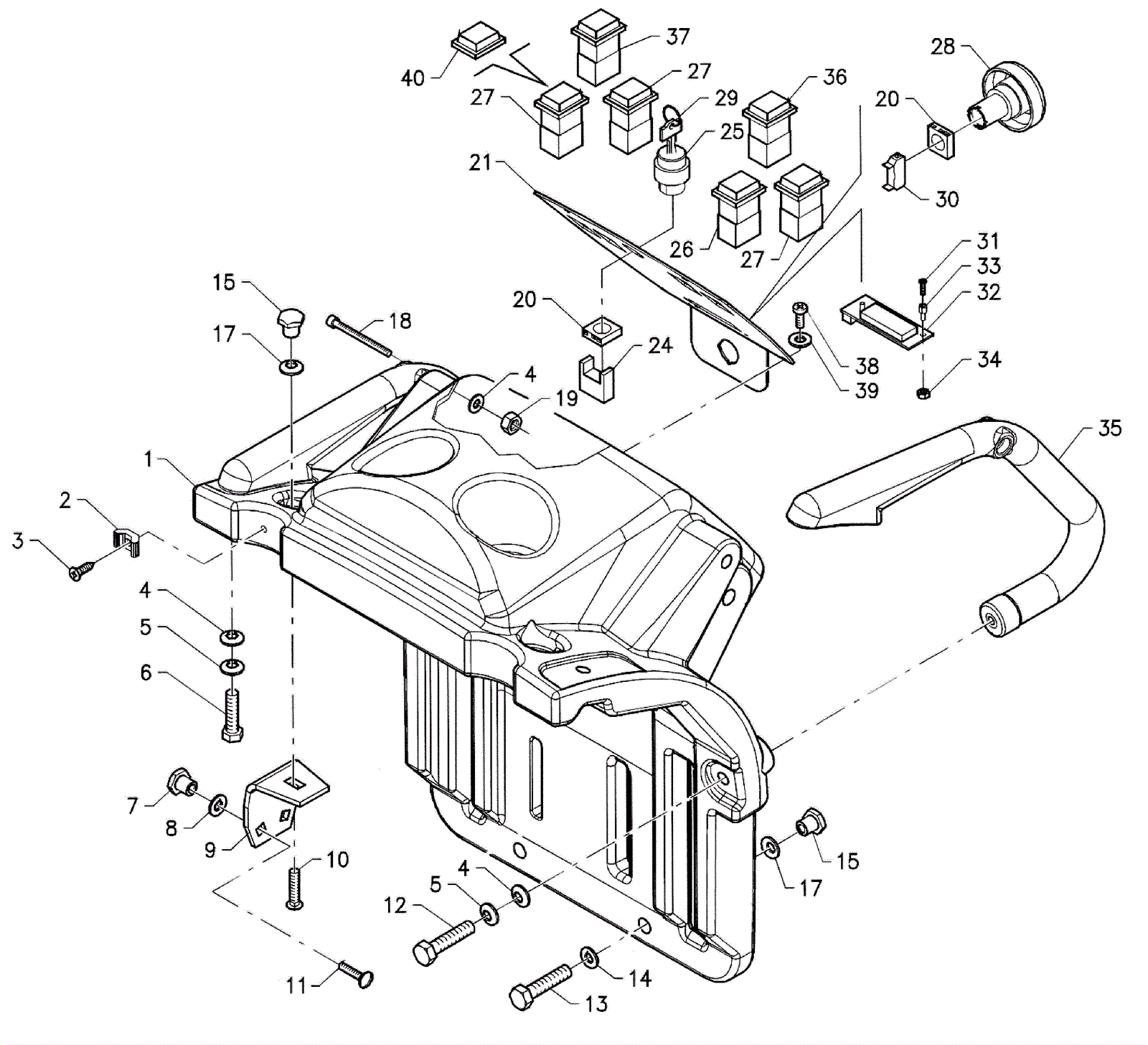

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
183-5136
|
Instrument board (OBSOLETE) |
1 |
|
|
2 |
183-8454
|
Saddle support |
2 |
|
|
3 |
183-8494
|
Screw M5.2 x 19 (OBSOLETE) |
2 |
|
|
4 |
183-8294
|
Washer |
6 |
|
|
5 |
183-9352
|
Lock washer |
4 |
|
|
6 |
183-2556
|
Screw M8 x 40mm |
2 |
|
|
7 |
183-9215
|
Bushing |
2 |
|
|
8 |
183-9214
|
Conical washer |
2 |
|
|
9 |
183-5137
|
Instrument board support (OBSOLETE) |
2 |
|
|
10 |
183-5138
|
Screw M8 x 35mm (OBSOLETE) |
2 |
|
|
11 |
183-5139
|
Screw M8 x 55mm |
2 |
|
|
12 |
183-9360
|
Screw M8 x 60mm |
2 |
|
|
13 |
183-8496
|
Screw M8 x 45 |
2 |
|
|
15 |
183-9215
|
Bushing |
4 |
|
|
17 |
183-9214
|
Conical washer |
4 |
|
|
18 |
183-5140
|
Screw M8 x 100mm (OBSOLETE) |
2 |
|
|
20 |
183-8372
|
Switch flange |
2 |
|
|
21 |
183-9361
|
Control panel |
1 |
(order with 183-9361 decal) |
|
24 |
183-8373
|
Switch contact |
1 |
|
|
25 |
183-4695
|
Key switch |
1 |
|
|
26 |
183-9362
|
Protected signal lamp (red) |
1 |
|
|
27 |
183-4697
|
Protected switch (green) |
3 |
|
|
28 |
183-9363
|
Push button |
1 |
|
|
29 |
183-4696
|
Key |
1 |
|
|
30 |
183-9364
|
Push button contact |
1 |
|
|
31 |
183-5141
|
Screw M3 x 5mm (OBSOLETE) |
2 |
|
|
32 |
183-8356
|
Battery display |
1 |
|
|
33 |
183-5142
|
Display holder stud bolt (OBSOLETE) |
2 |
|
|
34 |
183-8386
|
Nylon nut |
2 |
|
|
35 |
183-9365
|
Handlebar |
2 |
|
|
36 |
183-9366
|
Protected switch (green) |
1 |
|
|
37 |
183-9367
|
Protected switch (yellow) |
1 |
|
|
38 |
183-2430
|
Screw M5 x 14mm |
4 |
|
|
39 |
183-8374
|
Washer |
4 |
|
|
40 |
183-8385
|
Cap |
6 |
|
|
