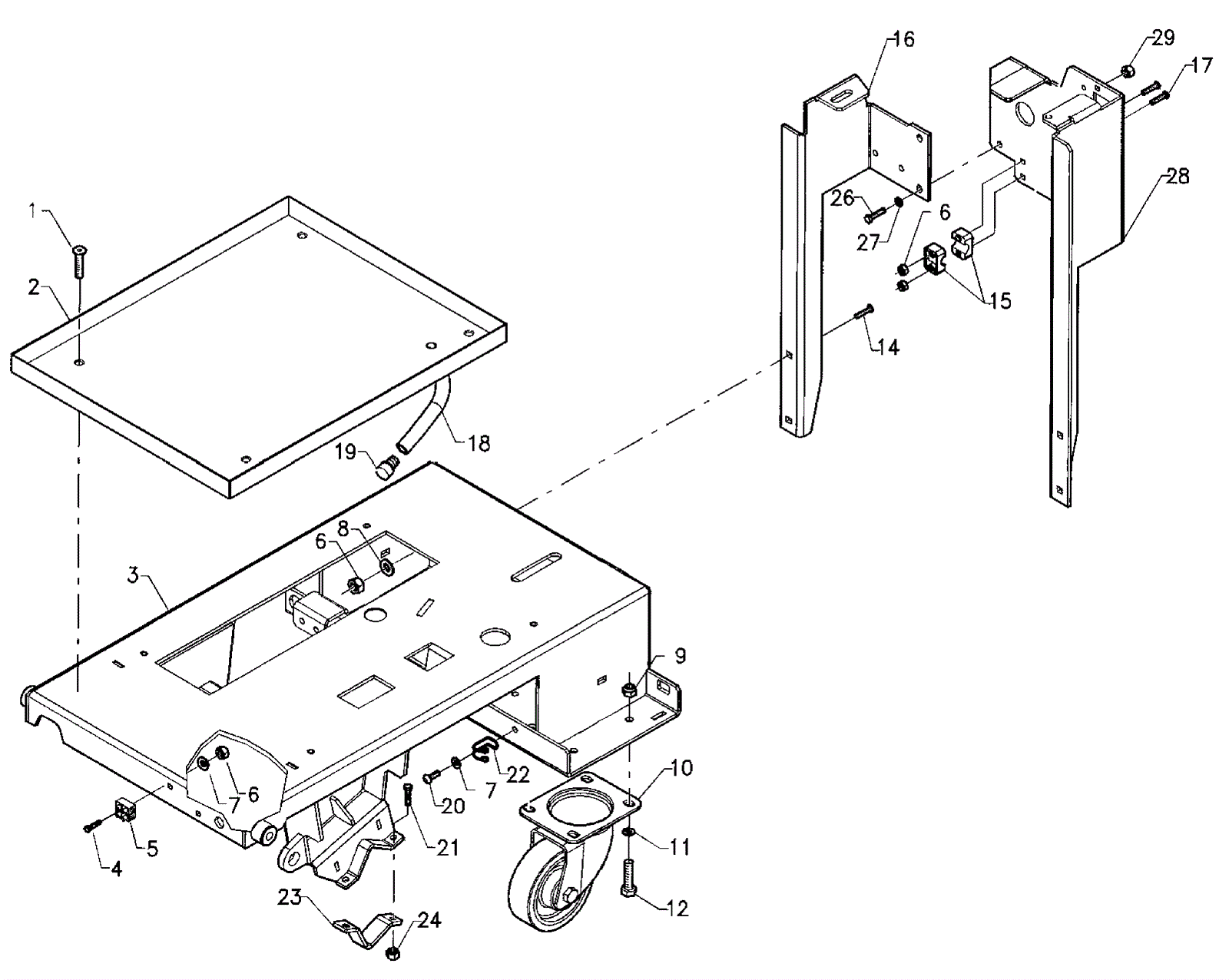

Frame Assembly From S/N 12002037

#PartDescription ReqNotesAvailability
1 183-8402 Screw M6 x 16 4
2a 183-9321 Battery tray 1 (up to S/N 13000744)
2b 183-5124 Battery tray (OBSOLETE) 1 (from S/N 13000745)
3 183-5125 Frame (OBSOLETE) 1
4 183-9351 Screw M6 x 35mm 1
5 183-9322 Terminal board 2
6 183-8256 Nut 1
8 183-8294 Washer 2
9 183-8424 Nut 4
10 183-9323 Caster wheel M125 x 40mm 8
11 183-9324 Washer 2
12 183-9325 Screw M10 x 25mm 8
14 183-9129 Screw M8 x 25mm 8
15 183-8428 Pivot block 4
16 183-5126 Right hand rear frame (OBSOLETE) 2
17 183-5127 Screw M6 x 45mm (OBSOLETE) 1
18 183-9326 Hose M13 x 160mm 4
19 183-9327 Cap 1
20 183-9328 Screw M6 x 18mm 1
21 183-9329 Screw M8 x 30mm 1
22 183-9330 Coupling spring 4
23 183-5128 Strap (OBSOLETE) 1
24 183-8404 Nut 2
26 183-8300 Screw M8 x 25 4
27 183-8294 Washer 2
28 183-5129 Left hand rear frame (OBSOLETE) 1
