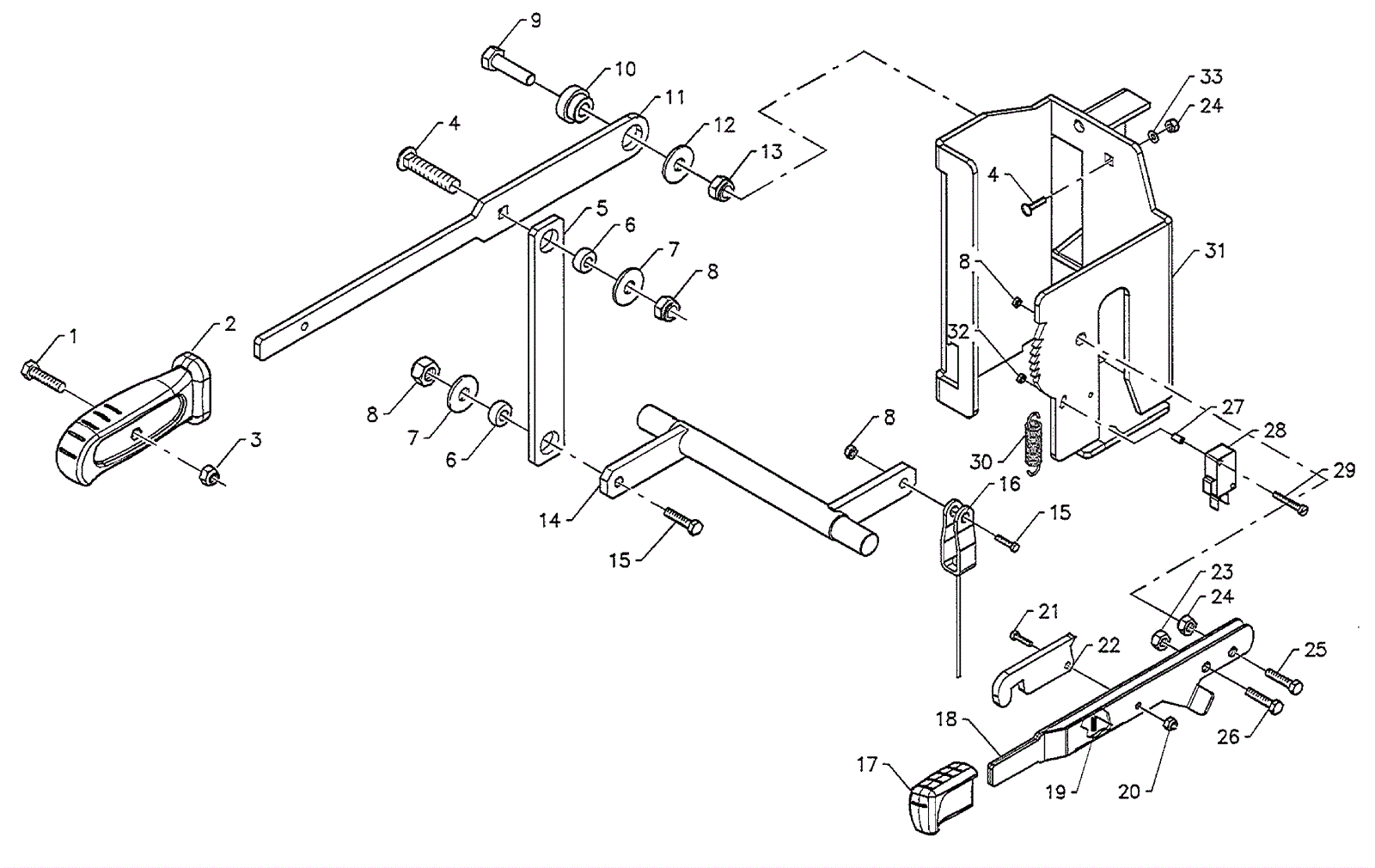

BD 32/26 Control Level Assembly Up To S/N 09000355

#PartDescriptionPriceReqNotesAvailability
1 183-2429 Screw M4 x 16mm $1.35 1 usually ships 8-21 days
2 183-9340 Squeegee control knob $9.38 1 usually ships 8-21 days
3 183-5114 Nut (OBSOLETE) Call for price 1 usually ships 8-21 days
4 183-3162 Screw M6 x 20mm $1.35 4 usually ships 8-21 days
5 183-5107 Squeegee control rod (OBSOLETE) Call for price 1 usually ships 8-21 days
6 183-5108 Bushing (OBSOLETE) Call for price 2 usually ships 8-21 days
7 183-8334 Washer $1.35 2 usually ships 8-21 days
8 183-8256 Nut $1.35 4 usually ships 8-21 days
9 183-9329 Screw M8 x 30mm $1.35 1 usually ships 8-21 days
10 183-5109 Bushing (OBSOLETE) Call for price 1 usually ships 8-21 days
11 183-9341 Squeegee control lever $25.36 1 usually ships 8-21 days
12 183-8294 Washer $1.35 1 usually ships 8-21 days
14 183-5110 Squeegee lift shaft (OBSOLETE) Call for price 1 usually ships 8-21 days
15 183-8292 Screw M6 x 20 $1.35 1 usually ships 8-21 days
16 183-9342 Rope with two terminals $22.78 11 usually ships 8-21 days
17 183-9166 Brake control knob $3.66 1 usually ships 8-21 days
18 183-5111 Brake lever (OBSOLETE) Call for price 1 usually ships 8-21 days
19 183-9167 Compression spring $3.77 1 usually ships 8-21 days
20 183-2590 Nut $1.35 1 usually ships 8-21 days
21 183-2437 Screw M4 x 14mm $1.35 1 usually ships 8-21 days
22 183-9168 Blocking lever $4.94 1 usually ships 8-21 days
24 183-8256 Nut $1.35 1 usually ships 8-21 days
25 183-8512 Screw M6 x 25 $1.35 1 usually ships 8-21 days
26 183-2473 Screw M8 x 20mm $1.35 1 usually ships 8-21 days
27 183-8211 Spacer $1.35 1 usually ships 8-21 days
28 183-9170 10amp microswitch $10.86 1 usually ships 8-21 days
29 183-8345 Screw M3 x 25 $1.35 2 usually ships 8-21 days
30 183-2633 Traction spring $11.96 1 usually ships 8-21 days
31 183-5112 Lever support plate (OBSOLETE) Call for price 1 usually ships 8-21 days
32 183-8357 Nut $1.35 2 usually ships 8-21 days
