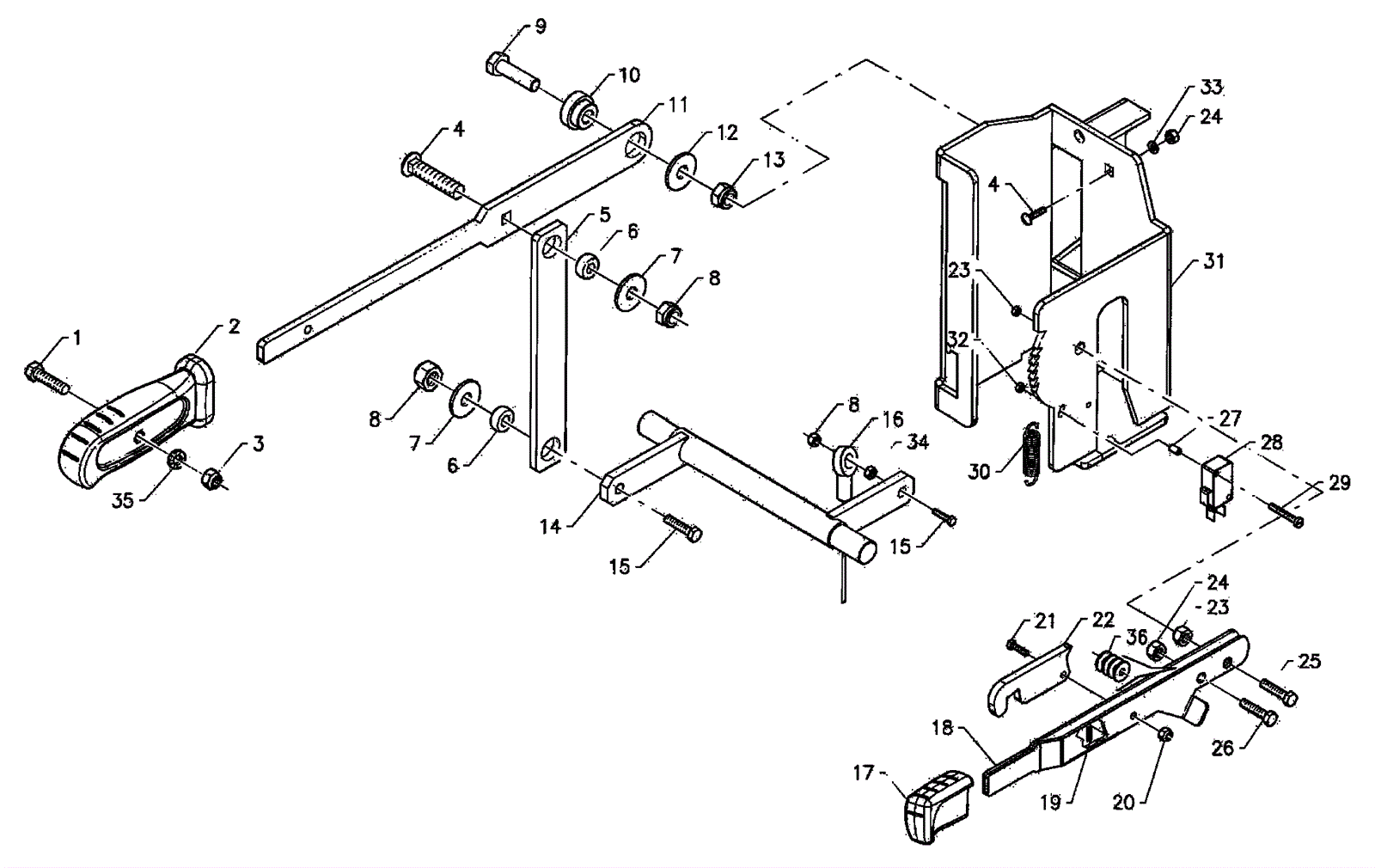

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
183-2429
|
Screw M4 x 16mm |
1 |
|
|
2 |
183-9340
|
Squeegee control knob |
1 |
|
|
3 |
183-2439
|
Nut |
1 |
|
|
4 |
183-3162
|
Screw M6 x 20mm |
4 |
|
|
5 |
183-5107
|
Squeegee control rod (OBSOLETE) |
1 |
|
|
6 |
183-5108
|
Bushing (OBSOLETE) |
2 |
|
|
7 |
183-8334
|
Washer |
2 |
|
|
8 |
183-8256
|
Nut |
3 |
|
|
9 |
183-9329
|
Screw M8 x 30mm |
1 |
|
|
10 |
183-5109
|
Bushing (OBSOLETE) |
1 |
|
|
11 |
183-9341
|
Squeegee control lever |
1 |
|
|
12 |
183-8294
|
Washer |
1 |
|
|
14 |
183-5110
|
Squeegee lift shaft (OBSOLETE) |
1 |
|
|
15 |
183-8512
|
Screw M6 x 25 |
2 |
|
|
16 |
183-9342
|
Rope with two terminals |
1 |
|
|
17 |
183-9166
|
Brake control knob |
1 |
|
|
18 |
183-5111
|
Brake lever (OBSOLETE) |
1 |
|
|
19 |
183-9167
|
Compression spring |
1 |
|
|
20 |
183-2590
|
Nut |
1 |
|
|
21 |
183-2437
|
Screw M4 x 14mm |
1 |
|
|
22 |
183-9168
|
Blocking lever |
1 |
|
|
24 |
183-8256
|
Nut |
4 |
|
|
25 |
183-8512
|
Screw M6 x 25 |
1 |
|
|
26 |
183-2473
|
Screw M8 x 20mm |
1 |
|
|
27 |
183-8211
|
Spacer |
1 |
|
|
28 |
183-9170
|
10amp microswitch |
1 |
|
|
29 |
183-8345
|
Screw M3 x 25 |
2 |
|
|
30 |
183-2633
|
Traction spring |
1 |
|
|
31 |
183-5112
|
Lever support plate (OBSOLETE) |
1 |
|
|
32 |
183-8357
|
Nut |
2 |
|
|
34 |
183-8214
|
Nut |
1 |
|
|
35 |
183-8365
|
Washer |
1 |
|
|
36 |
183-5113
|
Shim (OBSOLETE) |
4 |
|
|
