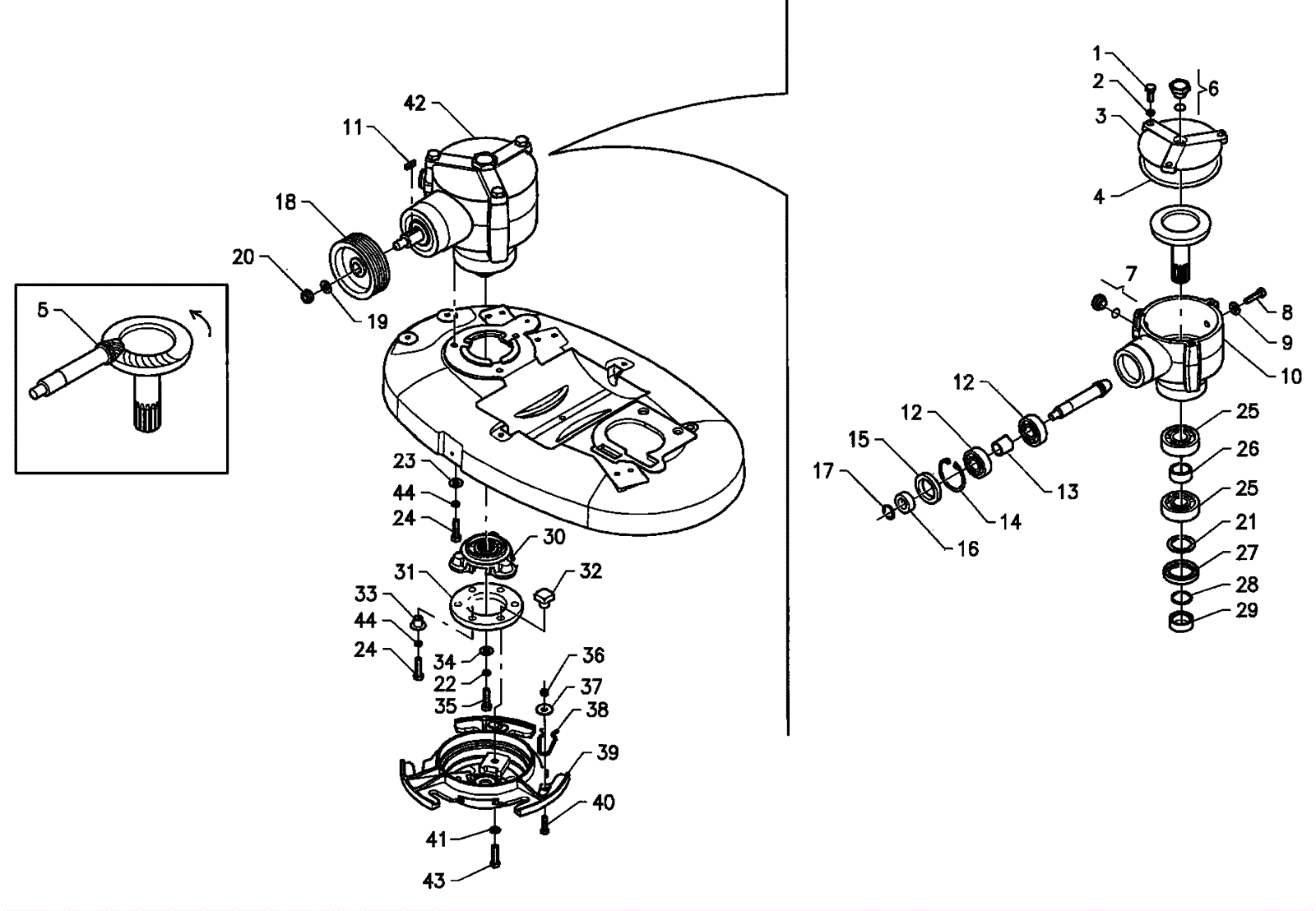

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
183-8300
|
Screw M8 x 25 |
3 |
|
|
3 |
183-2474
|
Reduction gear box cover |
1 |
|
|
4 |
183-2475
|
O-ring |
1 |
|
|
5 |
183-9337
|
Right hand bevel gear (pkg of 2) |
1 |
|
|
6 |
183-2476
|
Cap with breather |
1 |
|
|
7 |
183-2480
|
Oil level plug |
1 |
|
|
8 |
183-2479
|
Screw M10 x 20mm |
1 |
|
|
9 |
183-2478
|
Washer aluminium |
1 |
|
|
10 |
183-2477
|
Reduction gear box |
1 |
|
|
11 |
183-8521
|
Key |
1 |
|
|
12 |
183-2492
|
Bearing |
2 |
|
|
13 |
183-2493
|
Spacer |
1 |
|
|
14 |
183-2494
|
Seeger ring |
1 |
|
|
15 |
183-2495
|
Oil seal |
1 |
|
|
16 |
183-2496
|
Spacer |
1 |
|
|
17 |
183-2497
|
O-ring |
1 |
|
|
18 |
183-9338
|
Driven pulley |
1 |
|
|
19 |
183-2504
|
Washer |
1 |
|
|
20 |
183-8424
|
Nut |
1 |
|
|
21 |
183-2503
|
Shim (OBSOLETE) |
1 |
|
|
22 |
183-2454
|
Lock washer inox |
1 |
|
|
24 |
183-9104
|
Screw M8 x 30mm INOX |
6 |
|
|
25 |
183-2482
|
Bearing |
2 |
|
|
26 |
183-2483
|
Spacer |
1 |
|
|
27 |
183-2484
|
Oil seal |
1 |
|
|
28 |
183-2485
|
O-ring |
1 |
|
|
29 |
183-2486
|
Spacer |
1 |
|
|
30 |
183-2487
|
Reduction gear flange |
1 |
|
|
31 |
183-1999
|
Flexible coupling |
1 |
|
|
32 |
183-1998
|
Bushing |
3 |
|
|
33 |
183-9115
|
Bushing |
3 |
|
|
34 |
183-9124
|
Washer |
1 |
|
|
35 |
183-2489
|
Screw M10 x 20mm |
1 |
|
|
36 |
183-8271
|
Nut INOX |
1 |
|
|
38 |
183-2490
|
Brush block spring |
1 |
|
|
39 |
183-4721
|
Clutch plate |
1 |
|
|
40 |
183-8526
|
Screw M6 x 14 |
1 |
|
|
41 |
183-8415
|
Conical washer |
3 |
|
|
42 |
183-9339
|
Right hand reduction gear |
1 |
|
|
43 |
183-2584
|
Screw M8 x 25mm |
3 |
|
|
44 |
183-8286
|
Washer INOX |
6 |
|
|
