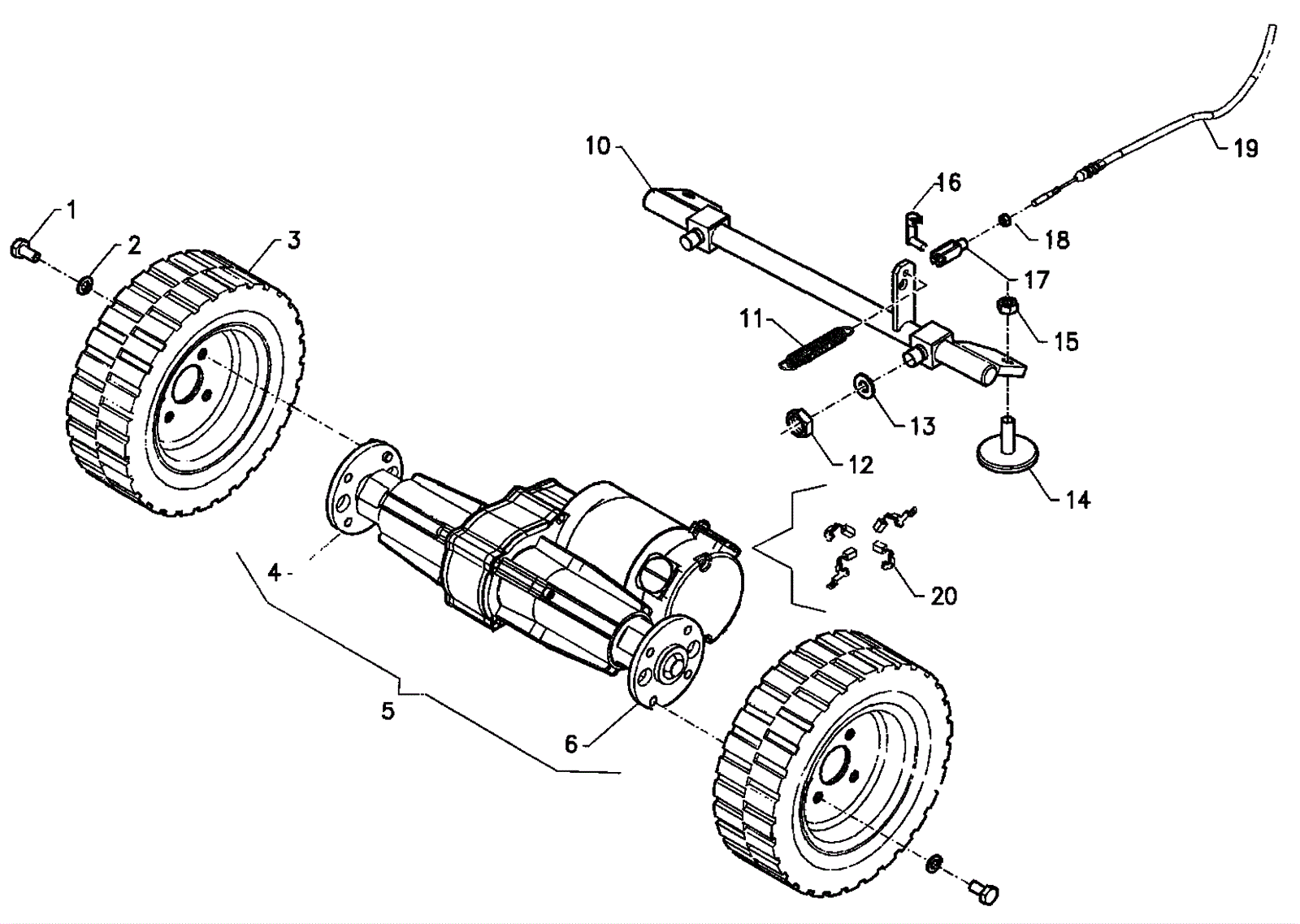

BD 32/26 Geared Motor Break Wheels Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-2479 Screw M10 x 20mm $2.04 2 usually ships 8-21 days
2 183-9331 Lock washer $1.35 2 usually ships 8-21 days
3a 183-9332 Wheel M258 x 80-3.00-6 $415.31 2 usually ships 8-21 days
3b 183-9333 Polyurethane coated wheel $655.94 1 usually ships 8-21 days
4 183-5101 Right hand axle shaft $198.22 2 usually ships 8-21 days
5 183-9334 Traction motor $2,369.38 1 usually ships 8-21 days
6 183-5102 Left hand axle shaft $182.15 1 usually ships 8-21 days
10 183-5103 Brake shaft (OBSOLETE) Call for price 1 usually ships 8-21 days
11 183-5104 Traction spring $14.70 1 usually ships 8-21 days
12 183-8406 Washer $1.35 1 usually ships 8-21 days
13 183-9335 Washer $1.35 1 usually ships 8-21 days
14 183-5105 Brake pad (OBSOLETE) Call for price 1 usually ships 8-21 days
15 183-2621 Nut $1.30 2 usually ships 8-21 days
16 183-7638 Fork clip $3.25 2 usually ships 8-21 days
17 183-9197 Fork $6.08 1 usually ships 8-21 days
18 183-8394 Nut $1.35 1 usually ships 8-21 days
19 183-9336 Brake cable $28.91 1 usually ships 8-21 days
20 183-5106 Carbon brushes (pkg of 4) $154.26 1 usually ships 8-21 days
