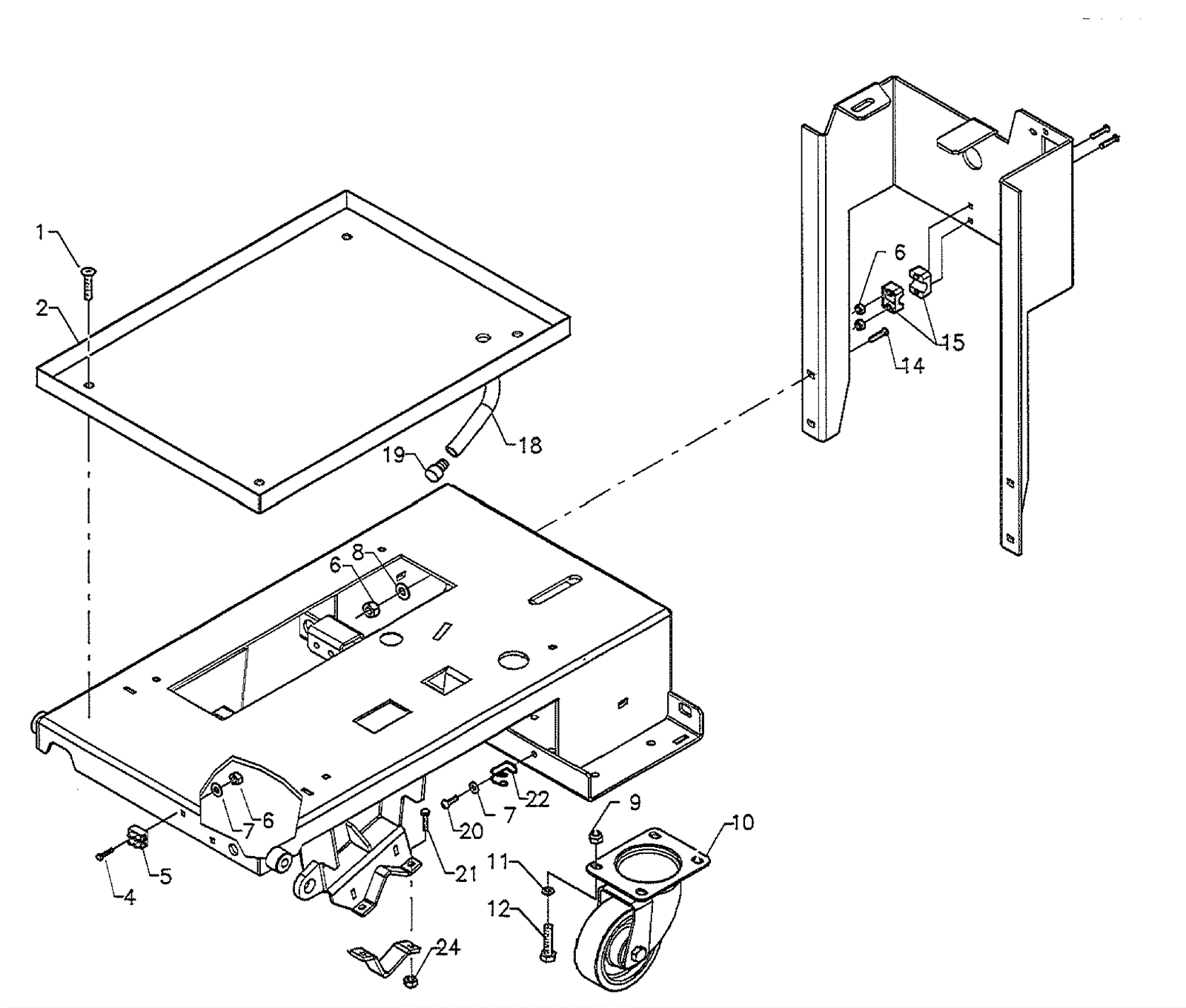

Frame Assembly up to S/N 12002036

#PartDescription ReqNotesAvailability
1 183-8402 Screw M6 x 16 4
2 183-9321 Battery tray 1
4 183-8388 Screw 1
5 183-9322 Terminal board 1
6 183-8256 Nut 7
8 183-8294 Washer 1
9 183-8424 Nut 8
10 183-9323 Caster wheel M125 x 40mm 2
11 183-9324 Washer 8
12 183-9325 Screw M10 x 25mm 8
14 183-9129 Screw M8 x 25mm 4
15 183-8428 Pivot block 2
18 183-9326 Hose M13 x 160mm 1
19 183-9327 Cap 1
20 183-9328 Screw M6 x 18mm 1
21 183-9329 Screw M8 x 30mm 4
22 183-9330 Coupling spring 1
24 183-8404 Nut 4
