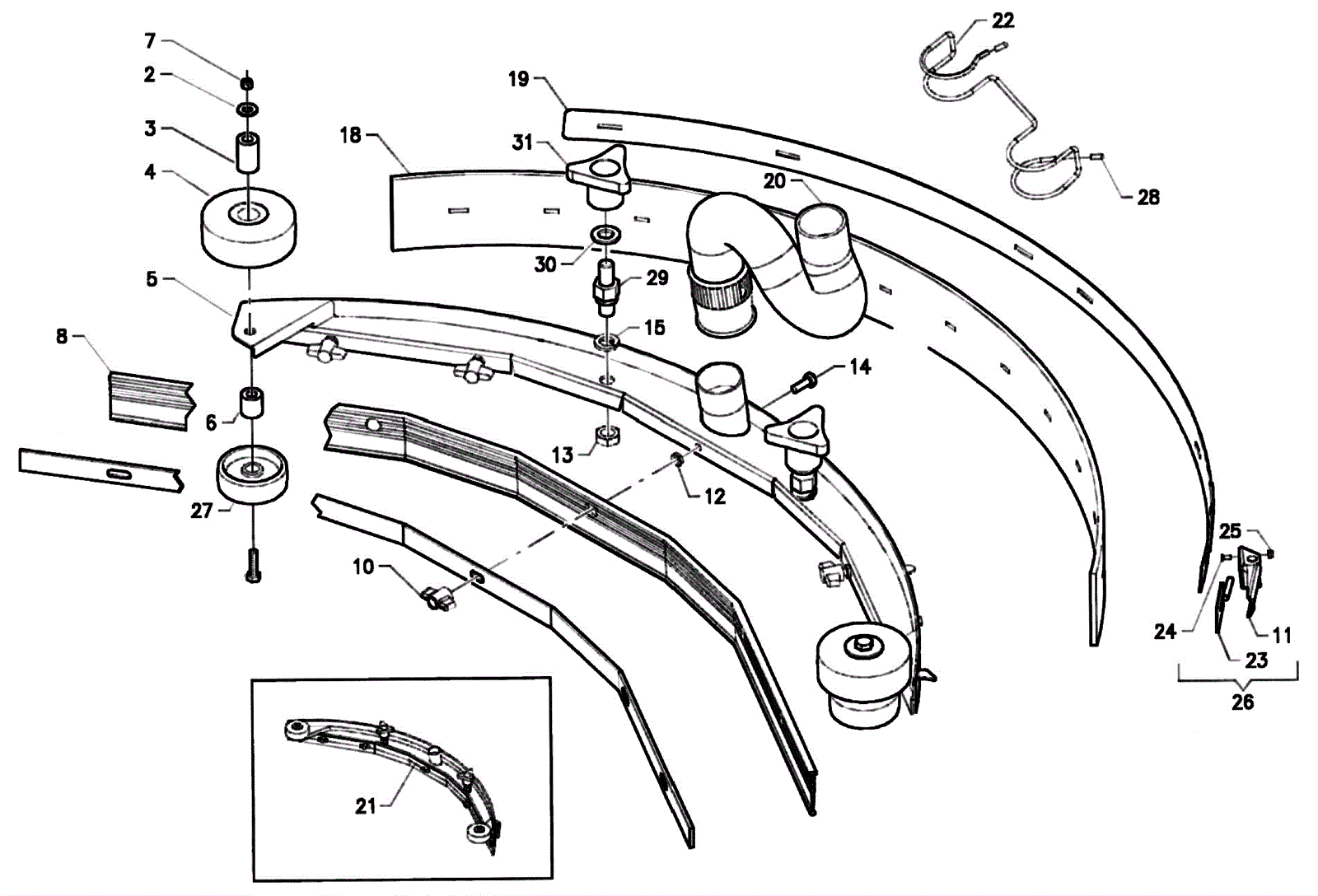

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
183-5099
|
Screw M8 x 65mm INOX (OBSOLETE) |
2 |
|
|
2 |
183-2451
|
Washer inox |
2 |
|
|
3 |
183-8498
|
Bushing |
2 |
|
|
4 |
183-4706
|
Bumper wheel |
2 |
|
|
5 |
183-9312
|
Squeegee body (iron) |
1 |
|
|
6 |
183-9133
|
Bushing |
2 |
|
|
8 |
183-9313
|
Squeegee blade front |
1 |
|
|
9 |
183-5100
|
Front blade iron (OBSOLETE) |
1 |
|
|
10 |
183-2305
|
Wing nut |
5 |
|
|
11 |
183-8504
|
Lever |
1 |
|
|
12 |
183-8214
|
Nut |
5 |
|
|
13 |
183-9135
|
Nut |
2 |
|
|
14 |
183-8319
|
Screw M6 x 18 |
4 |
|
|
15 |
183-9136
|
Lock washer |
2 |
|
|
18 |
183-9314
|
Squeegee blade rear |
1 |
|
|
19 |
183-9315
|
Squeegee blade retainer |
1 |
|
|
20 |
183-9391
|
Squeegee hose M38.2 x 1680mm |
1 |
|
|
21 |
183-9317
|
Squeegee assembly |
1 |
|
|
22 |
183-8508
|
Spring |
1 |
|
|
23 |
183-8505
|
Adjustment bracket |
1 |
|
|
24 |
183-8506
|
Screw |
2 |
|
|
25 |
183-2463
|
Lock nut inox |
2 |
|
|
26 |
183-9318
|
Blade assembly rear |
1 |
|
|
27 |
183-9132
|
Bumper wheel |
2 |
|
|
28 |
183-2465
|
Cap |
2 |
|
|
29 |
183-9319
|
Stud bolt |
2 |
|
|
30 |
183-9320
|
Washer |
2 |
|
|
31 |
183-9139
|
Handwheel |
2 |
|
|
