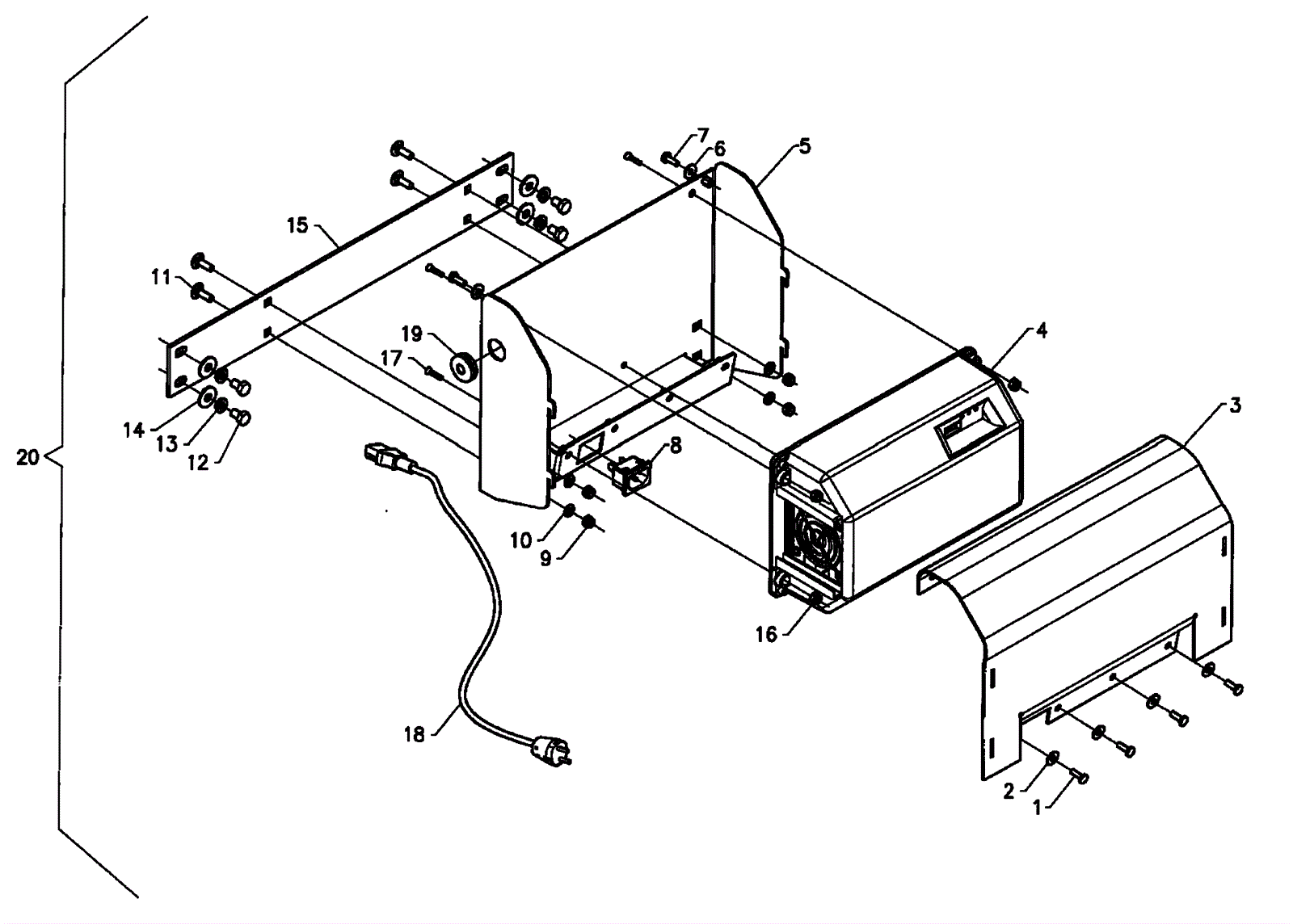

BD 32/26 Battery Charger Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-9254 Screw M4 x 12mm $1.35 4 usually ships 8-21 days
2 183-2665 Washer $1.35 4 usually ships 8-21 days
3 183-4769 Onboard charger plastic cover $24.37 1 usually ships 8-21 days
4 183-9307 Battery charger $1,165.34 1 (SN 13001159 to 13000687) usually ships 8-21 days
5 183-9308 Charger support $95.52 1 usually ships 8-21 days
6 183-2665 Washer $1.35 2 usually ships 8-21 days
7 183-9254 Screw M4 x 12mm $1.35 2 usually ships 8-21 days
8 183-2435 Main socket 10a 250v $4.94 1 usually ships 8-21 days
9 183-8279 Nut INOX $1.35 4 usually ships 8-21 days
10 183-2610 Washer $1.35 4 usually ships 8-21 days
11 183-2627 Screw M5 x 16mm $2.20 4 usually ships 8-21 days
12 183-9309 Screw M6 x 10mm $1.35 4 usually ships 8-21 days
13 183-2539 Lock washer $1.35 4 usually ships 8-21 days
15 183-9310 Charger support plate $14.55 1 usually ships 8-21 days
16 183-8460 Nut $1.35 4 usually ships 13-23 days
17 183-5098 Screw M4 x 16mm $1.35 4 usually ships 8-21 days
18 183-4711 Charger cable $23.76 1 usually ships 8-21 days
19 183-2431 Grommet $6.14 1 usually ships 8-21 days
20 183-9311 Battery charger assembly $889.02 1 (includes 1-19) usually ships 8-21 days
