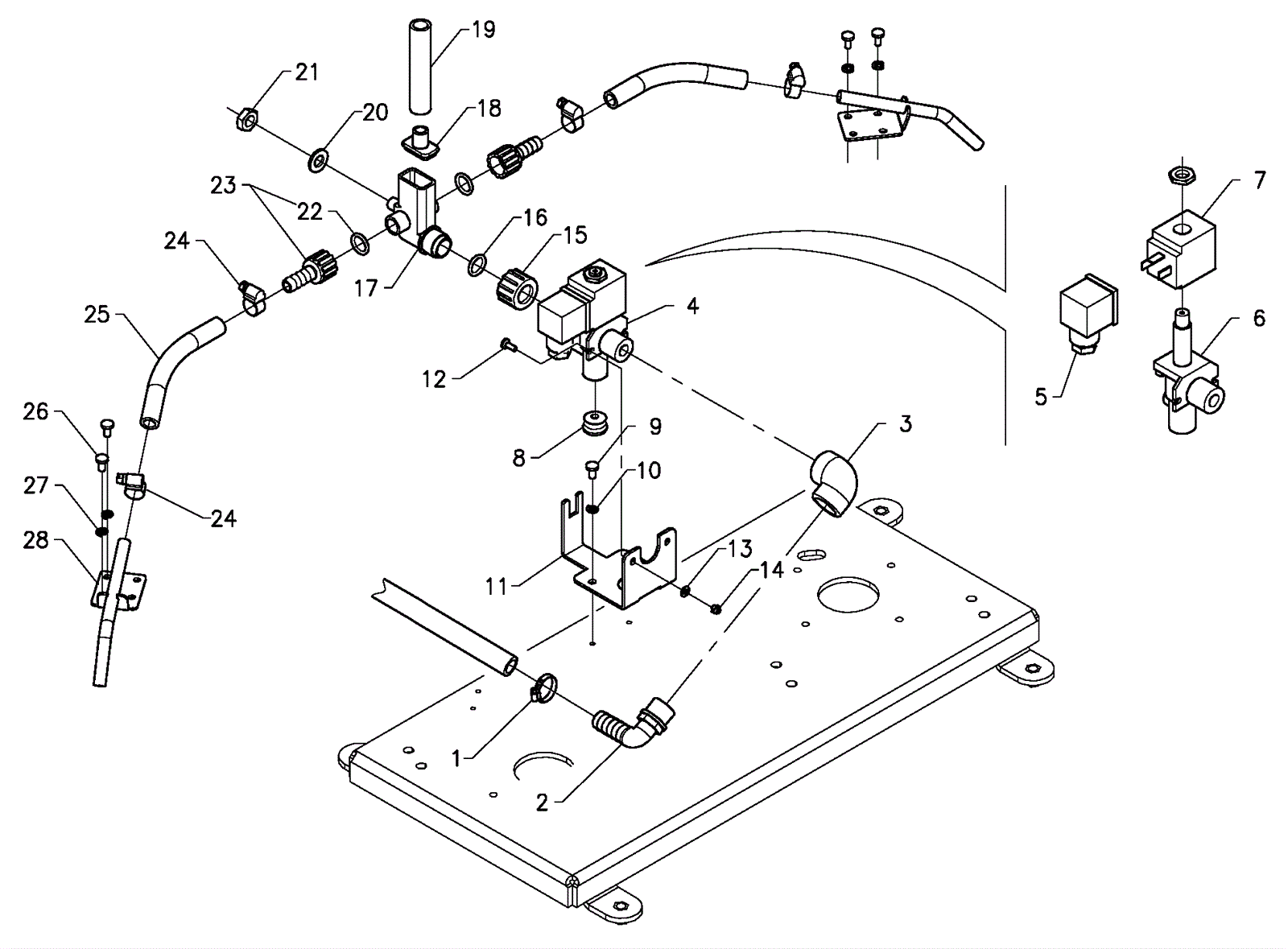

BD 28/20 Water Unit Assembly from SN 19004226

#PartDescriptionPriceReqNotesAvailability
1 183-7651 Hose clamp $4.84 1 usually ships 15-28 days
2 183-8202 Fitting $7.93 1 usually ships 15-28 days
3 183-9253 90 degree elbow fitting $8.16 1 usually ships 15-28 days
4 183-2517 Solenoid valve assembly $143.02 1 usually ships 15-28 days
5 183-8198 Square connector $6.63 1 usually ships 15-28 days
6 183-2522 Solenod valve body $88.24 1 usually ships 15-28 days
7 183-8230 Solenoid valve coil $55.92 1 usually ships 15-28 days
8 183-2270 Cap $1.54 1 usually ships 15-28 days
9 183-2581 Screw M5 x 12mm $1.54 2 usually ships 15-28 days
10 183-2578 Lock washer $1.54 2 usually ships 15-28 days
11 183-7655 Solenoid valve support $27.91 1 usually ships 15-28 days
12 183-9254 Screw M4 x 12mm $1.54 2 usually ships 15-28 days
13 183-2438 Washer $1.54 2 usually ships 15-28 days
14 183-3233 Lock nut $1.54 2 usually ships 15-28 days
15 183-2520 Ring nut $4.69 1 usually ships 15-28 days
16 183-9255 O-ring $1.54 1 usually ships 15-28 days
17 183-9256 Distributor $11.83 1 usually ships 15-28 days
18 183-9257 Cover $2.86 1 usually ships 15-28 days
19 183-9258 Hose M12 x 85mm $3.30 1 usually ships 15-28 days
20 183-8264 Washer INOX $1.54 1 usually ships 15-28 days
21 183-2456 Nut inox $1.76 1 usually ships 15-28 days
22 183-9259 Gasket $1.76 1 usually ships 15-28 days
23 183-9260 Straight fitting $11.32 2 usually ships 15-28 days
24 183-8241 Clamp $6.11 4 usually ships 15-28 days
25 183-7657 Hose Call for price 2 usually ships 15-28 days
26 183-2581 Screw M5 x 12mm $1.54 4 usually ships 15-28 days
27 183-2578 Lock washer $1.54 4 usually ships 15-28 days
28 183-9261 Water tube outlet $84.82 2 usually ships 15-28 days
