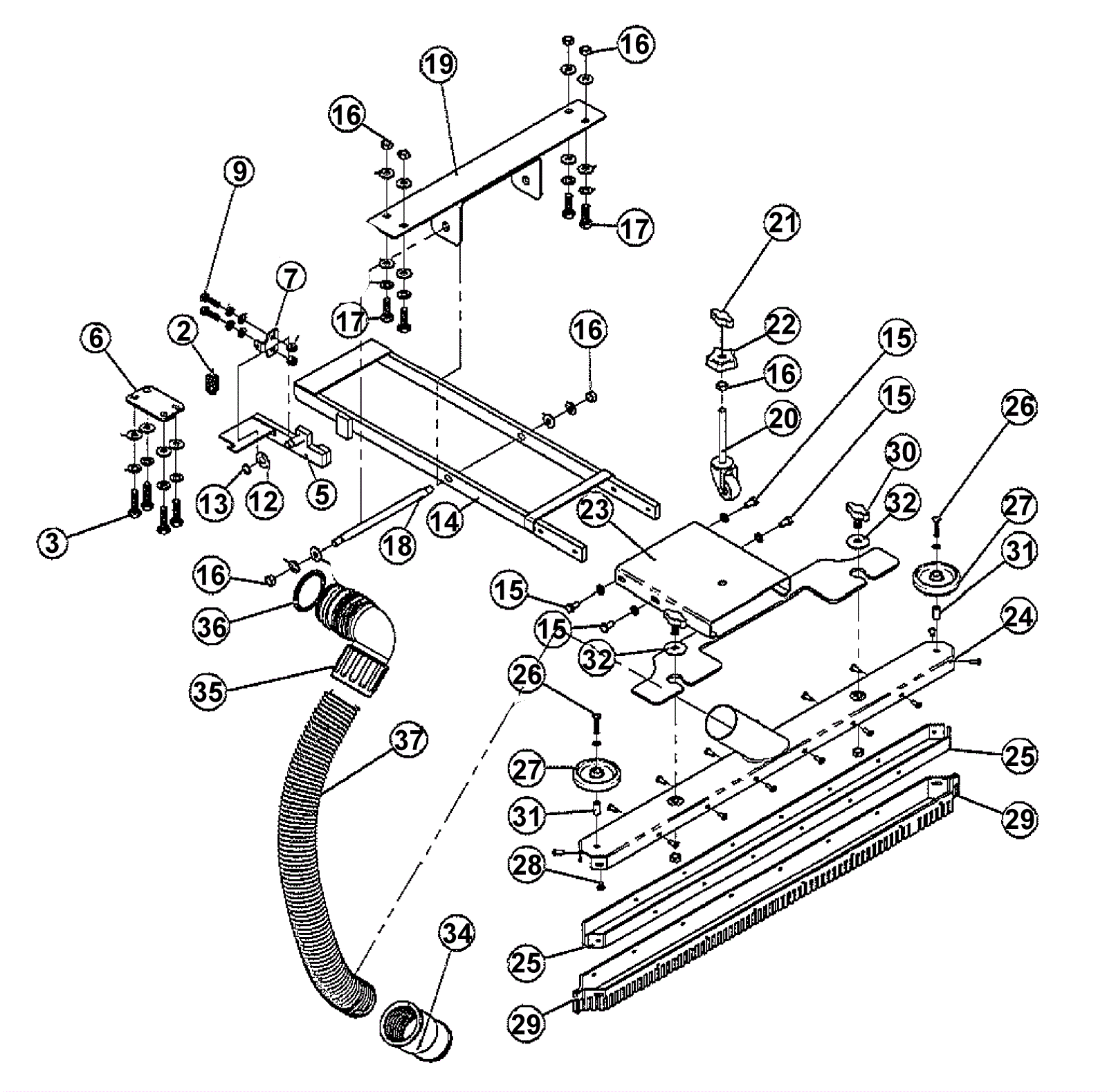

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
183-2172
|
Spring |
1 |
|
|
3 |
183-4999
|
Screw M8 x 30mm |
8 |
|
|
5 |
183-5001
|
Hook assembly |
1 |
|
|
6 |
183-5002
|
Plate |
1 |
|
|
7 |
183-5003
|
Plate |
1 |
|
|
9 |
183-5005
|
Pin M6 x 25mm |
2 |
|
|
12 |
183-5008
|
Washer |
1 |
|
|
13 |
183-5009
|
C ring |
1 |
|
|
14 |
183-9284
|
Short pedal |
1 |
|
|
15 |
183-5011
|
Screw |
4 |
|
|
16 |
183-5012
|
Nut |
7 |
|
|
17 |
183-5013
|
Screw M8 x 25mm |
4 |
|
|
18 |
183-5014
|
Squeegee pin |
1 |
|
|
19 |
183-9285
|
U-shaft assembly |
1 |
|
|
20 |
183-5016
|
Caster wheel |
1 |
|
|
21 |
183-5017
|
Thumb wheel |
1 |
|
|
22 |
183-5018
|
Adjustment knob |
1 |
|
|
24 |
183-5020
|
Squeegee body |
1 |
|
|
25 |
183-5021
|
Retainer strip |
2 |
|
|
26 |
183-5022
|
Screw M5 x 25mm |
2 |
|
|
27 |
183-5023
|
Squeegee wheel |
2 |
|
|
28 |
183-5024
|
Screw M4 x 10mm stainless steel |
16 |
|
|
29 |
190-0226
|
Squeegee blade (pkg of 2) |
1 |
|
|
30 |
183-5025
|
Wing nut |
2 |
|
|
31 |
183-5026
|
Spacer |
2 |
|
|
32 |
183-5027
|
Washer |
2 |
|
|
34 |
183-9060
|
Connector |
1 |
|
|
35 |
183-5029
|
Elbow connector |
1 |
|
|
36 |
183-5031
|
Gasket |
1 |
|
|
37 |
183-9287
|
Squeegee hose |
1 |
|
|
N/S |
183-9286
|
Mounting plate |
1 |
|
|
