BD 28/20

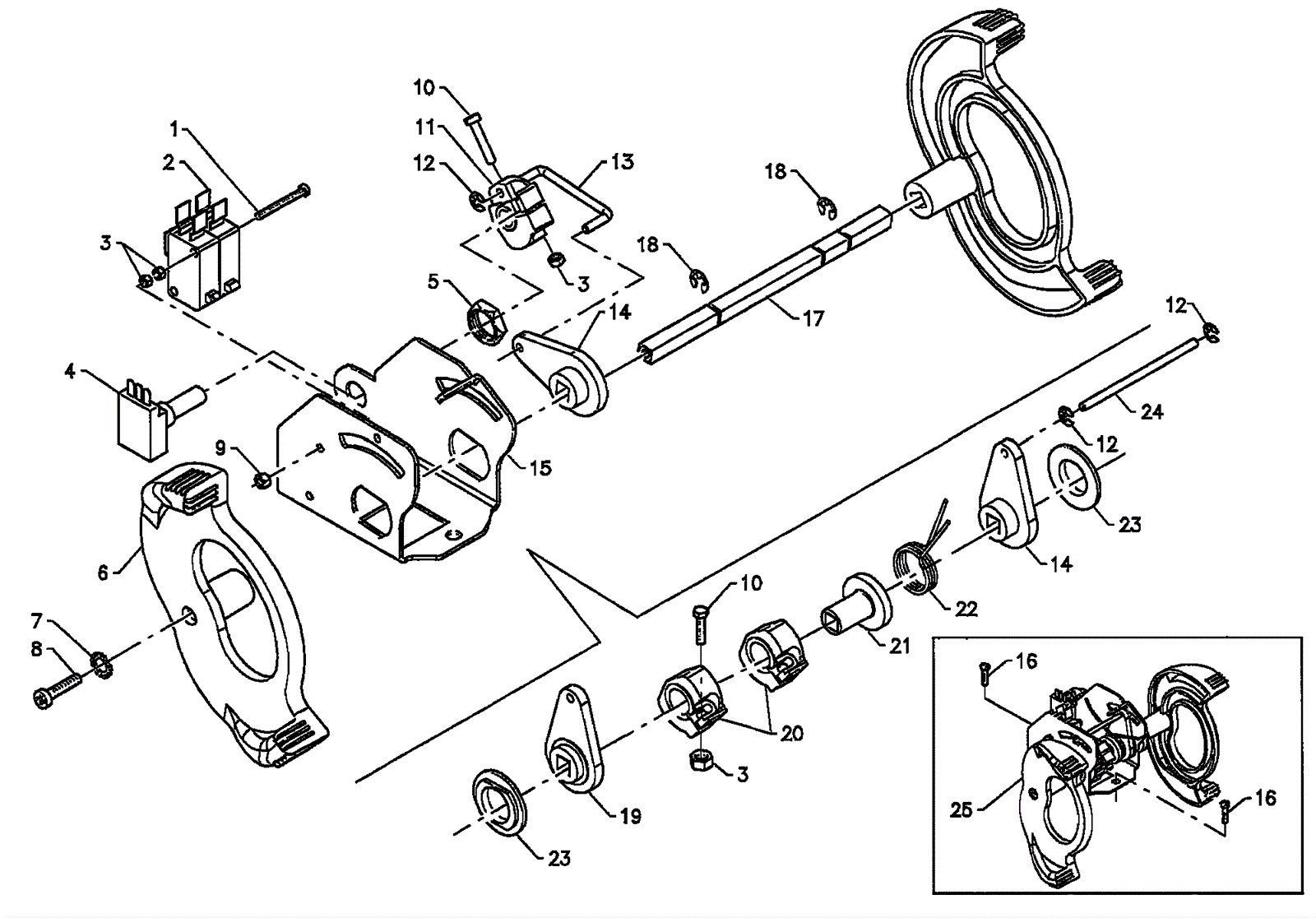

Traction Control Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1
183-9276
Screw M3 x 35mm
$5.43
2
usually ships 9-20 days
2
183-4712
10amp microswitch
$11.65
2
usually ships 9-20 days
3
183-8352
Nut
$1.23
7
ships same day
4
183-9277
2.5K potentioneter
$59.19
1
usually ships 9-20 days
5
183-9278
Potentiometer nut
$21.26
4
usually ships 9-20 days
6
183-8339
Lever
$5.00
2
usually ships 9-20 days
7
183-8338
Washer
$1.23
2
usually ships 9-20 days
8
183-8337
Screw M3 x 10
$1.23
2
usually ships 9-20 days
9
183-8357
Nut
$1.23
2
usually ships 9-20 days
10
183-8350
Screw
$1.23
3
usually ships 9-20 days
11
183-9279
Potentiometer level
$1.27
1
usually ships 9-20 days
12
183-8354
Ring
$1.23
3
usually ships 9-20 days
13
183-9280
Drive control tie rod
$4.85
1
usually ships 9-20 days
14
183-8353
Lever
$1.37
2
usually ships 9-20 days
15
183-8344
Bracket
$22.52
1
usually ships 9-20 days
16
183-8332
Screw M5 x 8
$1.23
2
usually ships 9-20 days
17
183-8342
shaft
$13.98
1
ships same day
18
183-8343
Ring
$1.23
2
usually ships 9-20 days
19
183-8348
Lever
$1.37
1
ships same day
20
183-9281
Micro cam drive control
$2.14
2
ships same day
21
183-8351
Bushing
$1.48
1
usually ships 9-20 days
22
183-8346
Spring
$5.00
1
usually ships 9-20 days
23
183-8347
Bushing
$1.23
2
usually ships 9-20 days
24
183-8355
Spring
$3.12
1
usually ships 9-20 days
25
183-9282
Drive control assembly
$259.60
1
usually ships 9-20 days
