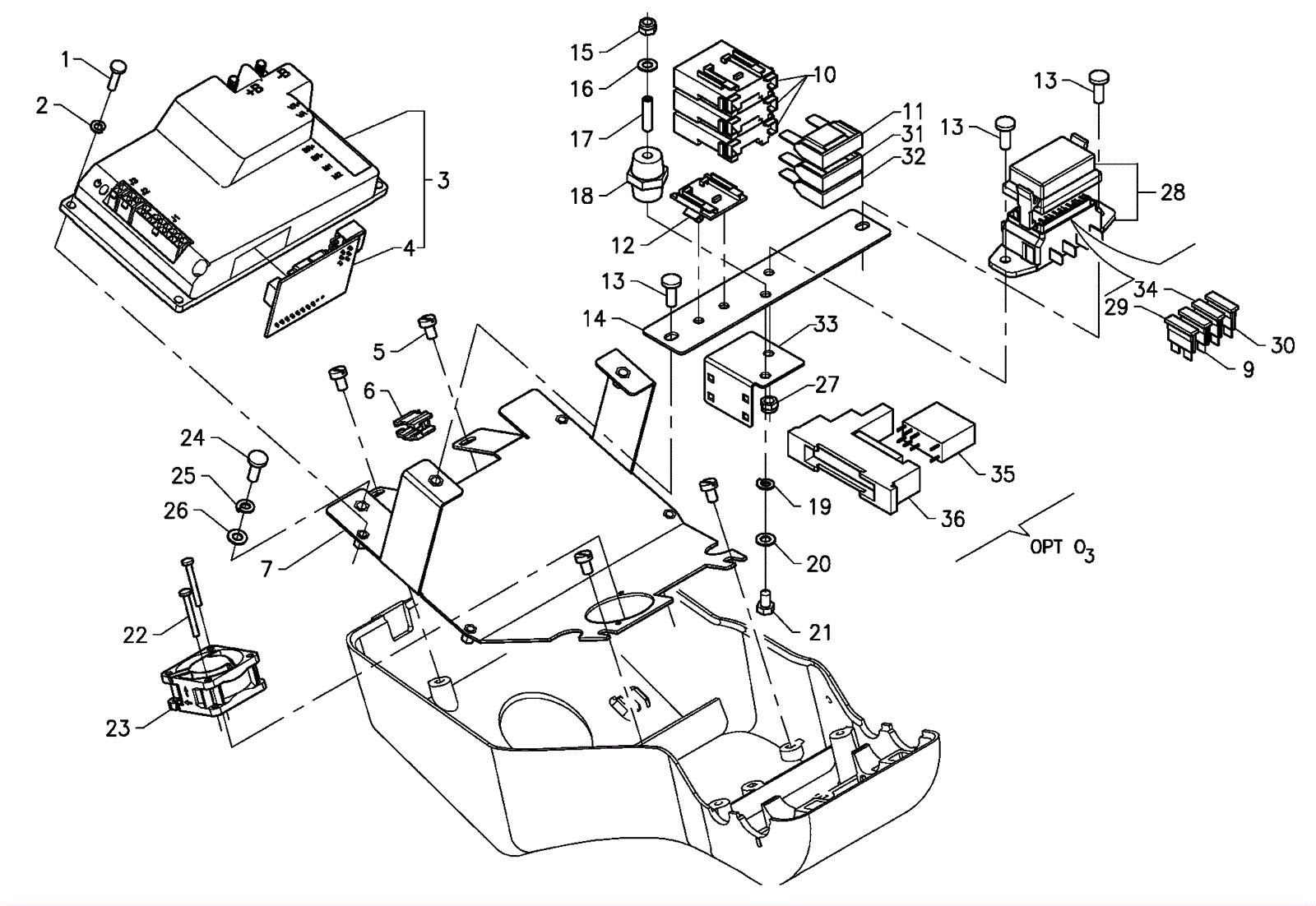

BD 28/20 Electrical Layout from S/N 17004555

#PartDescriptionPriceReqNotesAvailability
1 183-2429 Screw M4 x 16mm $1.23 4 usually ships 9-20 days
2 183-8365 Washer $1.23 4 usually ships 9-20 days
3 183-9262 Chopper card $754.07 1 usually ships 9-20 days
4 183-7659 Actuator check card $124.77 1 usually ships 9-20 days
5 183-8332 Screw M5 x 8 $1.23 4 usually ships 9-20 days
6 183-2705 Clamp holder clip $4.10 1 usually ships 9-20 days
7 183-9263 Electrical installation panel $46.58 1 usually ships 9-20 days
9 183-8376 3amp Fuse $1.23 1 usually ships 9-20 days
10 183-8324 Fuse holder $4.14 1 usually ships 9-20 days
11 183-9264 80amp fuse $5.17 1 usually ships 9-20 days
12 183-8329 Plate $2.04 1 usually ships 9-20 days
13 183-2430 Screw M5 x 14mm $1.23 2 usually ships 9-20 days
14 183-7660 Electric components panel $6.15 1 usually ships 9-20 days
15 183-8314 Nut $1.23 1 usually ships 9-20 days
16 183-8325 Dowel $1.23 1 usually ships 9-20 days
17 183-8374 Washer $1.23 1 usually ships 9-20 days
18 183-8326 Insulator $22.07 1 usually ships 9-20 days
19 183-8374 Washer $1.23 1 usually ships 9-20 days
20 183-8327 Washer $1.23 1 usually ships 9-20 days
21 183-8330 Screw M5 x 8 $1.23 1 usually ships 9-20 days
22 183-8345 Screw M3 x 25 $1.23 1 usually ships 9-20 days
23 183-9266 Fan $29.93 1 usually ships 9-20 days
24 183-2430 Screw M5 x 14mm $1.23 1 usually ships 9-20 days
25 183-8327 Washer $1.23 1 usually ships 9-20 days
26 183-8368 Washer $1.23 2 usually ships 9-20 days
27 183-8314 Nut $1.23 1 usually ships 9-20 days
28 183-7661 4 way fuseholder $17.56 1 usually ships 9-20 days
29 183-9269 7.5amp fuse $1.23 1 usually ships 9-20 days
30 183-7663 Ozone assembly relay support Call for price 1 usually ships 9-20 days
31 183-8377 30amp Fuse $3.79 1 usually ships 9-20 days
32 183-8377 30amp Fuse $3.79 1 usually ships 9-20 days
33 183-7663 Ozone assembly relay support Call for price 1 usually ships 9-20 days
34 183-8376 3amp Fuse $1.23 1 usually ships 9-20 days
35 183-7664 Relay $57.47 1 usually ships 9-20 days
36 183-7665 Base for relay $66.03 1 usually ships 9-20 days
