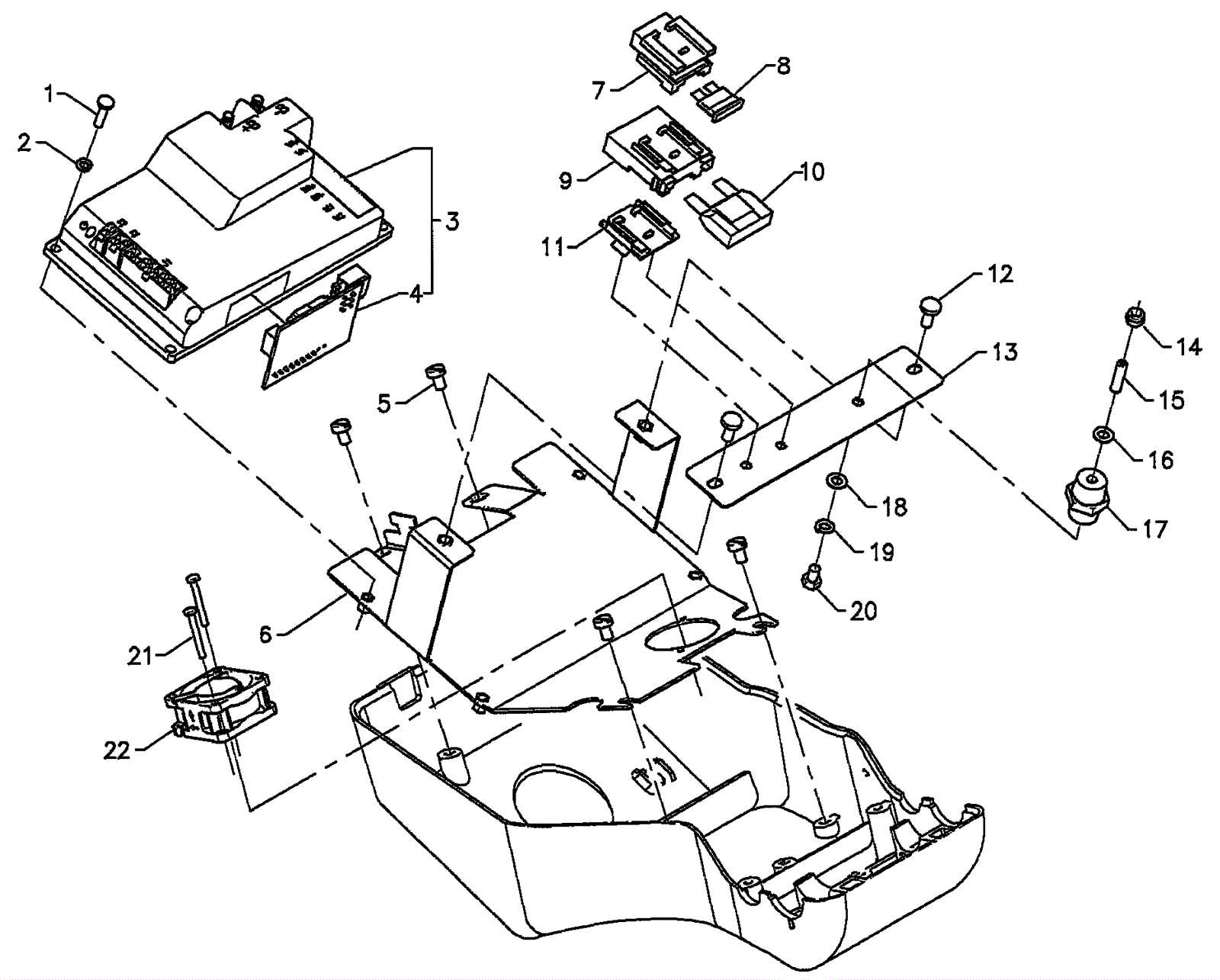

BD 28/20 Electrical Layout up to S/N 15001022

#PartDescriptionPriceReqNotesAvailability
1 183-2429 Screw M4 x 16mm $1.54 4 usually ships 15-28 days
2 183-8365 Washer $1.54 4 usually ships 15-28 days
3a 183-9262 Chopper card $829.48 1 usually ships 15-28 days
3b 183-7658 Chopper card Call for price 1 usually ships 15-28 days
4 183-7659 Actuator check card $137.25 1 usually ships 15-28 days
5 183-8332 Screw M5 x 8 $1.54 4 usually ships 15-28 days
6 183-9263 Electrical installation panel $51.24 1 usually ships 15-28 days
7 183-8370 Fuse holder $4.48 1 usually ships 15-28 days
8 183-8376 3amp Fuse $1.54 1 usually ships 15-28 days
9 183-8324 Fuse holder $4.84 1 usually ships 15-28 days
10 183-9264 80amp fuse $5.69 1 usually ships 15-28 days
11 183-8329 Plate $2.42 1 usually ships 15-28 days
12 183-2430 Screw M5 x 14mm $1.54 2 usually ships 15-28 days
13 183-9265 Electric components panel $5.92 1 usually ships 15-28 days
14 183-8314 Nut $1.54 1 usually ships 15-28 days
15 183-8325 Dowel $1.54 1 usually ships 15-28 days
16 183-8374 Washer $1.54 1 usually ships 15-28 days
17 183-8326 Insulator $24.28 1 usually ships 15-28 days
18 183-8374 Washer $1.54 1 usually ships 15-28 days
19 183-8327 Washer $1.54 1 usually ships 15-28 days
20 183-8330 Screw M5 x 8 $1.54 1 usually ships 15-28 days
21 183-8345 Screw M3 x 25 $1.54 1 usually ships 15-28 days
22 183-9266 Fan $32.92 1 usually ships 15-28 days
