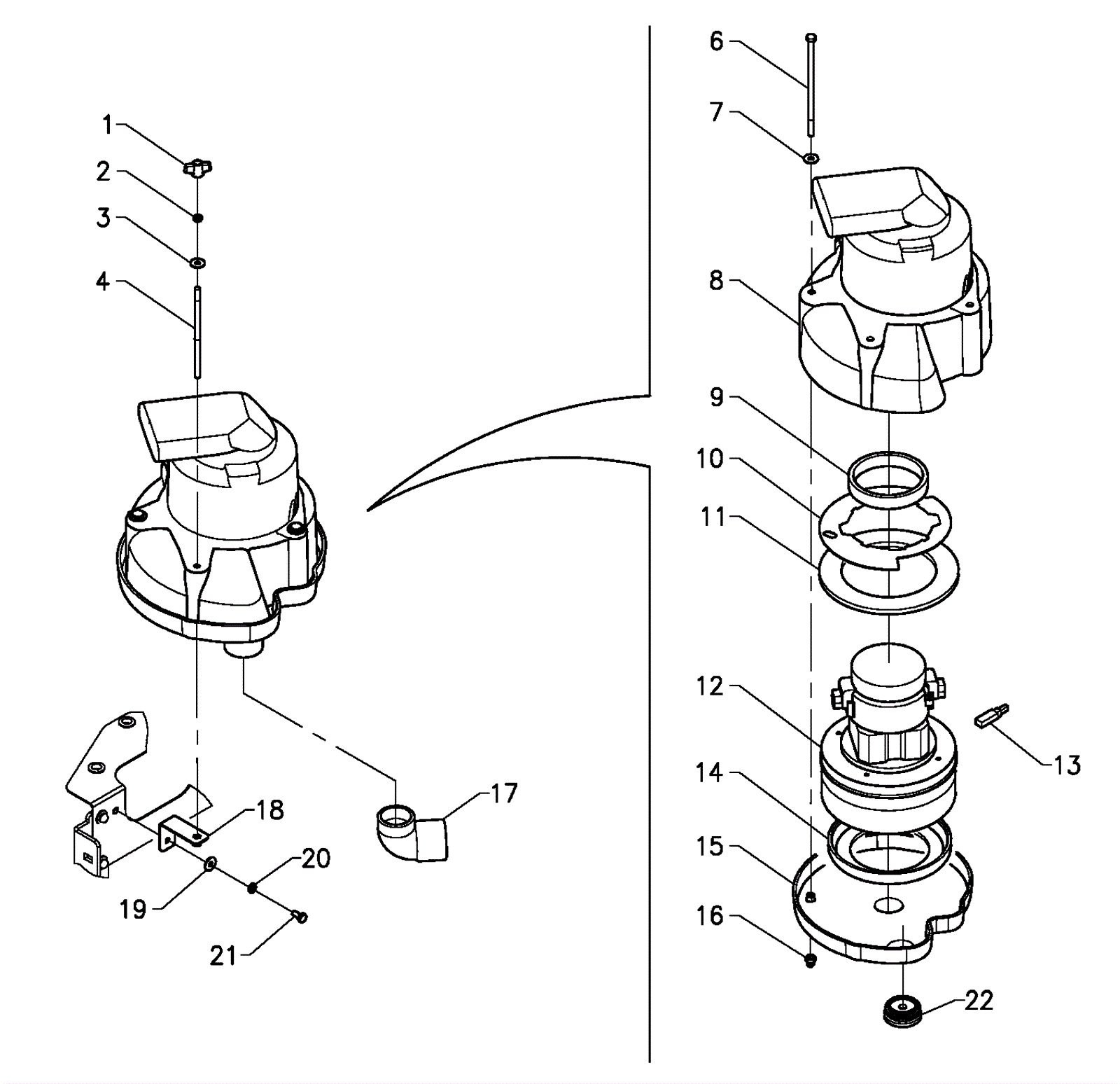

BD 28/20 2 Stage Vacuum Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-7653 Wing nut Call for price 1 usually ships 15-28 days
2 183-8214 Nut $1.54 1 usually ships 15-28 days
4 183-8436 Bolt $5.28 1 ships same day
6 183-8462 Screw $6.35 4 usually ships 15-28 days
8 183-8464 Motor housing $149.26 1 usually ships 15-28 days
9 183-9250 Suction motor separator ring $4.18 1 usually ships 15-28 days
10 183-8465 Protection ring $11.15 1 usually ships 15-28 days
11 183-8466 Gasket $8.03 1 usually ships 15-28 days
12 183-8166 Vacuum motor $676.73 1 usually ships 15-28 days
13 183-4701 Carbon brushes $27.82 1 usually ships 15-28 days
14 183-8471 Vacuum motor gasket $16.67 1 usually ships 15-28 days
15 183-7654 Motor base with inserts $183.37 1 usually ships 15-28 days
16 183-8392 Nut $1.54 4 usually ships 15-28 days
17 183-8480 Fitting $24.99 1 ships same day
18 183-9251 Mounting bracket $7.85 1 usually ships 15-28 days
19 183-8240 Washer INOX $1.54 1 usually ships 15-28 days
21 183-8526 Screw M6 x 14 $1.54 1 ships same day
22 183-9252 Cap $1.98 1 (after SN 18003219) usually ships 15-28 days
