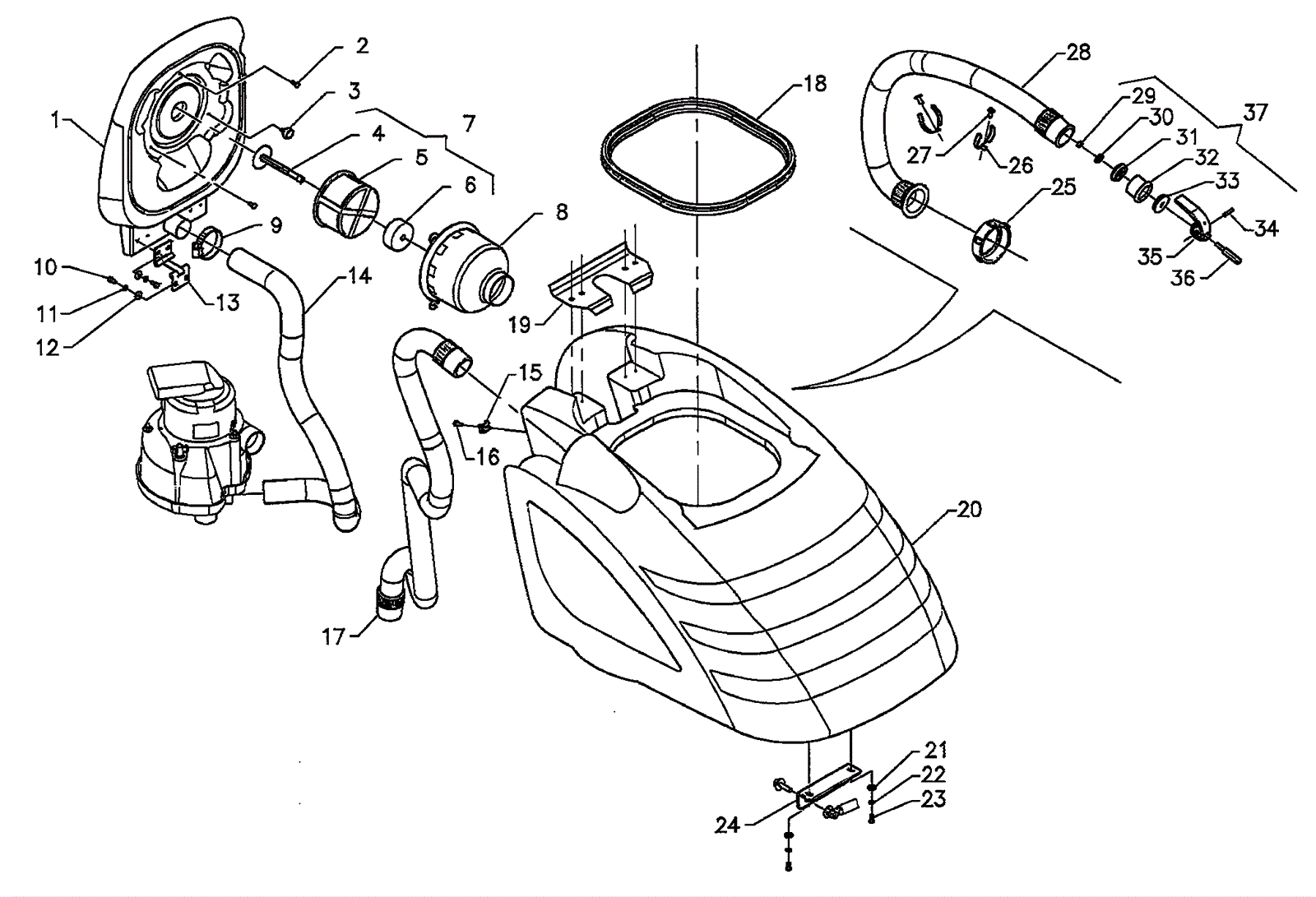

BD 28/20 Recovery Tank

#PartDescriptionPriceReqNotesAvailability
1a 183-9227 Recovery tank cover $271.85 1 usually ships 15-28 days
1b 183-7648 Recovery tank cover Call for price 1 usually ships 15-28 days
2 183-9228 Screw M5 x 12mm $1.54 2 usually ships 15-28 days
3 183-9229 Handwheel $5.72 1 usually ships 15-28 days
4 183-2138 Rod with plate $5.06 1 usually ships 15-28 days
5 183-2139 Float filter $6.71 1 usually ships 15-28 days
6 183-2147 Float $5.06 1 usually ships 15-28 days
7 183-8479 Filter and float assembly $24.16 1 (includes 4-6) usually ships 15-28 days
8 183-9230 Filter protection $7.38 1 usually ships 15-28 days
9 183-9231 Hose clamp $6.31 1 usually ships 15-28 days
10 183-2581 Screw M5 x 12mm $1.54 8 usually ships 15-28 days
11 183-2578 Lock washer $1.54 8 usually ships 15-28 days
12 183-9232 Washer $1.54 8 usually ships 15-28 days
13 183-9233 Tank cover hinge $70.54 2 usually ships 15-28 days
14 183-9234 Suction hose $23.85 1 usually ships 15-28 days
15 183-8454 Saddle support $1.54 1 usually ships 15-28 days
16 183-8477 Screw M5 x 16 $1.54 1 usually ships 15-28 days
17 183-7649 Squeegee hose $53.30 1 ships same day
18 183-9235 Tank cover gasket $15.94 1 usually ships 15-28 days
19 183-9236 Recovery tank baffle $20.47 1 usually ships 15-28 days
20 183-9237 Recovery tank $1,494.49 1 usually ships 15-28 days
22a 183-8523 Lock washer $1.30 2 usually ships 15-28 days
22b 190-0269 Washer 1/4 spring lock $1.54 2 usually ships 15-28 days
24 183-9238 Gas shock absorber guide $14.77 1 usually ships 15-28 days
25 183-9239 Drain hose ring nut $14.32 1 usually ships 15-28 days
26 183-8226 Spring $7.55 2 usually ships 15-28 days
27 183-8402 Screw M6 x 16 $1.54 2 usually ships 15-28 days
28 183-9240 Exhaust hose $45.89 1 usually ships 15-28 days
29 183-8229 Nut INOX $1.54 1 usually ships 15-28 days
30 183-8240 Washer INOX $1.54 1 usually ships 15-28 days
31 183-8221 Drain plug $2.86 1 usually ships 15-28 days
32 183-8222 Plug $5.34 1 usually ships 15-28 days
33 183-8220 Drain plug cover $2.86 1 usually ships 15-28 days
34 183-2509 Parallel pin inox $1.76 1 usually ships 15-28 days
35 183-8223 Drain plug lever $6.83 1 usually ships 15-28 days
36 183-8218 Rod $14.33 1 usually ships 15-28 days
37 183-8197 Plug assembly $53.58 1 (includes 29-34) usually ships 15-28 days
38 183-2478 Washer aluminium $1.54 1 usually ships 15-28 days
