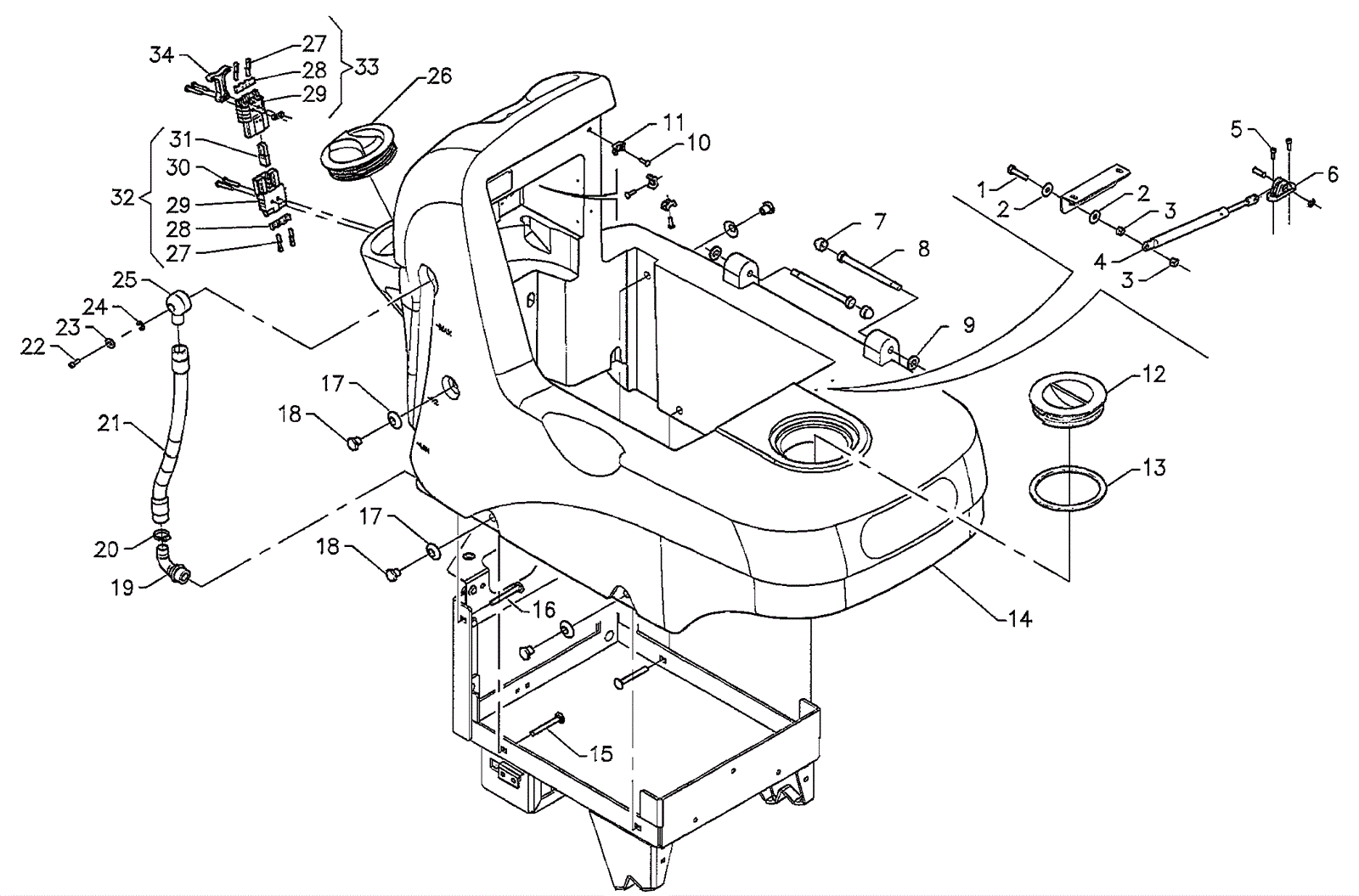

BD 28/20 Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-9206 Screw M8 x 35mm $3.50 1 usually ships 8-21 days
3 183-9130 Lock nut $1.35 2 ships same day
4 183-9207 Gas shock absorber $100.10 1 usually ships 8-21 days
5 183-9208 Screw M5 x 16mm $1.35 2 usually ships 8-21 days
6 183-9209 Gas shock absorber support $28.57 1 usually ships 8-21 days
7 183-9210 Black nut cover $1.35 2 usually ships 8-21 days
8 183-9211 Tank pin $35.11 2 usually ships 8-21 days
9 183-9212 PVC washer (black) $10.43 2 usually ships 8-21 days
10 183-8477 Screw M5 x 16 $1.35 3 usually ships 8-21 days
11 183-8454 Saddle support $1.35 3 usually ships 8-21 days
12 183-8484 Cap $7.55 1 usually ships 8-21 days
13 183-8483 Gasket $19.92 1 usually ships 8-21 days
14 183-9213 Solution tank $1,127.95 1 usually ships 8-21 days
15 183-7646 Screw M8 x 70mm Call for price 4 usually ships 8-21 days
16 183-8520 Screw M8 x 60 $1.40 2 usually ships 8-21 days
17 183-9214 Conical washer $1.38 6 usually ships 8-21 days
18 183-9215 Bushing $23.47 6 usually ships 8-21 days
19 183-9216 Bent fitting $7.90 1 ships same day
20 183-3248 Hose clamp $4.09 1 usually ships 8-21 days
21 183-9217 Water level hose $63.49 1 usually ships 8-21 days
22 183-9218 Screw M6 x 30mm $1.35 1 usually ships 8-21 days
23a 183-8523 Lock washer $1.30 1 usually ships 8-21 days
23b 190-0269 Washer 1/4 spring lock $1.30 1 usually ships 10-27 days
24 183-8393 Washer $1.35 1 usually ships 8-21 days
25 183-9219 Solution level hose fitting $5.50 1 usually ships 8-21 days
26 183-8455 Solution tank cap $8.14 1 usually ships 8-21 days
27 183-9220 Contact $10.30 4 usually ships 8-21 days
28 183-9221 Fair-lead guide $6.03 2 usually ships 8-21 days
29 183-9222 Connector body $34.66 2 usually ships 8-21 days
30 183-7647 Screw M4.2 x 38mm Call for price 2 usually ships 8-21 days
31 183-9223 Polarizer assembly $18.36 1 usually ships 8-21 days
32 183-9224 80amp bipolar connector $71.58 1 (includes 27-31) usually ships 8-21 days
33 183-9225 80amp bipolar female connector $66.25 1 (includes 27-29) usually ships 8-21 days
34 183-9226 Connector lever $9.42 1 usually ships 8-21 days
