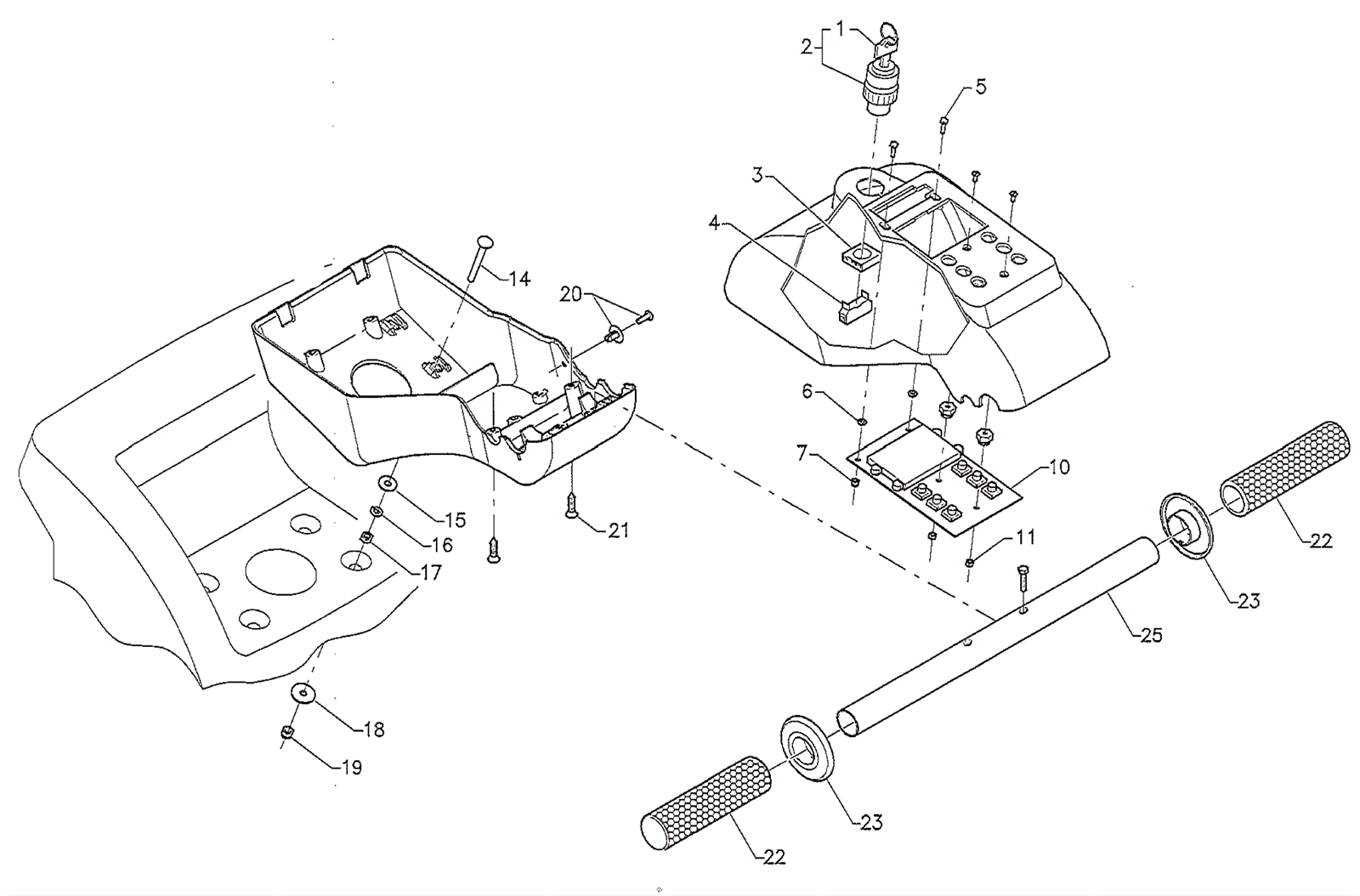

BD 28/20 Handle Bar Assembly From S/N 16001280

#PartDescriptionPriceReqNotesAvailability
1 183-4696 Key $11.34 1 usually ships 15-28 days
2 183-4695 Key switch $86.98 1 usually ships 15-28 days
3 183-8372 Switch flange $3.74 1 usually ships 15-28 days
4 183-8373 Switch contact $12.85 1 usually ships 15-28 days
5 183-8361 Screw $1.54 2 usually ships 15-28 days
6 183-2548 Washer $1.30 2 usually ships 15-28 days
7 183-8386 Nylon nut $1.54 2 usually ships 15-28 days
10 183-9203 Check card controls with display $267.49 1 usually ships 15-28 days
11 183-8386 Nylon nut $1.54 2 usually ships 15-28 days
14 183-8335 Screw $1.54 4 usually ships 15-28 days
16a 183-8523 Lock washer $1.30 4 usually ships 15-28 days
16b 190-0269 Washer 1/4 spring lock $1.54 4 usually ships 15-28 days
17 183-8378 Nut $1.54 4 usually ships 15-28 days
18 183-8334 Washer $1.54 4 usually ships 15-28 days
19 183-8256 Nut $1.54 4 usually ships 15-28 days
20 183-8383 Rivet with screw $4.40 1 usually ships 15-28 days
21 183-8375 Screw M4 x 45 $1.54 2 usually ships 15-28 days
22 183-8336 Handle grip $4.58 2 usually ships 15-28 days
23 183-8396 Handle cap $2.86 2 usually ships 15-28 days
25 183-8340 Handle tube $25.04 1 usually ships 15-28 days
N/S 183-7641 Screw M3 x 16mm $1.54 2 usually ships 15-28 days
N/S 183-7642 Handlebar cover $54.75 1 usually ships 15-28 days
N/S 183-7644 Handlebar body $115.58 1 usually ships 15-28 days
N/S 183-8341 Screw $3.30 2 usually ships 15-28 days
N/S 183-7645 Fan grid Call for price 1 usually ships 15-28 days
N/S 183-9205 Rivet $1.54 2 usually ships 15-28 days
