BD 28/20

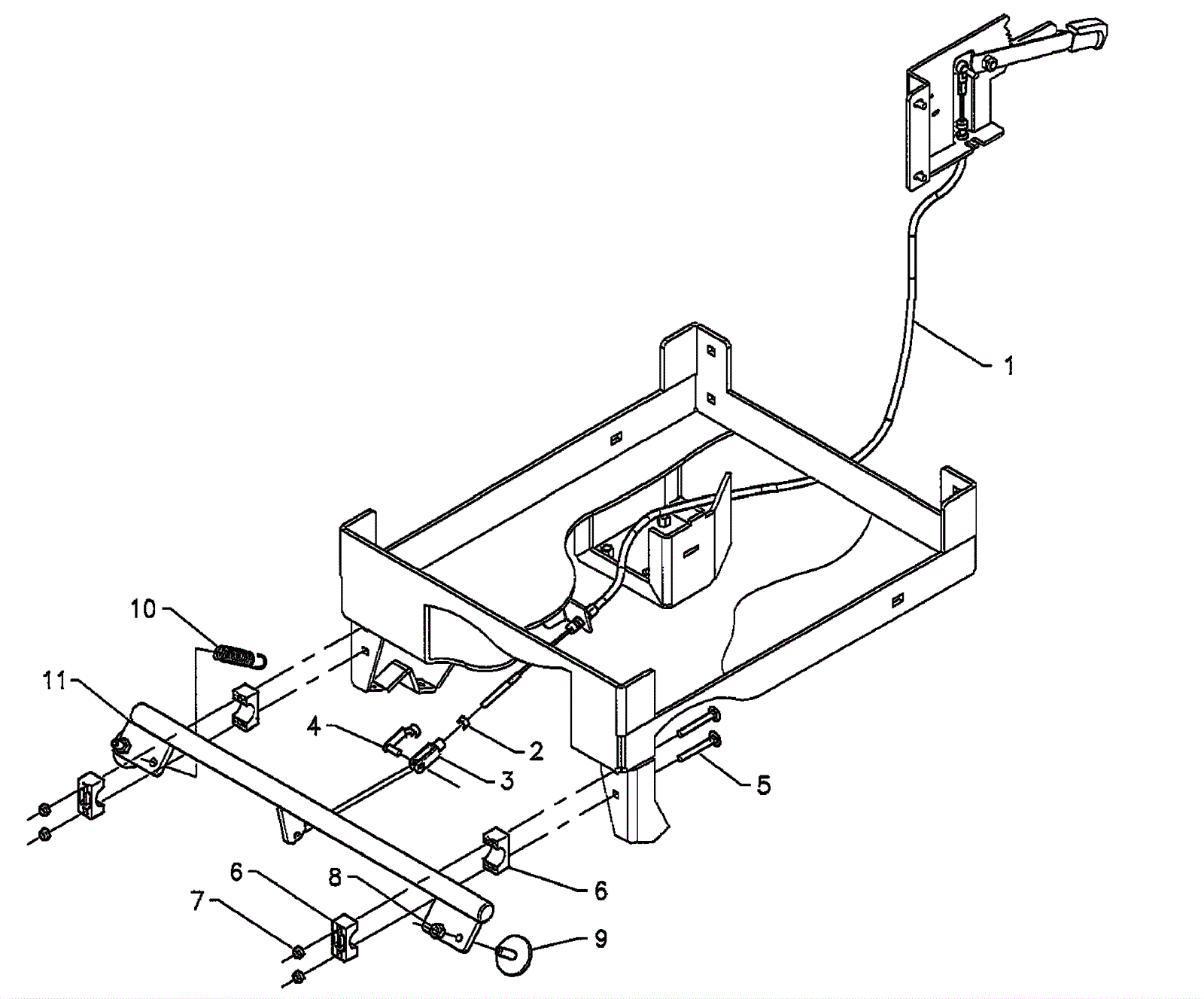

Brake Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1
183-9196
Break cable
$27.00
1
usually ships 9-20 days
2
183-9157
Nut
$1.23
1
usually ships 9-20 days
3
183-9197
Fork
$5.53
1
usually ships 9-20 days
4
183-7638
Fork clip
$2.95
1
usually ships 9-20 days
5a
183-8526
Screw M6 x 14
$1.23
4
ships same day
5b
183-8526
Screw M6 x 14
$1.23
4
ships same day
6
183-7613
Base control holder
$6.69
4
usually ships 9-20 days
7
183-8271
Nut INOX
$1.23
4
usually ships 9-20 days
8a
183-9128
Nut
$1.23
2
usually ships 9-20 days
8b
183-9198
Nut INOX
$1.23
2
(from S/N 16003212)
usually ships 9-20 days
9a
183-9199
Brake pad
$14.63
2
usually ships 9-20 days
9b
183-7639
Brake pad
Call for price
2
(from S/N 16003212)
usually ships 9-20 days
10
183-9200
Traction spring
$17.66
1
usually ships 9-20 days
11a
183-9201
Brake shaft
$186.00
1
usually ships 9-20 days
11b
183-7640
Brake shaft
Call for price
1
(from S/N 16003212)
usually ships 9-20 days
