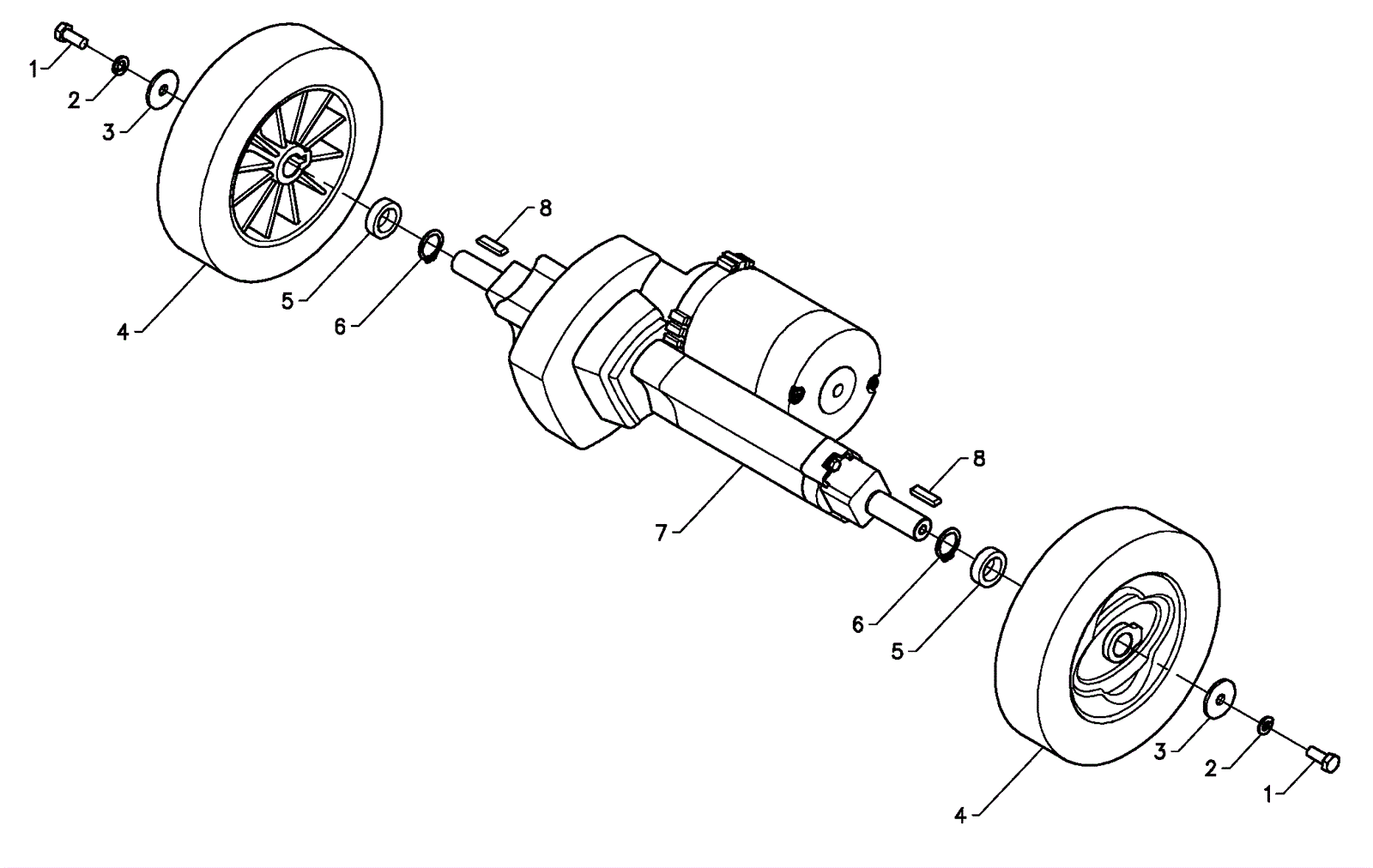

BD 28/20 Traction Assembly After S/N 16003836

#PartDescriptionPriceReqNotesAvailability
1 183-8289 Screw M8 x 20 INOX $1.54 2 usually ships 15-28 days
2 183-8286 Washer INOX $1.54 2 usually ships 15-28 days
3 183-2451 Washer inox $1.54 2 usually ships 15-28 days
4a 183-7634 Washer $115.89 2 usually ships 15-28 days
4b 183-7635 Anti slip wheels $538.69 2 (optional) usually ships 15-28 days
5 183-9192 Spacer $12.03 2 usually ships 15-28 days
6 183-9193 Seeger ring $4.00 2 usually ships 15-28 days
7 183-9195 Geared motor $1,279.81 1 usually ships 15-28 days
8a 183-7636 Key $16.78 2 usually ships 15-28 days
8b 183-7637 Traction motor, wheels, and keys Call for price 1 usually ships 15-28 days
