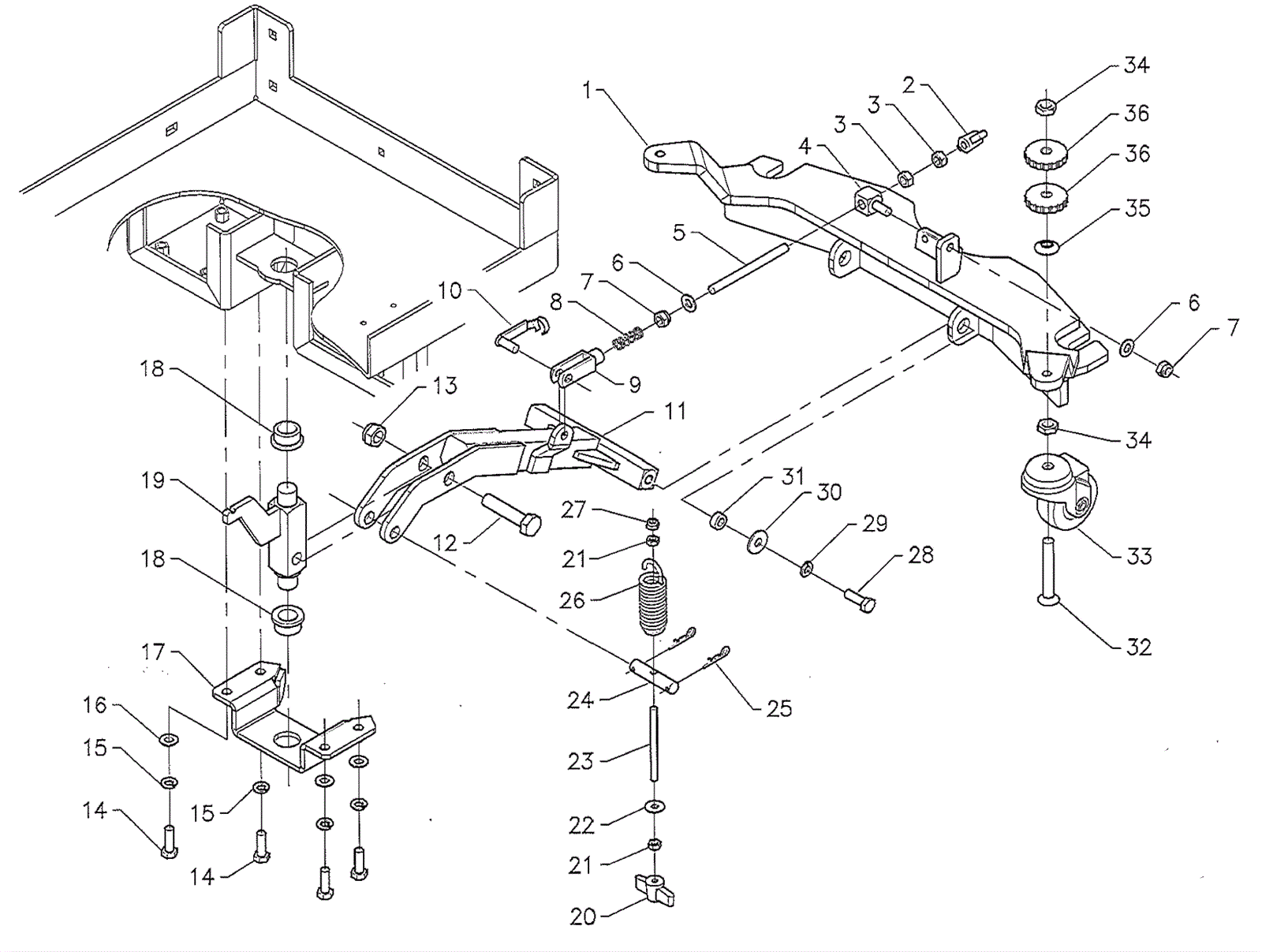

BD 28/20 Squeeegee Control Assembly S/N 15000505-16003000

#PartDescriptionPriceReqNotesAvailability
1a 183-9172 Squeegee support $463.56 1 usually ships 15-28 days
1b 183-7630 Squeegee coupling assembly Call for price 1 usually ships 15-28 days
2 183-8273 Wing nut $3.74 1 usually ships 15-28 days
3 183-9128 Nut $1.54 2 usually ships 15-28 days
4 183-9173 Drilled adjuster $48.08 1 usually ships 15-28 days
5 183-9174 Threaded bar $11.08 1 usually ships 10-16 days
6 183-8260 Washer INOX $1.54 2 usually ships 15-28 days
7 183-9130 Lock nut $1.54 2 ships same day
8 183-9175 Compression spring $6.93 1 usually ships 15-28 days
9 183-9176 Fork long $7.72 1 usually ships 15-28 days
10 183-9177 Fork clip $3.52 1 usually ships 15-28 days
11 183-9178 Squeegee arm $242.28 1 usually ships 15-28 days
12 183-9179 Screw M12 x 55mm $3.08 1 usually ships 15-28 days
13 183-8411 Nut $1.54 1 usually ships 15-28 days
14 183-2584 Screw M8 x 25mm $1.54 4 usually ships 15-28 days
15 183-8286 Washer INOX $1.54 4 usually ships 15-28 days
16 183-8260 Washer INOX $1.54 3 usually ships 15-28 days
17 183-9180 Support arm joint $35.95 1 usually ships 15-28 days
18 183-9181 Bushing $20.38 2 usually ships 15-28 days
19 183-9182 Arm joint $88.94 1 usually ships 15-28 days
20 183-8435 Wing nut $4.62 1 usually ships 15-28 days
21 183-9157 Nut $1.54 2 usually ships 15-28 days
22 183-8240 Washer INOX $1.54 1 usually ships 15-28 days
23 183-9183 Tie rod $9.13 1 usually ships 15-28 days
24 183-9184 Pressure adjuster pin $17.41 1 usually ships 15-28 days
25 183-9120 Cotter pin $1.54 2 usually ships 15-28 days
26 183-9185 Traction spring $18.99 1 usually ships 15-28 days
27 183-8271 Nut INOX $1.54 1 usually ships 15-28 days
28 183-8289 Screw M8 x 20 INOX $1.54 2 usually ships 15-28 days
29 183-9190 Washer $1.30 2 usually ships 15-28 days
31 183-9186 Bushing $7.13 2 usually ships 15-28 days
32 183-9187 Screw M10 x 80mm $5.69 2 usually ships 15-28 days
33 183-9188 Caster wheel $56.08 2 usually ships 15-28 days
34 183-2456 Nut inox $1.76 4 usually ships 15-28 days
35 183-8398 Conical washer $1.54 2 usually ships 15-28 days
36 183-9189 Handwheel $5.50 4 usually ships 15-28 days
