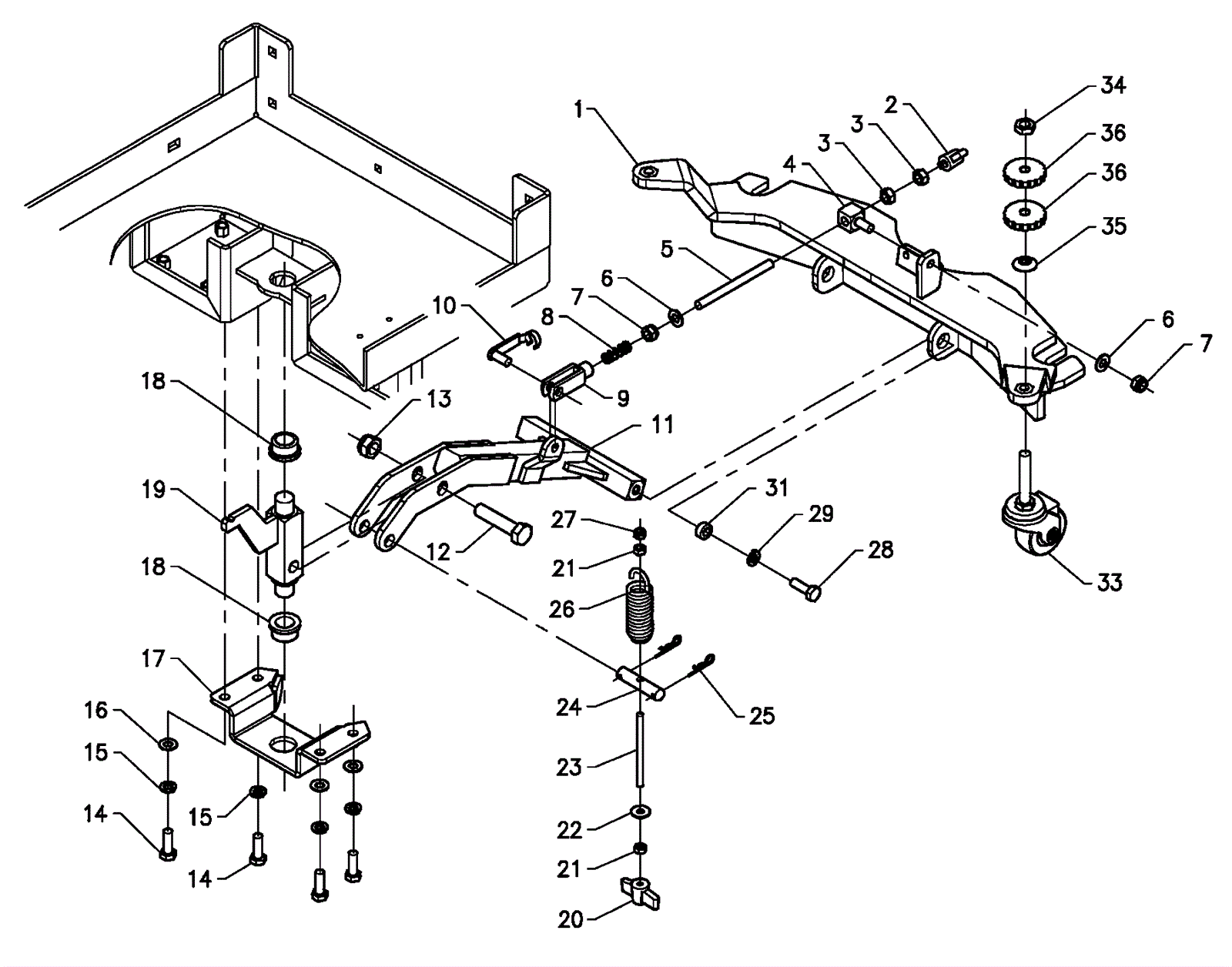

BD 28/20 Squeeegee Control Assembly from S/N 16003001

#PartDescriptionPriceReqNotesAvailability
1 183-7631 Squeegee support $839.29 1 usually ships 8-21 days
2 183-8273 Wing nut $3.56 1 usually ships 8-21 days
3 183-9128 Nut $1.35 2 usually ships 8-21 days
4 183-9173 Drilled adjuster $48.08 1 usually ships 8-21 days
5 183-9174 Threaded bar $11.08 1 usually ships 5-16 days
6 183-8260 Washer INOX $1.35 2 usually ships 8-21 days
7 183-9130 Lock nut $1.35 2 ships same day
8 183-9175 Compression spring $5.68 1 usually ships 8-21 days
9 183-9176 Fork long $7.72 1 usually ships 8-21 days
10 183-9177 Fork clip $3.33 1 usually ships 8-21 days
11 183-9178 Squeegee arm $198.43 1 usually ships 8-21 days
12 183-9179 Screw M12 x 55mm $2.97 1 usually ships 8-21 days
13 183-9127 Lock nut INOX $2.01 1 usually ships 8-21 days
14 183-2584 Screw M8 x 25mm $1.35 4 usually ships 8-21 days
15 183-8286 Washer INOX $1.35 2 usually ships 8-21 days
16 183-8260 Washer INOX $1.35 2 usually ships 8-21 days
17 183-9180 Support arm joint $29.44 1 usually ships 8-21 days
18 183-9181 Bushing $20.38 2 usually ships 8-21 days
19 183-9182 Arm joint $72.84 1 usually ships 8-21 days
20 183-8435 Wing nut $4.35 1 usually ships 8-21 days
21 183-9157 Nut $1.35 2 usually ships 8-21 days
22 183-8240 Washer INOX $1.35 1 usually ships 8-21 days
23 183-9183 Tie rod $9.13 1 usually ships 8-21 days
24 183-9184 Pressure adjuster pin $14.27 1 usually ships 8-21 days
25 183-9120 Cotter pin $1.35 2 usually ships 8-21 days
26 183-9185 Traction spring $18.99 1 usually ships 8-21 days
27 183-8271 Nut INOX $1.35 1 usually ships 8-21 days
28 183-8289 Screw M8 x 20 INOX $1.35 2 usually ships 8-21 days
29 183-9190 Washer $1.30 2 usually ships 8-21 days
31 183-9186 Bushing $7.13 2 usually ships 8-21 days
33 183-7632 Castor wheel $62.95 2 usually ships 8-21 days
34 183-9135 Nut $1.35 2 usually ships 8-21 days
35 183-7633 Washer conical Call for price 2 usually ships 8-21 days
36 183-9189 Handwheel $5.50 4 usually ships 8-21 days
