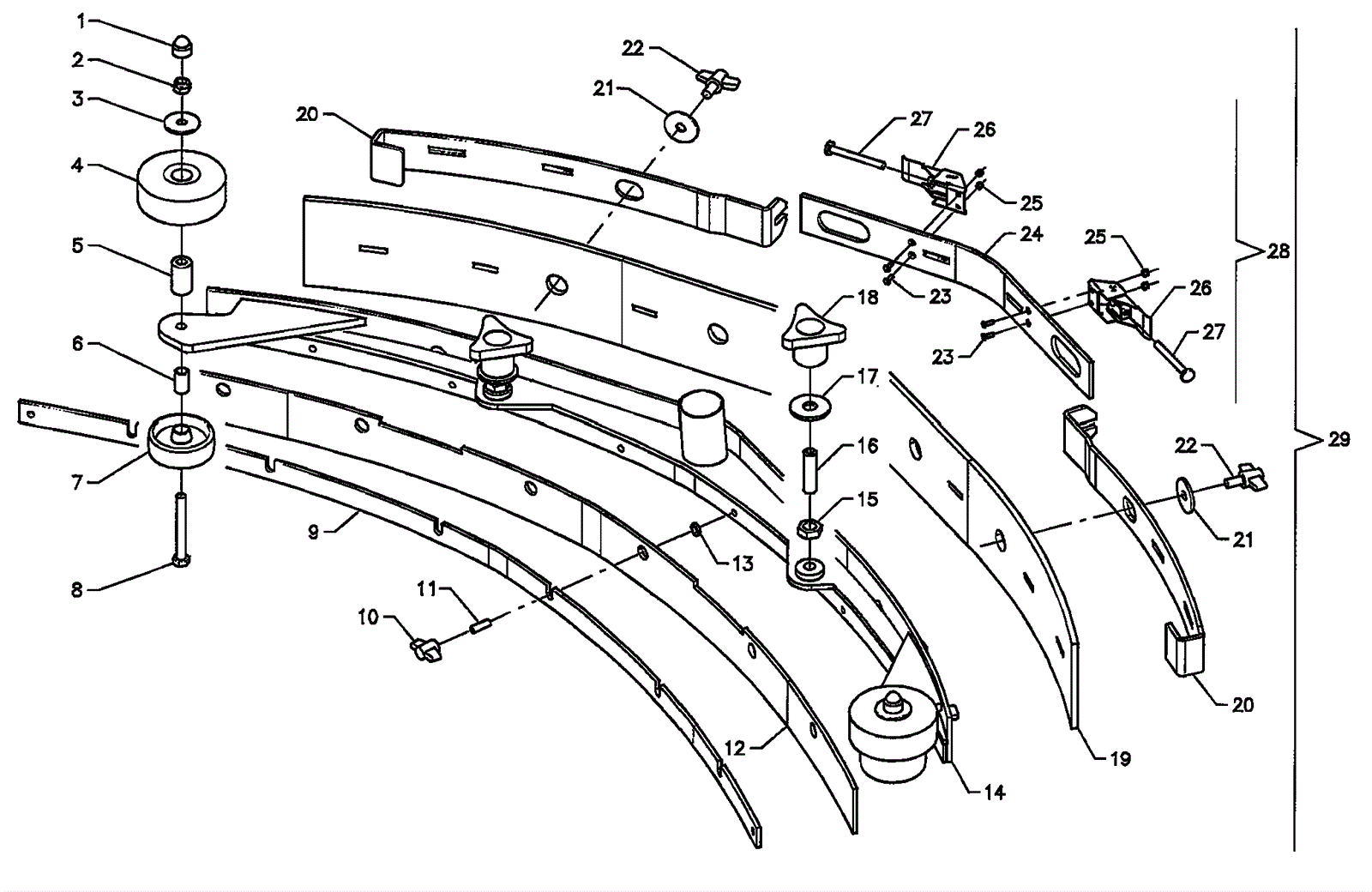

BD 28/20 Squeegee assembly from S/N 15000913

#PartDescriptionPriceReqNotesAvailability
1 183-1995 Nut cover (black) $1.54 2 usually ships 15-28 days
2 183-9130 Lock nut $1.54 2 ships same day
3 183-2451 Washer inox $1.54 2 usually ships 15-28 days
4 183-4706 Bumper wheel $9.59 2 usually ships 15-28 days
5 183-8498 Bushing $8.60 2 usually ships 15-28 days
6 183-9133 Bushing $10.40 2 usually ships 15-28 days
7 183-9132 Bumper wheel $19.48 2 usually ships 15-28 days
8 183-9131 Screw M8 x 70mm $2.86 2 usually ships 15-28 days
9 183-7624 Rubber blade front $229.34 1 usually ships 15-28 days
10 183-2305 Wing nut $4.84 6 usually ships 15-28 days
11 183-7625 Dowel Call for price 6 usually ships 15-28 days
12 183-9148 Squeegee blade 990mm front $59.49 1 usually ships 15-28 days
13 183-8214 Nut $1.54 6 usually ships 15-28 days
14 183-7626 Squeegee body $1,255.72 1 usually ships 15-28 days
15 183-9135 Nut $1.54 2 usually ships 15-28 days
16 183-7627 Dowel $5.50 2 usually ships 15-28 days
17 183-9138 Washer $2.86 2 usually ships 15-28 days
18 183-9139 Handwheel $15.50 2 usually ships 15-28 days
19 183-9149 Squeegee blade 990mm rear $113.49 2 usually ships 15-28 days
20 183-7628 Blade coupler rear Call for price 2 usually ships 15-28 days
21 183-2451 Washer inox $1.54 2 usually ships 15-28 days
22 183-7623 Wing nut $10.12 2 usually ships 15-28 days
23 183-2459 Screw M3 x 10mm $1.54 4 usually ships 15-28 days
24 183-9150 Center rear blade bracket $68.96 1 usually ships 15-28 days
25 183-2463 Lock nut inox $2.42 4 usually ships 15-28 days
26 183-9142 Adjustable latch $29.35 2 usually ships 15-28 days
27 183-9143 Screw M6 x 60mm $1.98 2 usually ships 15-28 days
28 183-9143 Screw M6 x 60mm $1.98 1 (includes 23-27) usually ships 15-28 days
29 183-9147 990mm squeegee assembly $1,294.02 1 (includes 1-27) usually ships 15-28 days
