BD 28/20

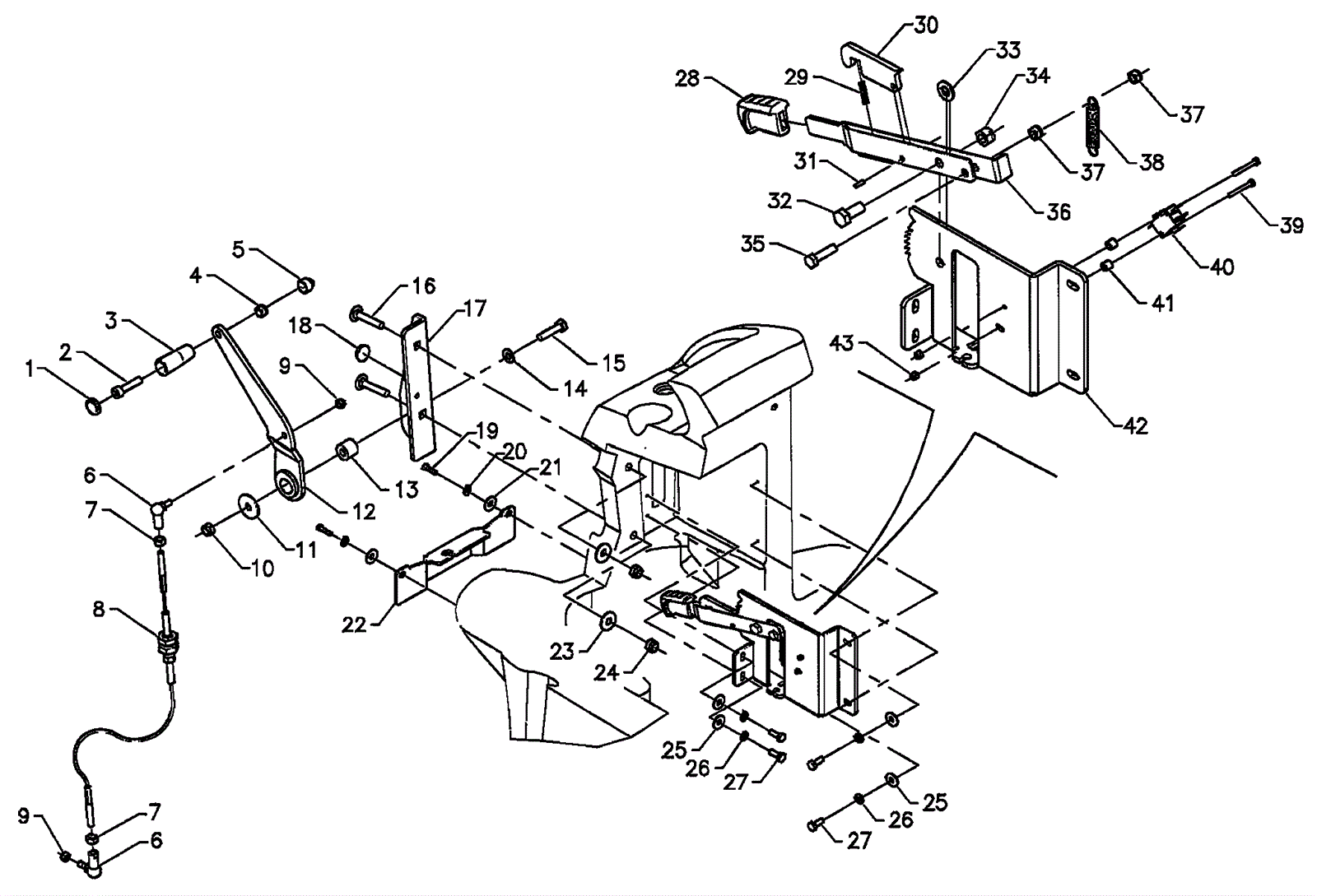

Control Levers
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1
183-9153
Knob cap
$0.90
1
usually ships 9-20 days
2
183-9154
Screw M8 x 35mm
$1.25
1
usually ships 9-20 days
3
183-9155
Cylindrical knob
$3.55
1
usually ships 9-20 days
5
183-1995
Nut cover (black)
$1.23
1
usually ships 9-20 days
6
183-9156
Angular joint
$11.91
2
usually ships 9-20 days
7
183-9157
Nut
$1.23
2
usually ships 9-20 days
8
183-9158
Squeegee lift cable
$35.13
1
usually ships 9-20 days
9
183-8271
Nut INOX
$1.23
2
usually ships 9-20 days
12
183-9159
Squeegee control lever
$74.20
1
usually ships 9-20 days
13
183-9160
Bushing
$12.51
1
usually ships 9-20 days
14
183-8307
Washer
$5.17
1
usually ships 9-20 days
15
183-2546
Screw M8 x 35mm
$1.23
1
usually ships 9-20 days
16
183-9161
Screw M8 x45mm
$1.31
2
usually ships 9-20 days
17
183-9162
Squeegee support lever
$18.30
1
usually ships 9-20 days
18
183-9163
Adhesive plastic cup
$3.12
1
usually ships 9-20 days
19
183-9164
Screw M6 x 14mm
$1.18
2
usually ships 9-20 days
20a
183-8523
Lock washer
$1.18
1
usually ships 9-20 days
20b
190-0269
Washer 1/4 spring lock
$1.18
1
ships same day
21
183-8393
Washer
$1.23
2
usually ships 9-20 days
22
183-9165
Cable fixing bar
$8.43
1
usually ships 9-20 days
23
183-8294
Washer
$1.23
2
usually ships 9-20 days
26a
183-8523
Lock washer
$1.18
4
usually ships 9-20 days
26b
190-0269
Washer 1/4 spring lock
$1.18
4
ships same day
28
183-9166
Brake control knob
$3.33
1
usually ships 9-20 days
29
183-9167
Compression spring
$3.43
1
usually ships 9-20 days
30
183-9168
Blocking lever
$4.49
1
usually ships 9-20 days
31
183-9169
Parallel pin
$1.23
1
usually ships 9-20 days
32
183-2473
Screw M8 x 20mm
$1.23
1
usually ships 9-20 days
33
183-8307
Washer
$5.17
1
usually ships 9-20 days
35
183-8512
Screw M6 x 25
$1.23
1
usually ships 9-20 days
37
183-8256
Nut
$1.23
2
usually ships 9-20 days
38
183-2633
Traction spring
$7.06
1
ships same day
39
183-8345
Screw M3 x 25
$1.23
2
usually ships 9-20 days
40
183-9170
10amp microswitch
$9.87
1
usually ships 9-20 days
41
183-8211
Spacer
$1.23
2
usually ships 9-20 days
42
183-9171
Brake lever support
$29.58
1
usually ships 9-20 days
43
183-8357
Nut
$1.23
2
usually ships 9-20 days
