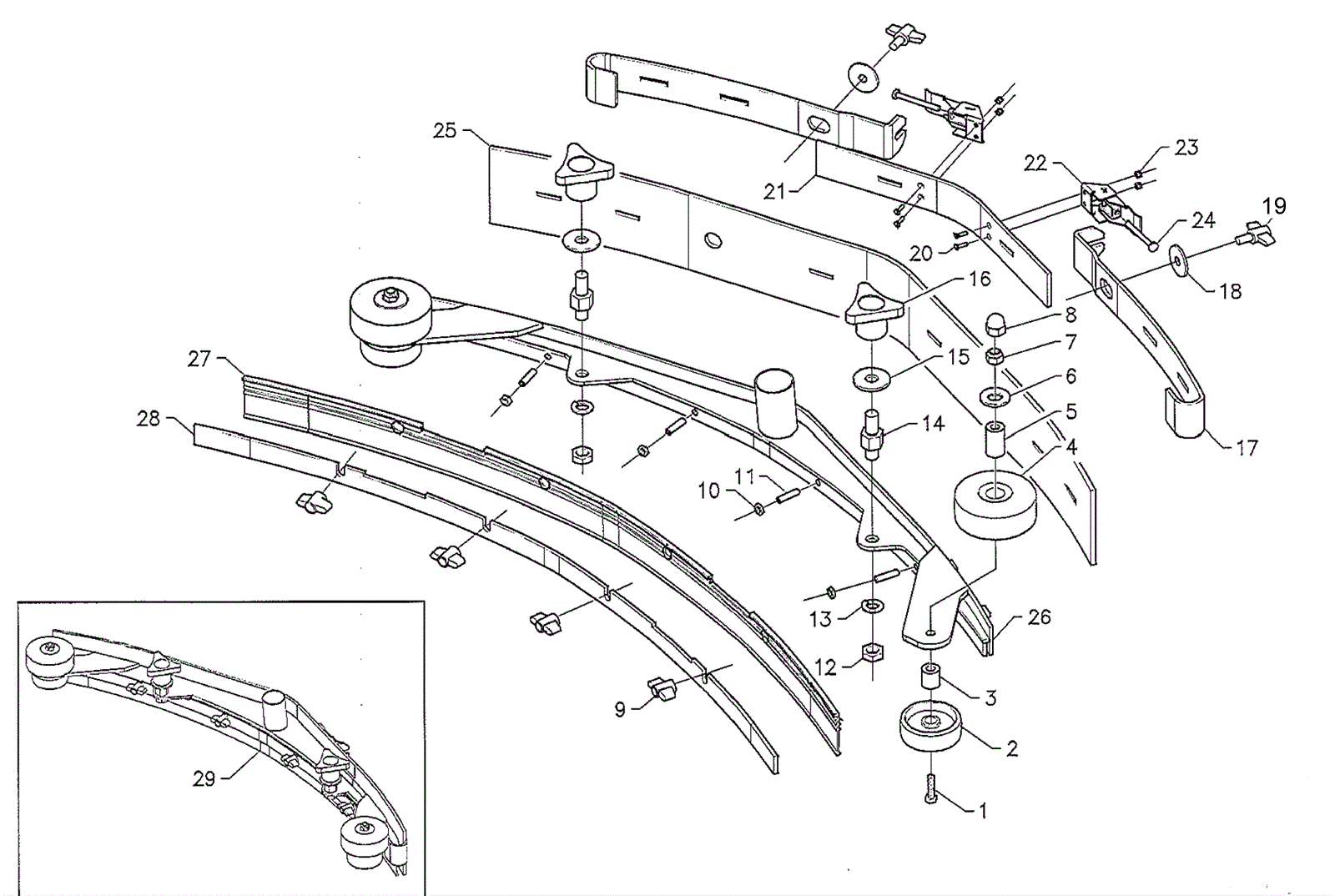

BD 28/20 Squeegee assembly up to S/N 15000812

#PartDescriptionPriceReqNotesAvailability
1 183-9131 Screw M8 x 70mm $2.77 2 usually ships 8-21 days
2 183-9132 Bumper wheel $19.48 2 usually ships 8-21 days
3 183-9133 Bushing $10.40 2 usually ships 8-21 days
4 183-4706 Bumper wheel $9.59 2 usually ships 8-21 days
5 183-8498 Bushing $8.60 2 usually ships 8-21 days
6 183-2451 Washer inox $1.35 2 usually ships 8-21 days
7 183-9130 Lock nut $1.35 2 ships same day
8 183-1995 Nut cover (black) $1.35 2 usually ships 8-21 days
9 183-2305 Wing nut $4.66 4 usually ships 8-21 days
10 183-8214 Nut $1.35 4 usually ships 8-21 days
11 183-9134 Dowel $1.63 4 usually ships 8-21 days
12 183-9135 Nut $1.35 2 usually ships 8-21 days
13 183-9136 Lock washer $1.35 2 usually ships 8-21 days
14 183-9137 Stud bolt $43.79 2 usually ships 8-21 days
15 183-9138 Washer $2.70 2 usually ships 8-21 days
16 183-9139 Handwheel $15.50 2 usually ships 8-21 days
17 183-9140 Rear blade coupler $65.96 2 usually ships 8-21 days
18 183-2451 Washer inox $1.35 2 usually ships 8-21 days
19 183-7623 Wing nut $10.12 2 usually ships 8-21 days
20 183-2459 Screw M3 x 10mm $1.35 4 usually ships 8-21 days
21 183-9141 Center rear blade bracket $77.07 1 usually ships 8-21 days
22 183-9142 Adjustable latch $29.35 2 usually ships 8-21 days
23 183-2463 Lock nut inox $2.24 4 usually ships 8-21 days
24 183-9143 Screw M6 x 60mm $1.72 2 usually ships 8-21 days
25 183-2307 Squeegee blade rear $61.28 1 usually ships 8-21 days
26 183-9144 Squeegee body $557.96 1 usually ships 8-21 days
27 183-2306 Squeegee blade front $53.58 1 usually ships 8-21 days
28 183-9145 Front squeegee blade $47.29 1 usually ships 8-21 days
29.a 183-9146 835mm squeegee assembly $1,376.55 1 usually ships 8-21 days
29.b 183-9147 990mm squeegee assembly $1,294.02 1 usually ships 8-21 days
