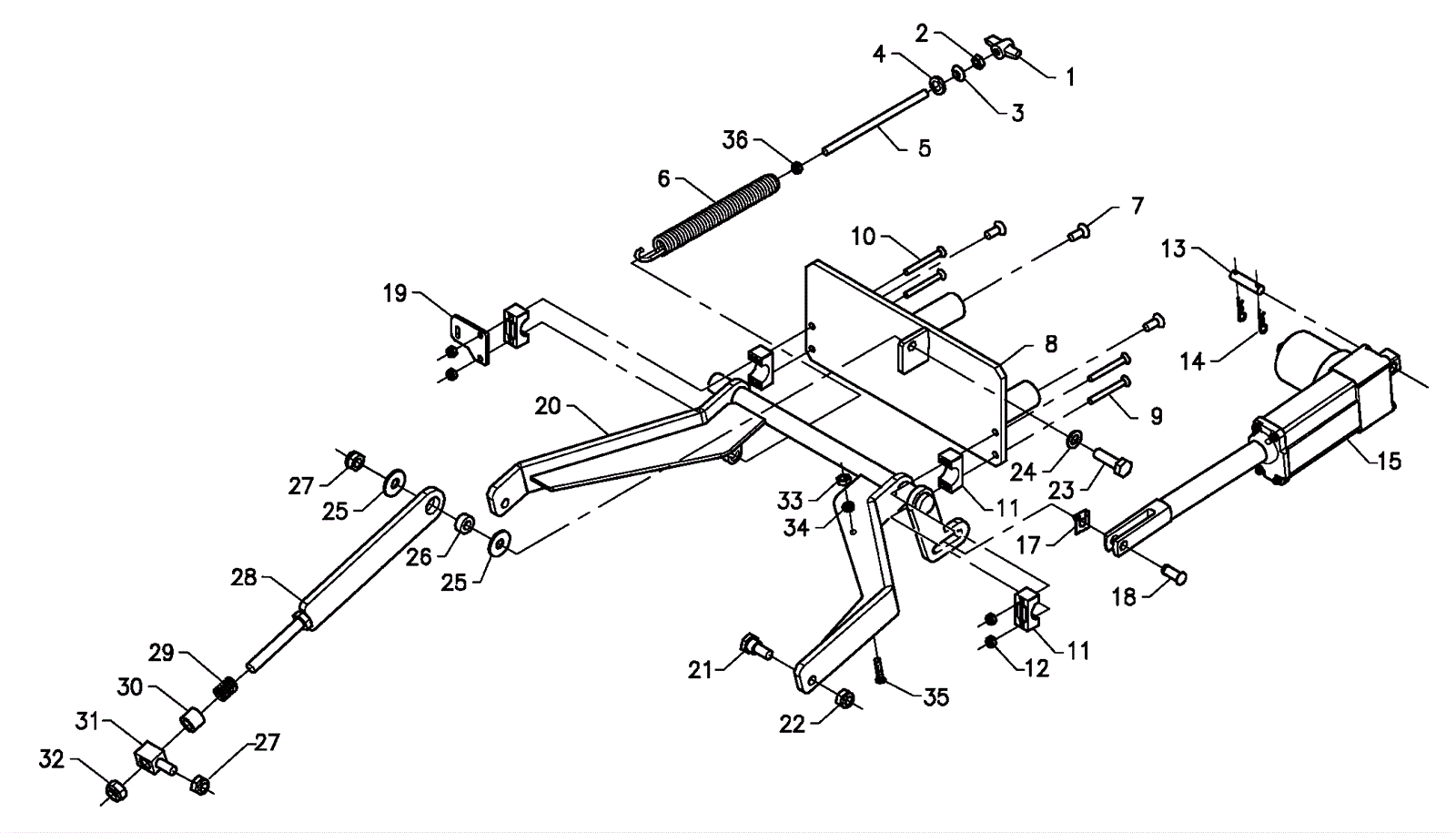

BD 28/20 Brush Base Control

#PartDescriptionPriceReqNotesAvailability
1 183-4768 Wing nut $4.04 1 (Wing nut) usually ships 9-20 days
2 183-8267 Nut INOX $1.23 1 Nut usually ships 9-20 days
3 183-4766 Spherical bushing $11.23 1 Spherical bushing usually ships 9-20 days
4 183-9116 Spherical bushing bracket $18.69 1 Spherical bushing bracket usually ships 9-20 days
5 183-9117 Tie rod M8 x 150mm $14.26 1 Tie rod M8 x 150mm usually ships 9-20 days
6 183-7609 Traction spring with insert $75.00 1 usually ships 9-20 days
7 183-7610 Screw M8 x 20mm Call for price 3 usually ships 9-20 days
8 183-7611 Plate $395.35 1 usually ships 9-20 days
9 183-7612 Screw M6 x 50mm Call for price 2 usually ships 9-20 days
10 183-9118 Screw M6 x 55 mm $3.22 2 Screw M6 x 55 mm usually ships 9-20 days
11 183-7613 Base control holder $6.69 4 usually ships 9-20 days
12 183-8271 Nut INOX $1.23 4 Nut usually ships 9-20 days
13 183-9119 Actuator pin $12.45 1 Actuator pin usually ships 9-20 days
14 183-9120 Cotter pin $1.23 2 Cotter pin usually ships 9-20 days
15 183-7614 24V actuator $963.56 1 usually ships 9-20 days
17 183-7615 Spring clip $5.00 1 usually ships 9-20 days
18 183-7616 Pin $8.15 1 usually ships 9-20 days
19 183-7617 Spring coupler $6.93 1 usually ships 9-20 days
20 183-9121 Base control arm $198.28 1 Base control arms usually ships 9-20 days
21 183-7618 Arms stud bolts (OBSOLETE) $18.34 2 usually ships 9-20 days
22 183-9122 Lock nut $3.52 2 Lock nut usually ships 9-20 days
23 183-9123 Screw M10 x 35mm $3.29 1 Screw M10 x 35mm usually ships 9-20 days
24 183-8399 Washer $1.23 1 Washer usually ships 9-20 days
25 183-9124 Washer $1.23 2 Washer usually ships 9-20 days
26 183-7619 Bushing (OBSOLETE) Call for price 1 usually ships 9-20 days
27 183-9122 Lock nut $3.52 2 Locknut usually ships 9-20 days
28 183-9126 Arm $25.11 1 Arm usually ships 9-20 days
29 183-8429 Compression spring $3.38 1 Spring usually ships 9-20 days
30 183-7620 Spacer (OBSOLETE) Call for price 1 usually ships 9-20 days
31 183-7621 Arm adjuster (OBSOLETE) Call for price 1 usually ships 9-20 days
32 183-9127 Lock nut INOX $1.83 1 Locknut usually ships 9-20 days
33 183-9128 Nut $1.23 1 Nut usually ships 9-20 days
34 183-8286 Washer INOX $1.23 1 Washer usually ships 9-20 days
35 183-9129 Screw M8 x 25mm $1.23 1 Screw M8 x 25 mm usually ships 9-20 days
36 183-9130 Lock nut $1.23 1 Locknut usually ships 9-20 days
37 183-7622 Actuator fork $69.29 1 usually ships 9-20 days
