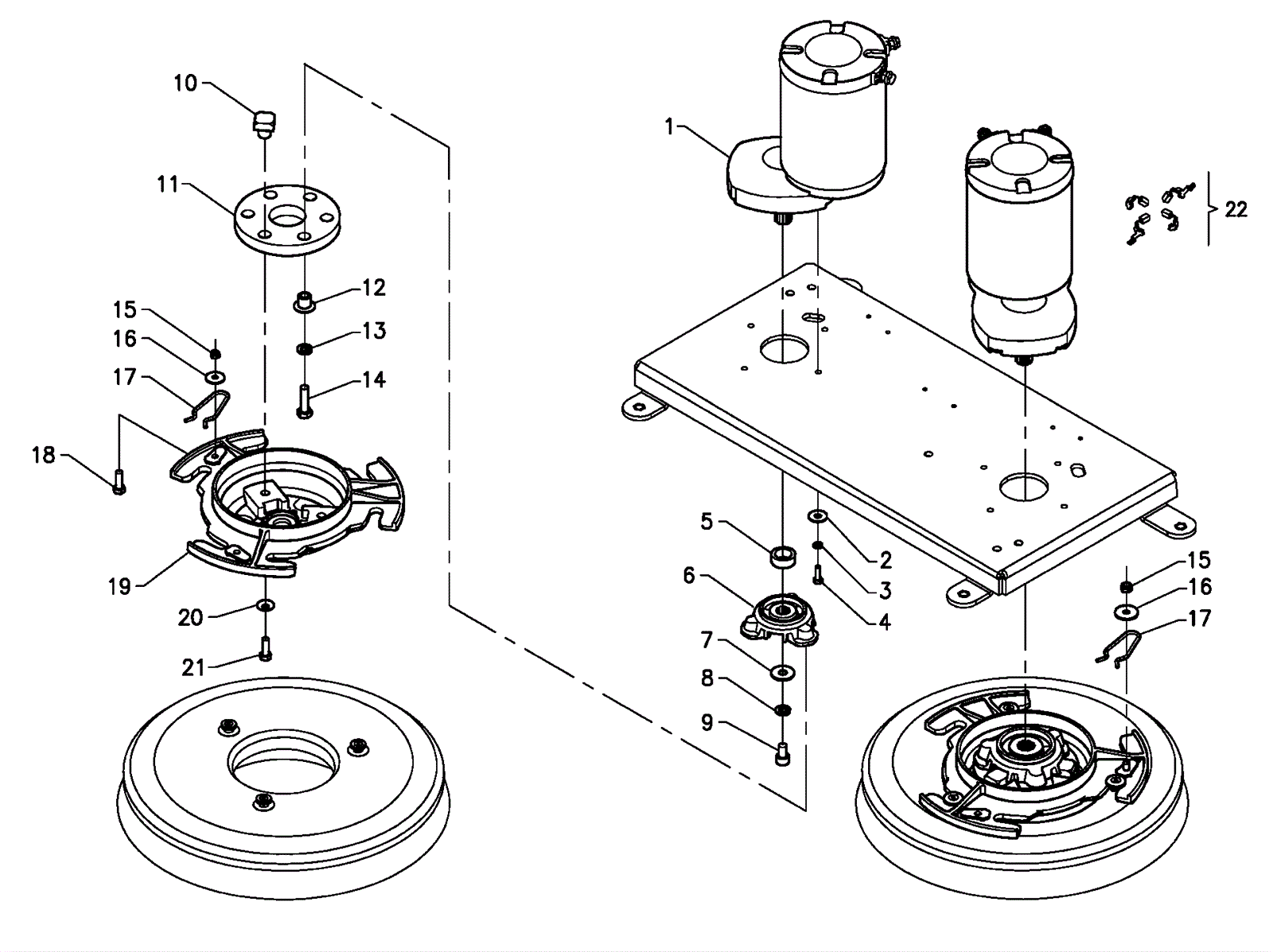

BD 28/20
Brush Transmisson
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1
183-1997
Brush motor
$992.04
2
usually ships 9-20 days
2
183-2580
Washer INOX
$1.23
8
usually ships 9-20 days
3
183-2578
Lock washer
$1.23
8
usually ships 9-20 days
4
183-3179
Screw M5 x 16mm
$1.23
8
usually ships 9-20 days
5
183-2574
Spacer
$8.53
2
usually ships 9-20 days
6
183-2575
Flange
$27.01
2
usually ships 9-20 days
8
183-8286
Washer INOX
$1.23
2
usually ships 9-20 days
9
183-2576
Screw M8 x 14mm
$2.02
2
usually ships 9-20 days
10
183-1998
Bushing
$14.04
6
usually ships 9-20 days
11
183-1999
Flexible coupling
$32.48
2
usually ships 9-20 days
12
183-9115
Bushing
$10.89
6
usually ships 9-20 days
13
183-8286
Washer INOX
$1.23
6
usually ships 9-20 days
14
183-9104
Screw M8 x 30mm INOX
$1.23
8
usually ships 9-20 days
15
183-8271
Nut INOX
$1.23
2
usually ships 9-20 days
17
183-2490
Brush block spring
$5.89
2
usually ships 9-20 days
18
183-8526
Screw M6 x 14
$1.23
2
ships same day
19
183-4721
Clutch plate
$32.00
2
usually ships 9-20 days
20
183-8415
Conical washer
$1.23
6
usually ships 9-20 days
21
183-2584
Screw M8 x 25mm
$1.23
6
usually ships 9-20 days
22
183-7608
Carbon brush
$32.79
1
usually ships 9-20 days
