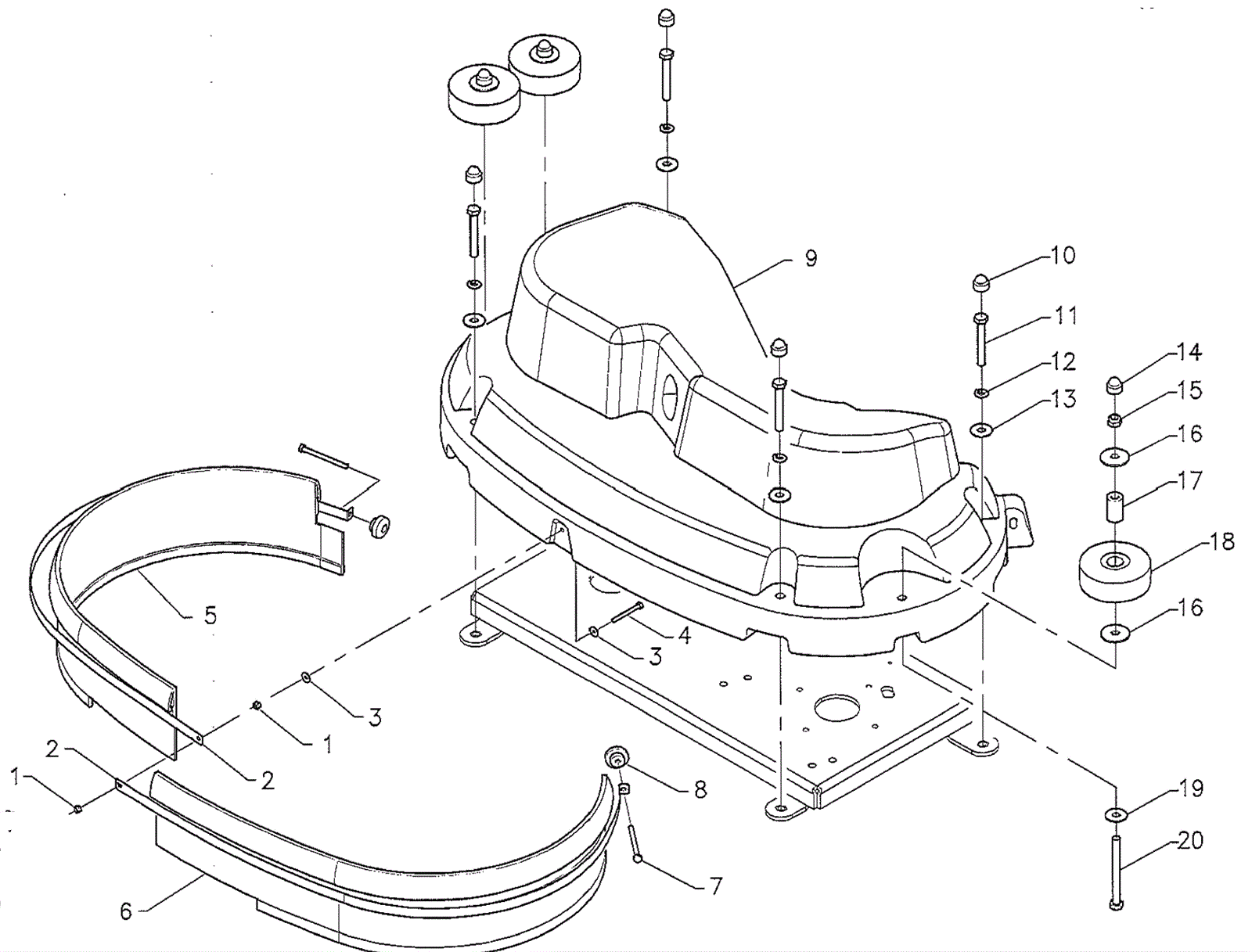

BD 28/20 Cover Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-3233 Lock nut $1.23 2 Lock nut usually ships 9-20 days
2 183-9110 Splash guard blade $17.58 2 Splash guard blade usually ships 9-20 days
3 183-8482 Washer $1.23 2 Washer usually ships 9-20 days
4 183-9111 Screw M4 x 40mm $1.48 1 Screw M4 x 40mm usually ships 9-20 days
5 183-2309 Right hand splash guard $50.47 1 Right splash guard usually ships 9-20 days
6 183-2310 Left hand splash guard $50.47 1 Left splash guard usually ships 9-20 days
7 183-9112 Screw M5 x 60mm $1.23 2 Screw M5 x 60mm usually ships 9-20 days
8 183-9113 Handwheel $3.93 2 Handwheel usually ships 9-20 days
9 183-9114 Base brush cover $332.68 1 Brush base cover usually ships 9-20 days
10 183-1995 Nut cover (black) $1.23 4 Black nut cover usually ships 9-20 days
11 183-2450 Screw M8 x 60mm $2.20 4 Screw M8 x 60mm usually ships 9-20 days
12 183-8286 Washer INOX $1.23 4 Lock washer usually ships 9-20 days
14 183-1995 Nut cover (black) $1.23 3 Black nut cover usually ships 9-20 days
16 183-2451 Washer inox $1.23 6 Washer usually ships 9-20 days
17 183-8498 Bushing $7.82 3 Bushing usually ships 9-20 days
18 183-4706 Bumper wheel $8.72 3 Bumper wheel (gray) usually ships 9-20 days
20 183-1996 Screw M8 x 90mm $4.39 3 Screw M8 x 90mm usually ships 9-20 days
