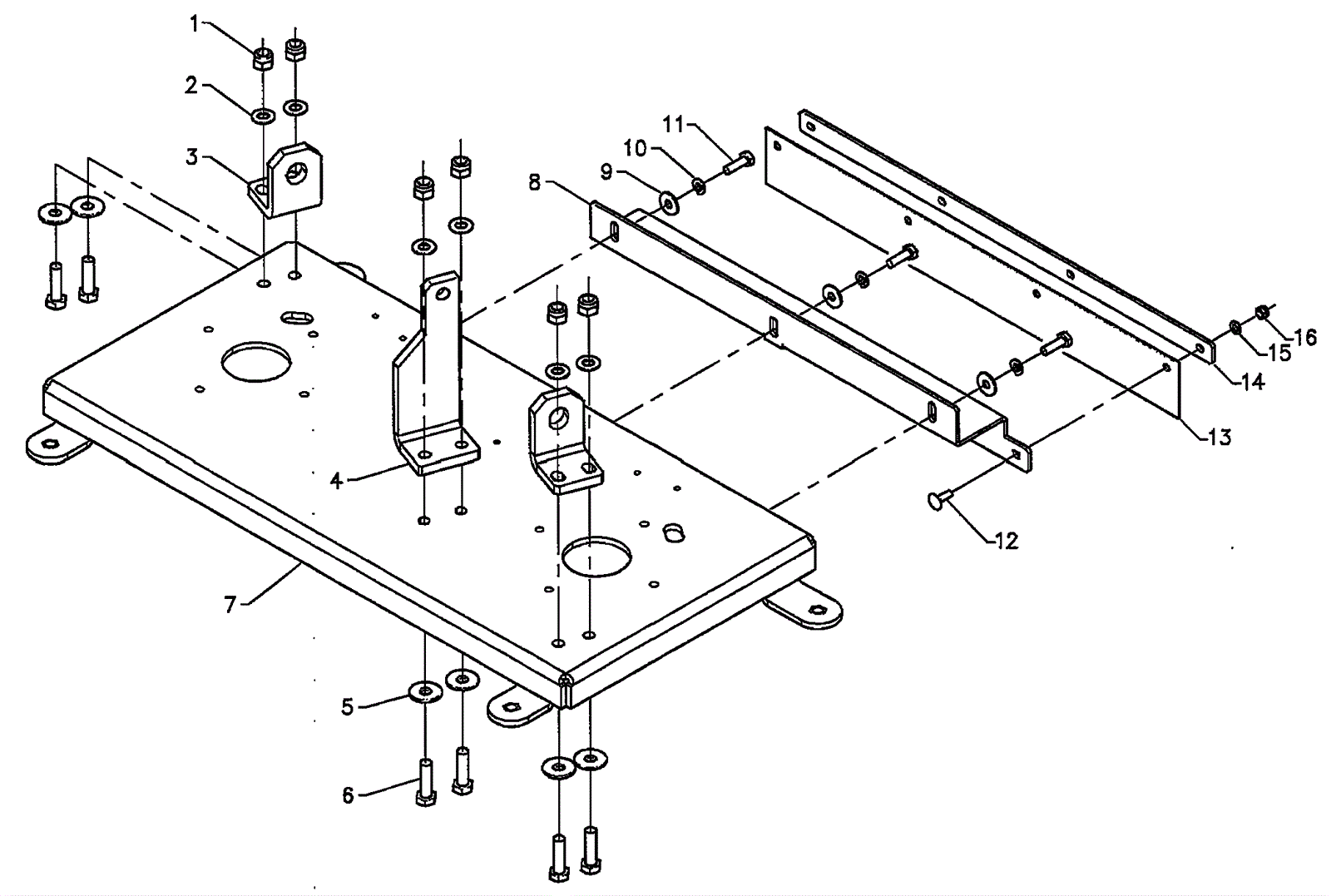

BD 28/20 Brush Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-8291 Nut INOX $1.54 6 usually ships 15-28 days
2 183-8260 Washer INOX $1.54 6 usually ships 15-28 days
3 183-9102 Base coupling $18.25 2 usually ships 15-28 days
4 183-9103 Support $26.25 1 usually ships 15-28 days
6 183-9104 Screw M8 x 30mm INOX $1.54 6 usually ships 15-28 days
7 183-9105 Brush base $309.06 1 usually ships 15-28 days
8 183-9106 Rear splash guard support $37.99 1 usually ships 15-28 days
9 183-8240 Washer INOX $1.54 3 usually ships 15-28 days
11 183-2597 Screw M6 x 20mm $1.54 3 usually ships 15-28 days
12 183-2627 Screw M5 x 16mm $2.42 4 usually ships 15-28 days
13 183-9107 Rear splash guard (OBSOLETE) $12.20 1 usually ships 15-28 days
14 183-9108 Rear splash guard blade $26.94 1 usually ships 15-28 days
15 183-2610 Washer $1.54 4 usually ships 15-28 days
16 183-8279 Nut INOX $1.54 4 usually ships 15-28 days
