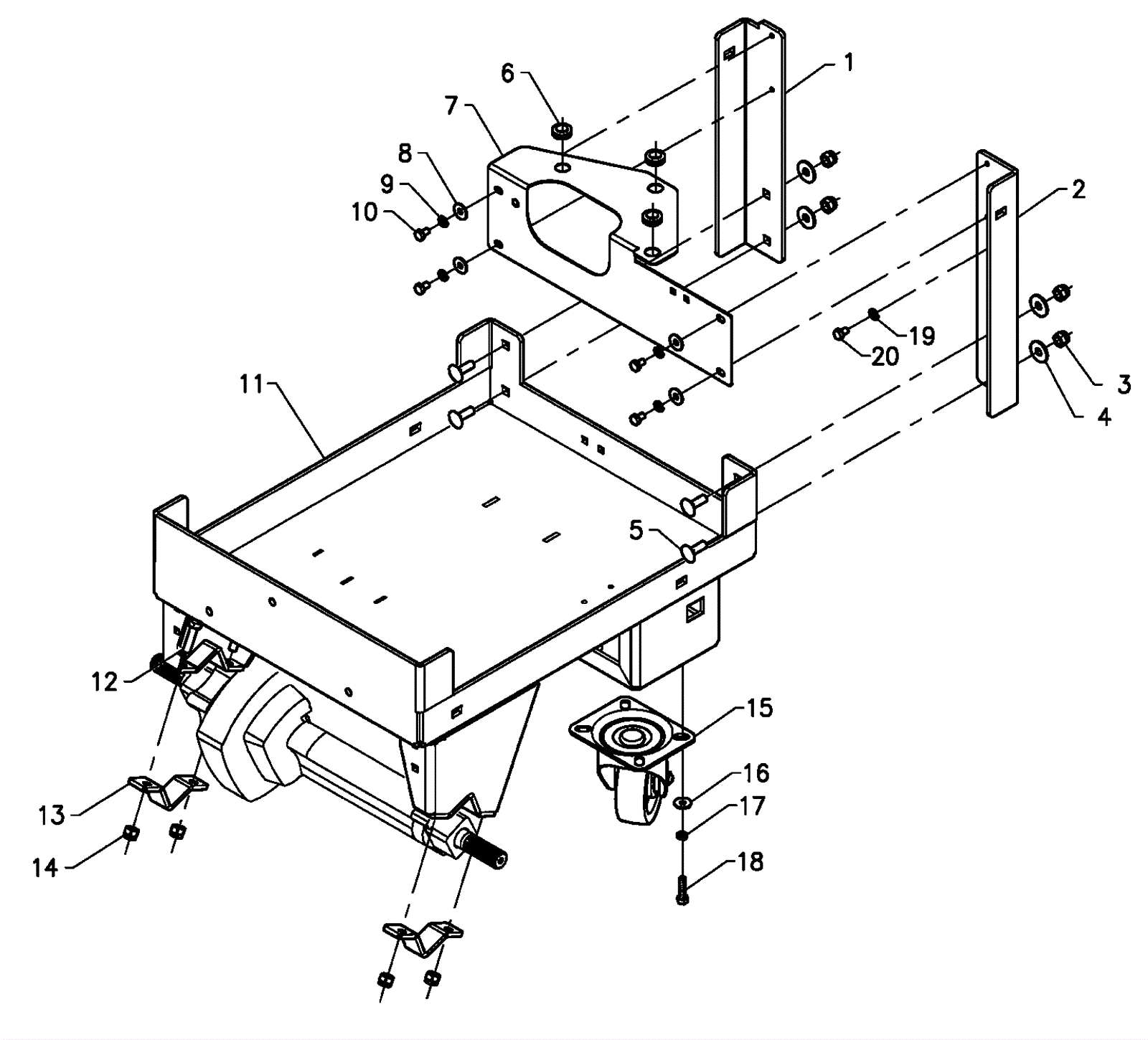

BD 28/20 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-7604 Right hand frame post Call for price 1 usually ships 8-21 days
2 183-7605 Left hand frame post Call for price 1 usually ships 8-21 days
3 183-8404 Nut $1.35 4 usually ships 8-21 days
4 183-8294 Washer $1.35 4 usually ships 8-21 days
5 183-9129 Screw M8 x 25mm $1.35 4 usually ships 8-21 days
6 183-9099 Fairlead $2.18 3 usually ships 8-21 days
7 183-7606 Motor support suction Call for price 1 usually ships 8-21 days
8 183-8240 Washer INOX $1.35 4 usually ships 8-21 days
10 183-9100 Screw M6 x 10mm $1.35 4 usually ships 8-21 days
11 183-7607 Frame Call for price 1 usually ships 8-21 days
12 183-2584 Screw M8 x 25mm $1.35 4 usually ships 8-21 days
14 183-8291 Nut INOX $1.35 4 usually ships 8-21 days
15 183-9101 Caster assembly $142.64 2 ships same day
16 183-8260 Washer INOX $1.35 8 usually ships 8-21 days
17 183-8286 Washer INOX $1.35 8 usually ships 8-21 days
18 183-2584 Screw M8 x 25mm $1.35 8 usually ships 8-21 days
20 183-9100 Screw M6 x 10mm $1.35 1 usually ships 8-21 days
