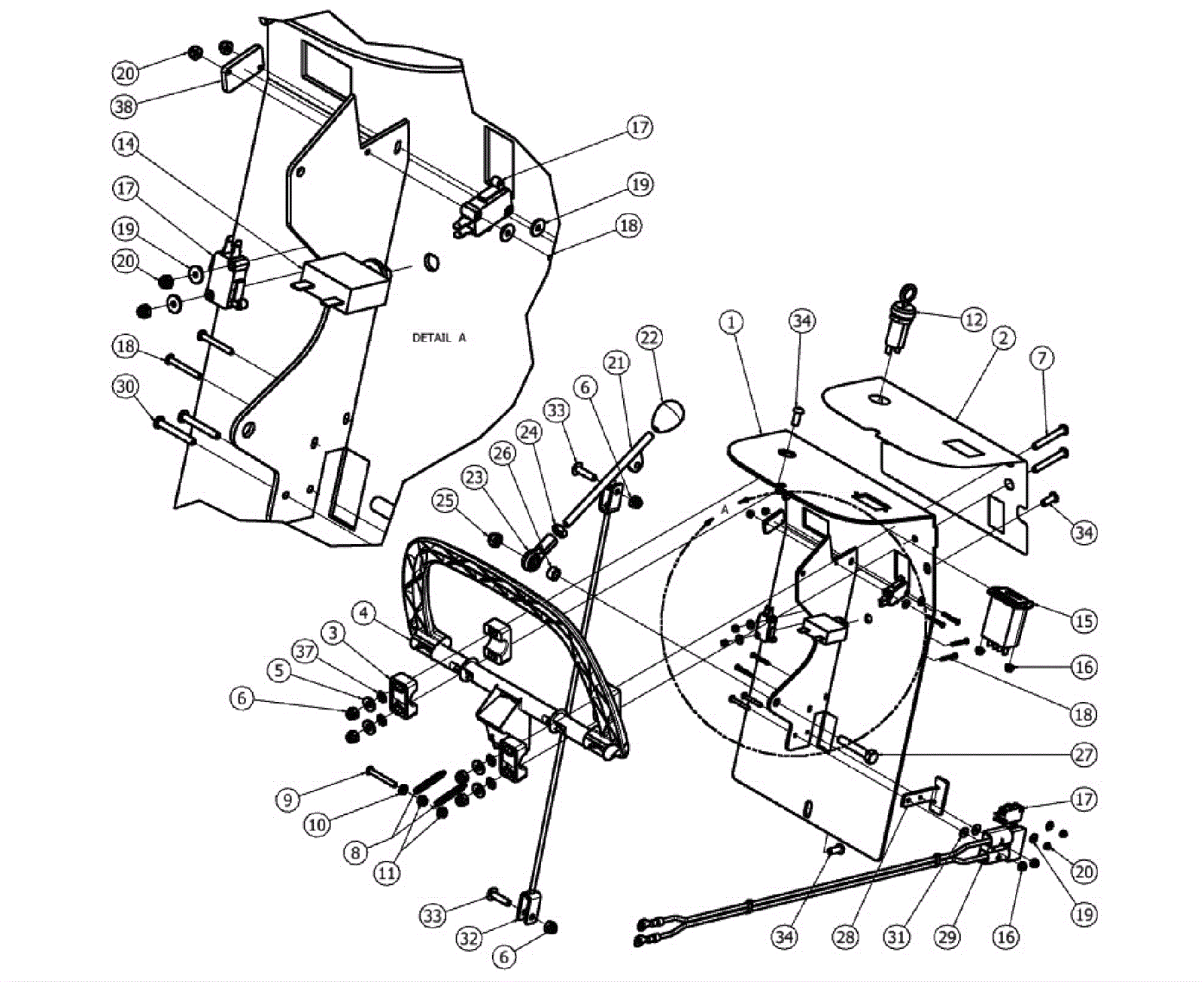

Floorkeeper 20 Controls Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-7689 Control panel $236.86 1 usually ships 15-28 days
2 183-7690 Label $25.63 1 usually ships 15-28 days
3 183-7691 Plastic bearing mount $5.50 4 usually ships 15-28 days
4 183-7692 Bail $34.13 1 usually ships 15-28 days
5 183-7675 Washer Call for price 4 usually ships 15-28 days
6 183-7693 Nylock nut Call for price 6 usually ships 15-28 days
7 183-7694 Screw .1/4 x 1-3/4 inch Call for price 4 usually ships 15-28 days
8 183-7695 Extension spring $41.62 2 usually ships 15-28 days
9 183-7696 Screw #10-32 x 1-1/2 inch Call for price 1 usually ships 15-28 days
10 183-7697 Nut Call for price 1 usually ships 15-28 days
11 183-7680 Nylock nut Call for price 2 usually ships 15-28 days
12 183-7698 Key switch $92.20 1 usually ships 15-28 days
13 183-7699 Replacement key $43.58 1 usually ships 15-28 days
14 183-7700 30amp circuit breaker $40.33 1 usually ships 15-28 days
15 183-7701 Battery meter $304.23 1 usually ships 15-28 days
16 183-7681 Nylock nut $5.08 4 usually ships 15-28 days
17 183-7702 Snap switch with roller $49.94 3 usually ships 15-28 days
18 183-7703 Screw #4-40 x 7/8 inch Call for price 6 usually ships 15-28 days
19 183-7704 Washer Call for price 6 usually ships 15-28 days
20 183-7705 Nylock nut Call for price 6 usually ships 15-28 days
21 183-7706 Squeegee lift lever $178.15 1 usually ships 15-28 days
22 183-7707 Knob $16.41 1 usually ships 15-28 days
23 183-7708 Tie rod end $78.39 1 usually ships 15-28 days
24 183-7709 Nut Call for price 1 usually ships 15-28 days
25 183-7710 Nylock nut Call for price 1 usually ships 15-28 days
26 183-7711 Spacer $27.48 1 usually ships 15-28 days
27 999-0829 Screw 5/16-18 x 1 1/4 hex head plain finish $0.99 1 ships same day
28 183-7713 Bracket $26.05 1 usually ships 15-28 days
29 183-7685 Charger harness $146.80 1 usually ships 15-28 days
30 183-7682 Screw #6-32 x 1 inch Call for price 2 usually ships 15-28 days
31 183-7714 Washer Call for price 4 usually ships 15-28 days
32 183-7715 Cable lift clevis $58.34 1 usually ships 15-28 days
33 183-7716 Screw 1/4-20 x 1 inch $29.71 2 usually ships 15-28 days
34 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 4 ships same day
37 183-7719 External star washer Call for price 4 usually ships 15-28 days
38 183-7720 Mounting plate $41.83 1 usually ships 15-28 days
N/S 183-7717 Signal harness 99120B $245.58 1 usually ships 15-28 days
N/S 183-7718 Power harness 99120B $261.15 1 usually ships 15-28 days
