CVD 30

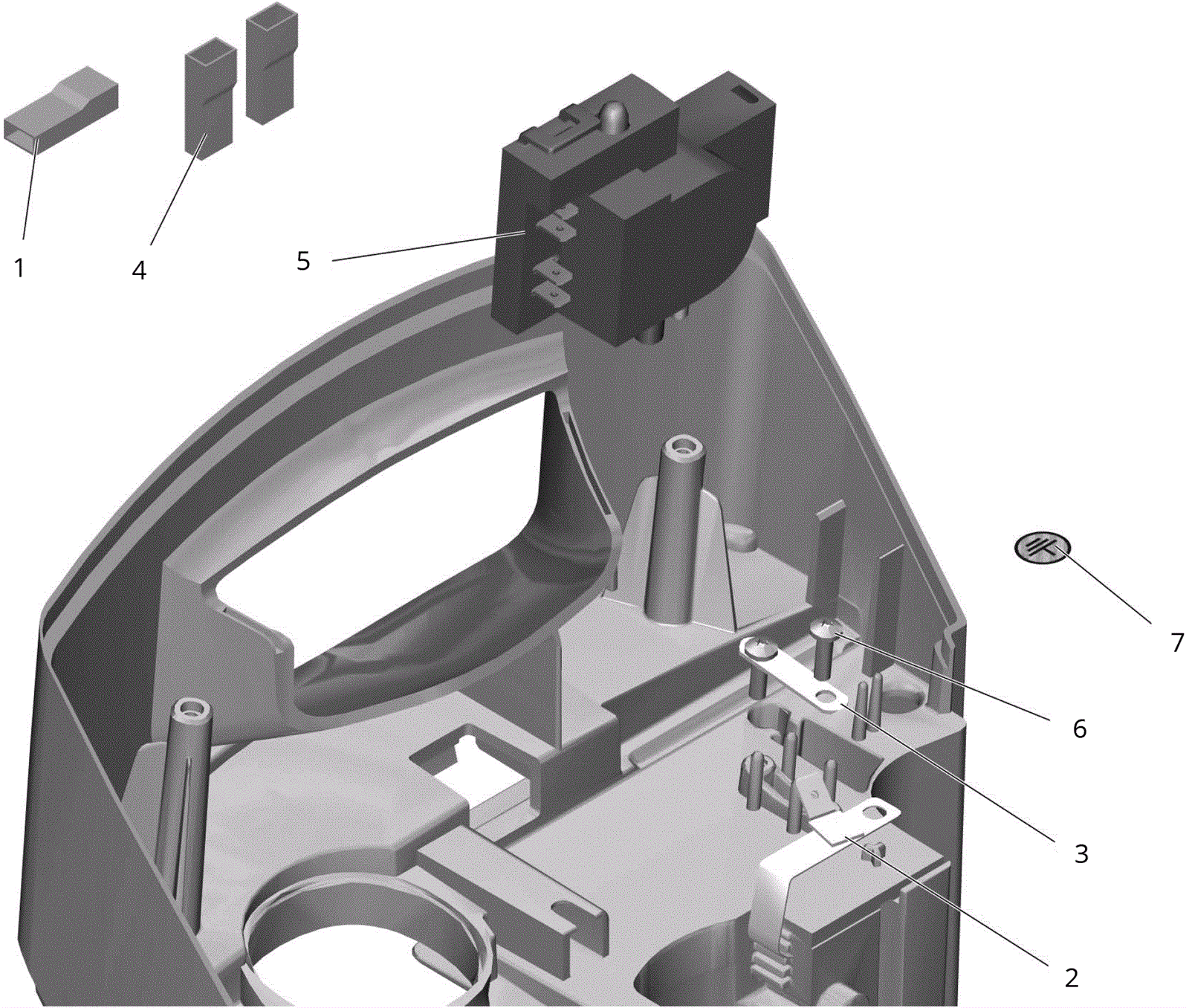

Top Assembly
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1
183-0146
Insulating house
$1.23
1
usually ships 1-5 days
2
183-8134
Spring
$13.64
1
usually ships 8-21 days
3
183-2085
Clamp clip
$4.37
1
ships same day
4
183-9709
Insulation sheath
Call for price
4
usually ships 8-21 days
5
183-8129
Circuit board
$95.52
1
usually ships 8-21 days
6
183-0923
Screw 3.5 x 12
$1.23
2
usually ships 8-21 days
7
183-9710
Ground decal
$1.89
1
usually ships 8-21 days
