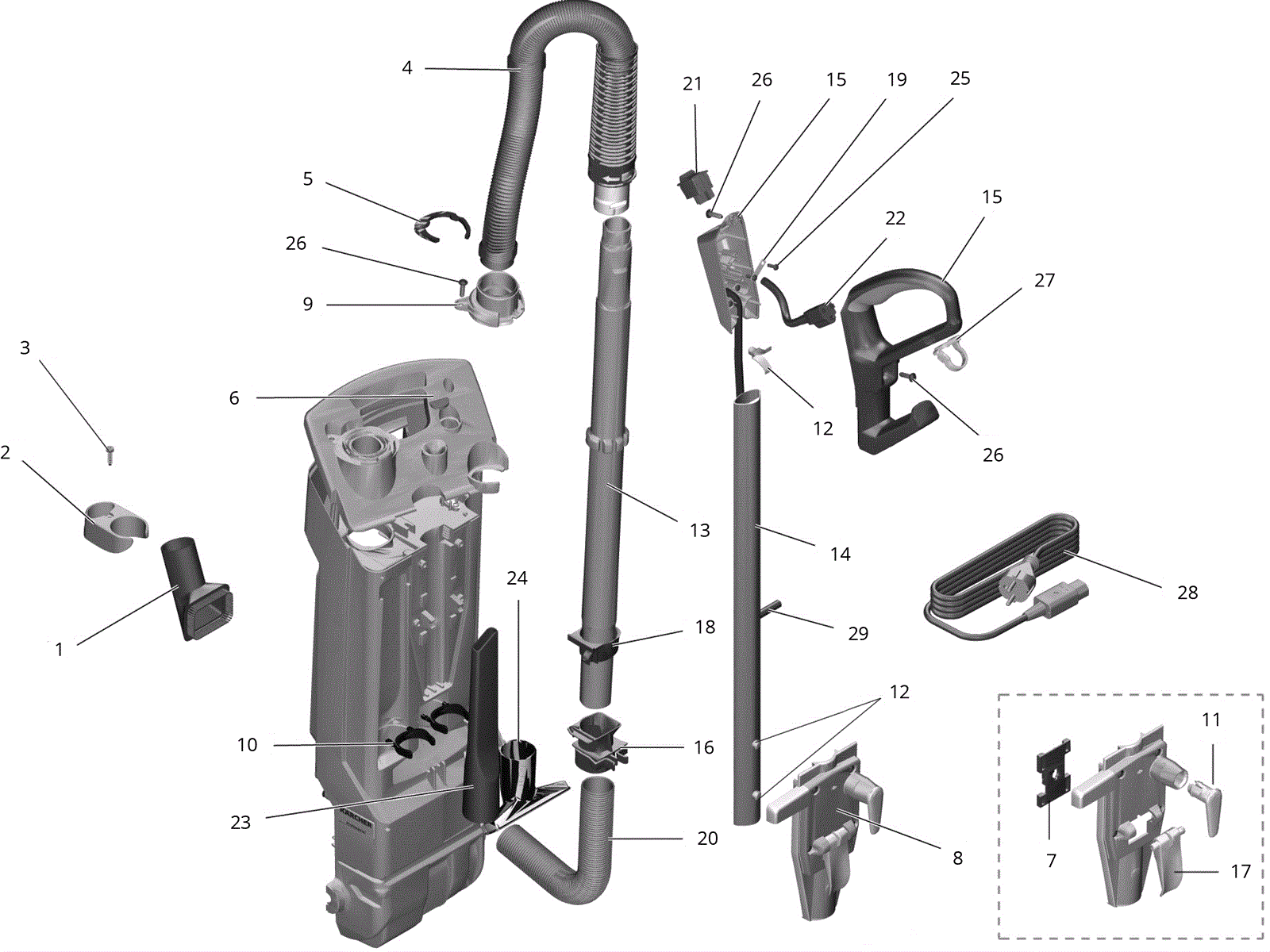

CVD 30 Rear Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-3258 Suction brush $14.21 2 usually ships 8-21 days
2 183-3257 Clamp Call for price 1 usually ships 8-21 days
3 183-2889 Screw M5 x 20mm $1.23 1 usually ships 8-21 days
4 183-7414 Suction tube with sleeve $51.20 1 ships same day
5 183-8115 Retaining ring $2.37 1 ships same day
6 183-9703 Clear lens $7.38 1 usually ships 8-21 days
7 183-8127 Clamp $5.13 1 usually ships 8-21 days
8 183-8124 Back cover assembly $32.47 1 (includes 7, 11, 17) usually ships 1-5 days
9 183-7549 Connection piece $4.83 1 ships same day
10 183-8119 Clip $4.60 2 usually ships 8-21 days
11 183-2129 Lower cord catch $6.01 1 usually ships 8-21 days
12 183-9704 Handle spring $5.03 3 usually ships 8-21 days
13 183-7666 Wand $40.30 1 usually ships 8-21 days
14 183-9705 Handle tube with clips $23.89 1 usually ships 8-21 days
15 183-3261 Handle $37.67 1 usually ships 8-21 days
16 183-9429 Wand sleeve $7.85 1 usually ships 8-21 days
17 183-8130 Lever $5.46 1 usually ships 1-5 days
18 183-7415 Suction tube ring $4.18 1 usually ships 8-21 days
19 183-2085 Clamp clip $4.37 3 ships same day
20 183-8114 Suction hose $34.84 1 usually ships 8-21 days
21 183-2526 Rocker switch $9.72 1 usually ships 8-21 days
22 183-9706 Upper power cable $18.08 1 usually ships 8-21 days
23 173-5755 Crevice nozzle $6.20 1 ships same day
24 183-8118 Upholstery nozzle $10.12 1 ships same day
25 183-0923 Screw 3.5 x 12 $1.23 7 usually ships 8-21 days
26 183-8116 Screw 5 x 20 $0.90 21 usually ships 8-21 days
27 183-9707 Cable holder $7.49 1 usually ships 8-21 days
28 183-2525 Power cord $71.93 1 ships same day
29 183-9708 Cable $17.18 1 usually ships 8-21 days
N/S 183-9430 Accessory clamp kit $30.87 1 usually ships 8-21 days
