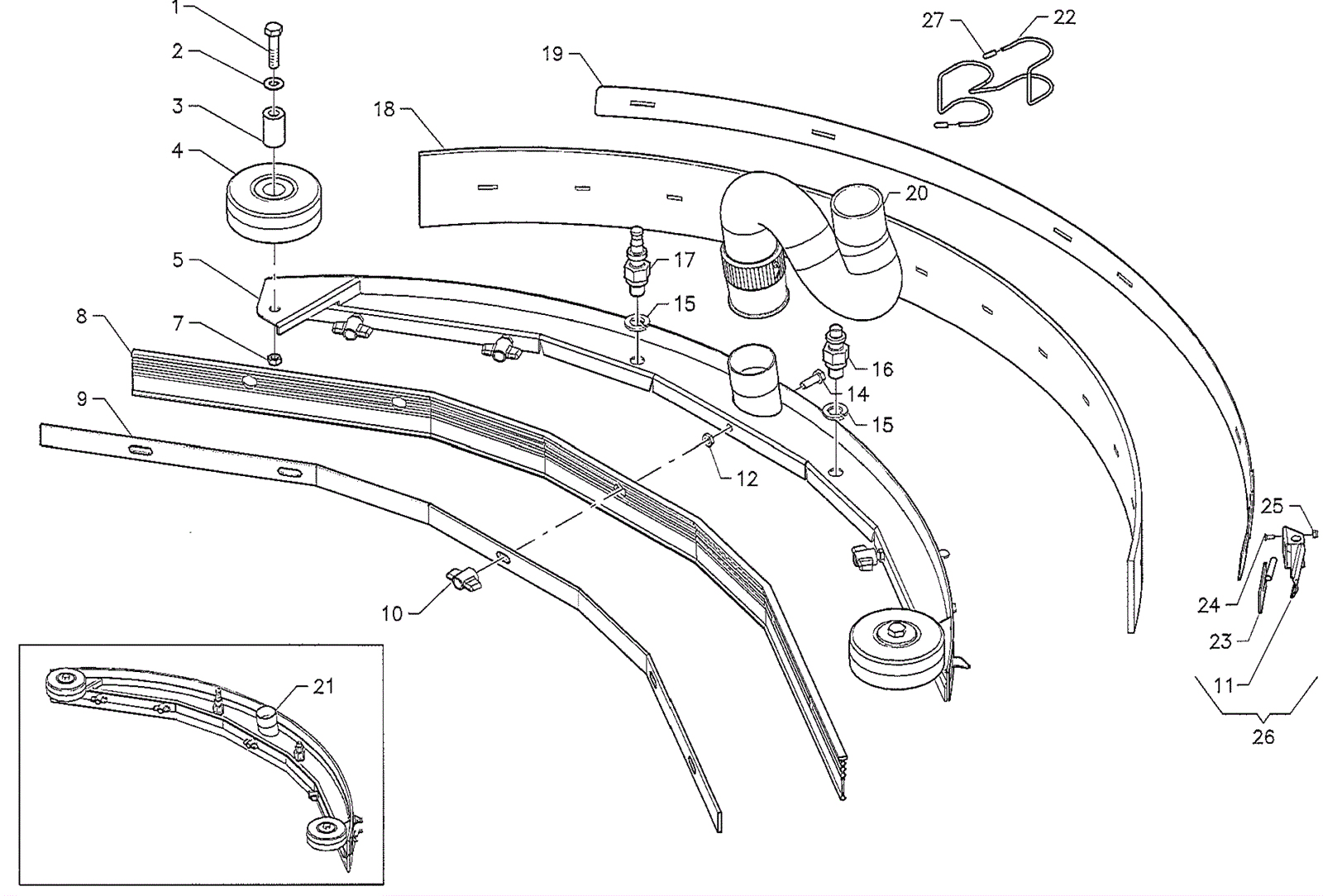

BR 22/14 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-9412 Screw M8 x 45mm INOX $1.98 2 usually ships 14-19 days
2 183-2451 Washer inox $1.54 2 usually ships 14-19 days
3 183-8498 Bushing $8.60 2 usually ships 14-19 days
4 183-4706 Bumper wheel $9.59 2 usually ships 14-19 days
5a 183-9662 Squeegee body Call for price 1 (after SN 15001222) usually ships 14-19 days
5b 183-9665 Squeegee box INOX $552.26 1 (before SN 15001223) usually ships 14-19 days
6 183-8260 Washer INOX $1.54 2 (before SN 15001223) usually ships 14-19 days
7 183-9130 Lock nut $1.54 2 ships same day
8 183-0967 Squeegee blade front $39.72 1 usually ships 14-19 days
9 183-2325 Squeegee blade retainer $30.64 1 usually ships 14-19 days
10 183-2305 Wing nut $4.84 5 usually ships 14-19 days
11 183-8504 Lever $28.89 1 usually ships 14-19 days
12 183-8214 Nut $1.54 5 usually ships 14-19 days
14 183-8319 Screw M6 x 18 $1.54 5 usually ships 14-19 days
15 183-9136 Lock washer $1.54 2 usually ships 14-19 days
16 183-8503 Bolt (OBSOLETE) Call for price 1 usually ships 14-19 days
17 183-8501 Bolt $31.44 1 usually ships 14-19 days
18 183-0968 Squeegee blade rear $55.20 1 usually ships 14-19 days
19 183-2324 Rear squeegee strap $57.15 1 usually ships 14-19 days
20 183-2290 Squeegee hose $56.09 1 ships same day
21 183-9663 Squeegee assembly $710.46 1 usually ships 14-19 days
22 183-8508 Spring $13.05 1 usually ships 14-19 days
23 183-8505 Adjustment bracket $16.12 1 usually ships 14-19 days
24 183-2459 Screw M3 x 10mm $1.54 2 usually ships 14-19 days
25 183-2463 Lock nut inox $2.42 2 usually ships 14-19 days
26 183-9664 Rear blade with latch assembly $130.89 1 usually ships 14-19 days
27 183-2465 Cap $1.54 2 usually ships 14-19 days
