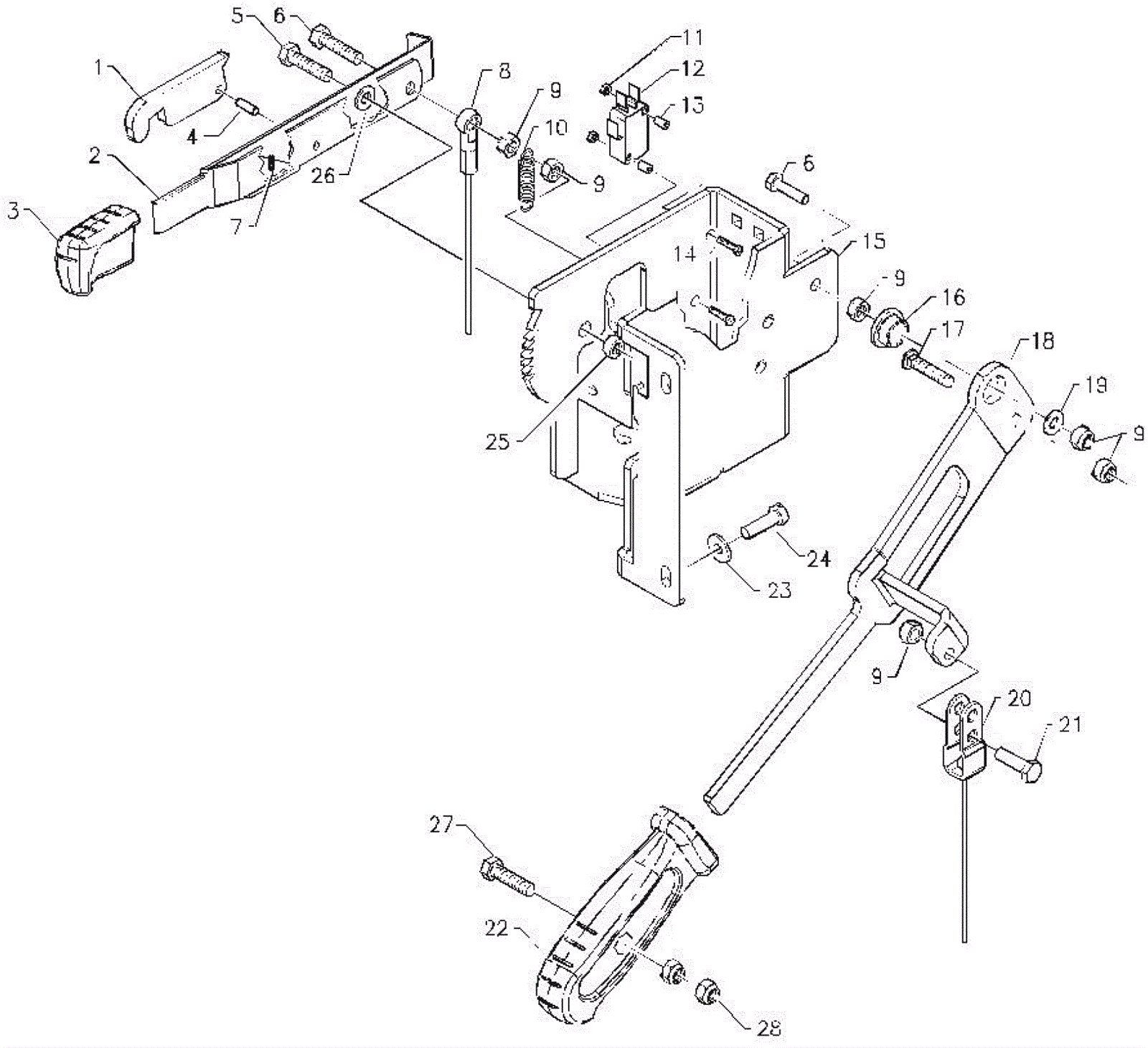

BR 22/14 Lever Controls Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-9168 Blocking lever $5.28 1 usually ships 14-19 days
2 183-9517 Break lever $39.47 1 usually ships 14-19 days
3 183-9166 Brake control knob $3.96 1 usually ships 14-19 days
4 183-9169 Parallel pin $1.54 1 usually ships 14-19 days
5 183-2473 Screw M8 x 20mm $1.54 1 usually ships 14-19 days
6 183-8512 Screw M6 x 25 $1.54 2 usually ships 14-19 days
7 183-9167 Compression spring $3.96 1 usually ships 14-19 days
8 183-9518 Break cable $25.80 1 usually ships 14-19 days
9 183-8256 Nut $1.54 6 usually ships 14-19 days
10 183-2633 Traction spring $11.96 1 usually ships 14-19 days
11 183-8357 Nut $1.54 2 usually ships 14-19 days
12 183-9170 10amp microswitch $10.86 1 usually ships 14-19 days
13 183-8211 Spacer $1.54 2 usually ships 14-19 days
14 183-8345 Screw M3 x 25 $1.54 2 usually ships 14-19 days
15 183-9519 Lever support plate $193.77 1 usually ships 14-19 days
16 183-8258 Bushing $9.26 1 usually ships 14-19 days
17 183-8254 Screw M6 x 16 $1.54 1 usually ships 14-19 days
18 183-9520 Squeegee control lever $43.00 1 usually ships 14-19 days
19 999-1261 Washer M6 flat stainless steel $0.99 1 ships same day
20 183-9021 Rope with eye and fork $37.36 1 ships same day
21 183-8292 Screw M6 x 20 $1.54 1 usually ships 14-19 days
22 183-9340 Squeegee control knob $9.38 1 usually ships 14-19 days
23 183-8537 Washer $1.54 4 usually ships 14-19 days
24 183-8494 Screw M5.2 x 19 (OBSOLETE) Call for price 4 usually ships 14-19 days
25 999-1424 Nut M8-1.25 hex stainless steel $1.65 1 ships same day
26 999-9097 Washer M8 flat stainless steel $0.99 1 ships same day
27 183-2429 Screw M4 x 16mm $1.54 1 usually ships 14-19 days
28 183-2439 Nut $1.54 2 usually ships 14-19 days
