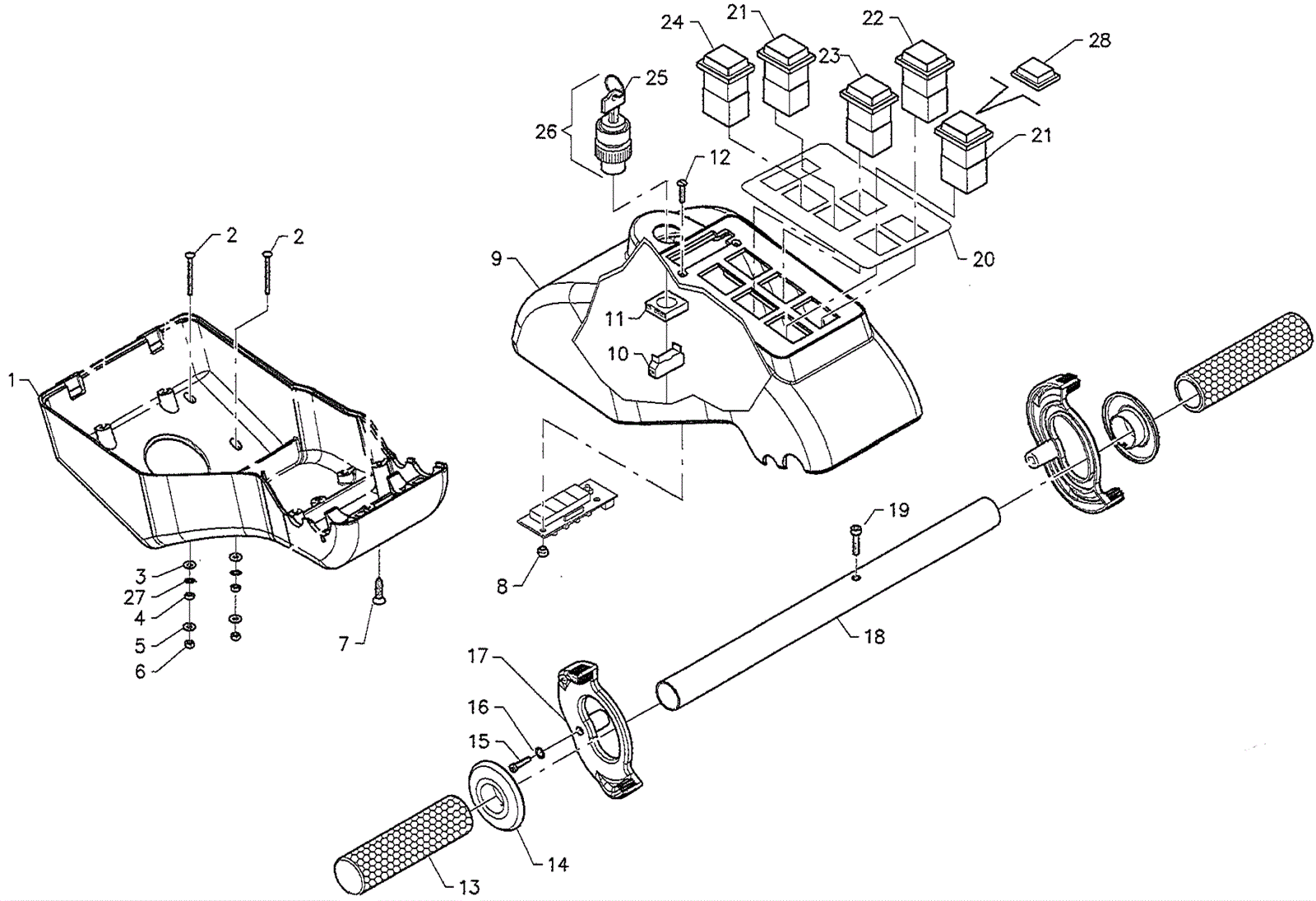

BR 22/14 Handlebar Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-2427 Handlebar body $119.19 1 usually ships 14-19 days
2 999-1337 Screw M6 x 50mm socket head $0.99 4 ships same day
3 183-8393 Washer $1.54 2 usually ships 14-19 days
4 183-8378 Nut $1.54 4 usually ships 14-19 days
5 183-8334 Washer $1.54 2 usually ships 14-19 days
6 999-1308 Nut M6-1 hex stainless steel $0.99 2 ships same day
7 183-8375 Screw M4 x 45 $1.54 2 usually ships 14-19 days
8 183-8386 Nylon nut $1.54 2 usually ships 14-19 days
9 183-8358 Handle cover $27.59 1 (order with 65091070 decal) usually ships 14-19 days
10 183-8373 Switch contact $12.85 1 usually ships 14-19 days
11 183-8372 Switch flange $3.74 1 usually ships 14-19 days
12 183-5141 Screw M3 x 5mm (OBSOLETE) Call for price 1 usually ships 14-19 days
13 183-8336 Handle grip $4.76 2 usually ships 14-19 days
14 183-8396 Handle cap $2.86 2 usually ships 14-19 days
15 183-8337 Screw M3 x 10 $1.54 3 usually ships 14-19 days
16 183-8338 Washer $1.54 2 usually ships 14-19 days
17 183-8339 Lever $5.25 2 usually ships 14-19 days
18 183-8340 Handle tube $25.04 1 usually ships 14-19 days
19 183-8341 Screw $3.30 2 usually ships 14-19 days
20 183-9523 Instrument board decal $11.12 1 usually ships 14-19 days
21 183-4697 Protected switch (green) $13.76 2 ships same day
22 183-4626 Signal lamp (green) $8.48 1 usually ships 14-19 days
23 183-9362 Protected signal lamp (red) $7.78 1 usually ships 14-19 days
24 183-9521 Cover $4.18 1 usually ships 14-19 days
25 183-4696 Key $11.34 1 ships same day
26 183-4695 Key switch $86.98 1 usually ships 14-19 days
27 183-8382 Washer $1.54 4 usually ships 14-19 days
28 183-8385 Cap $2.42 5 usually ships 14-19 days
