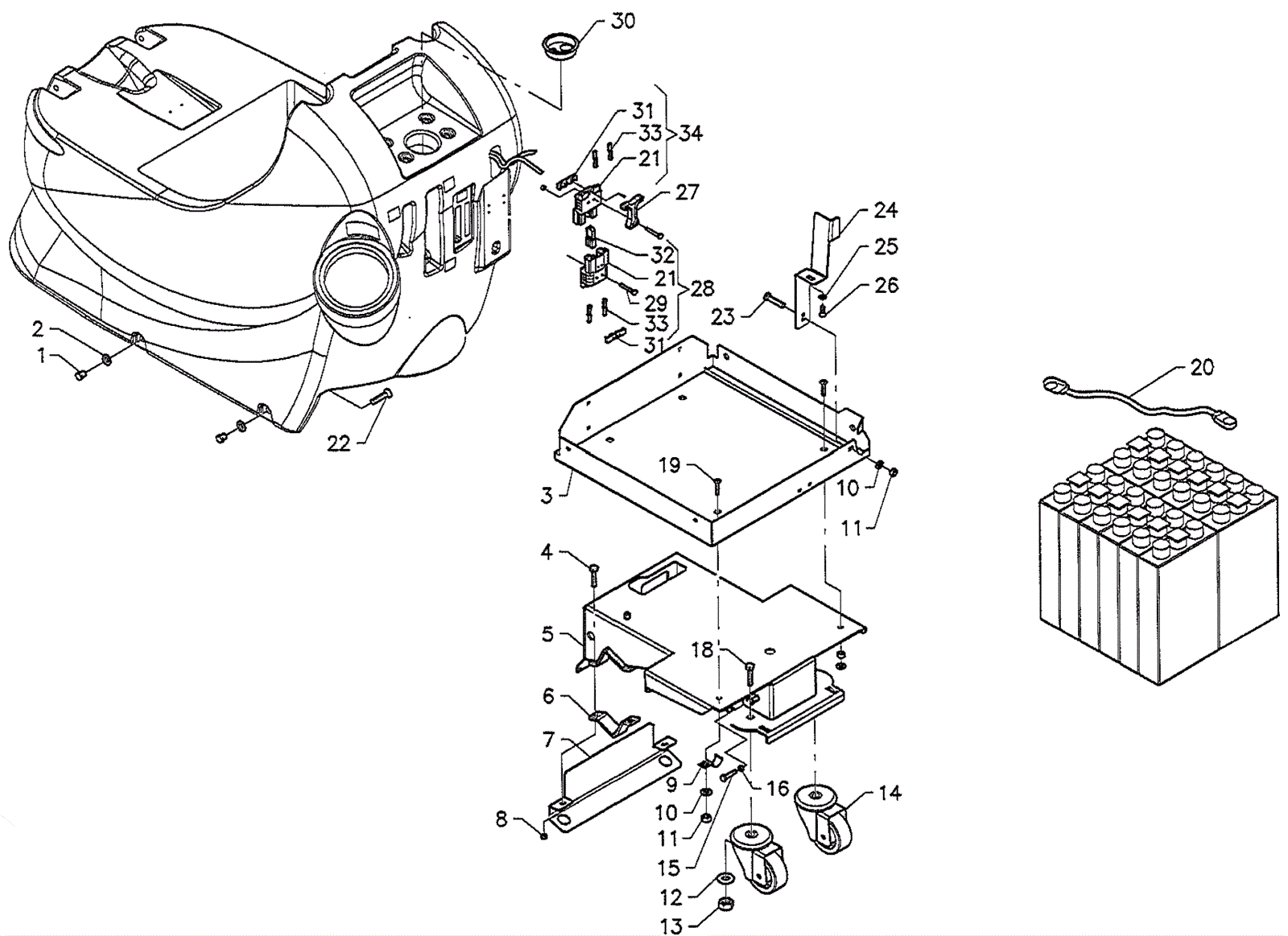

BR 22/14 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-8397 Bushing $9.19 4 usually ships 15-28 days
2 183-8398 Conical washer $1.35 4 usually ships 15-28 days
3 183-9482 Battery base $614.67 1 usually ships 15-28 days
4a 183-9104 Screw M8 x 30mm INOX $1.35 4 (after SN 12001353) usually ships 15-28 days
4b 183-9329 Screw M8 x 30mm $1.35 1 (before SN 12001354) usually ships 15-28 days
5 183-9483 Frame $684.17 1 usually ships 15-28 days
6 183-9484 Clamp $25.55 2 usually ships 15-28 days
7 183-9485 Motor protection $48.87 1 usually ships 15-28 days
8a 183-8291 Nut INOX $1.35 4 (after SN 12001353) usually ships 15-28 days
8b 183-8404 Nut $1.35 1 (before SN 12001354) usually ships 15-28 days
9 183-2512 Hose clip $1.35 1 usually ships 15-28 days
10a 183-8240 Washer INOX $1.35 3 (after SN 12001353) usually ships 15-28 days
10b 999-1261 Washer M6 flat stainless steel $0.99 1 (before SN 12001354) ships same day
11a 999-1308 Nut M6-1 hex stainless steel $0.99 4 (after SN 12001353) ships same day
11b 183-8256 Nut $1.35 1 (before SN 12001354) usually ships 15-28 days
12 183-8410 Washer $1.35 2 usually ships 15-28 days
13a 183-9127 Lock nut INOX $2.01 2 (after SN 12001353) usually ships 15-28 days
13b 183-8411 Nut $1.35 1 (before SN 12001354) usually ships 15-28 days
14 183-9486 3 inch caster assembly $107.17 2 usually ships 15-28 days
15a 183-9487 Screw M10 x 60mm INOX $2.77 2 (after SN 12001353) usually ships 15-28 days
15b 183-9661 Screw M10 x 60 $1.35 1 (before SN 12001354) usually ships 15-28 days
16a 183-9198 Nut INOX $1.35 2 (after SN 12001353) usually ships 15-28 days
16b 183-9343 Nut $1.35 1 (before SN 12001354) usually ships 15-28 days
18a 183-9488 Screw M12 X 35mm INOX $3.16 2 (after SN 12001353) usually ships 15-28 days
18b 183-8408 Screw $1.42 1 (before SN 12001354) usually ships 15-28 days
19 183-8402 Screw M6 x 16 $1.35 4 usually ships 15-28 days
20 183-4694 Battery cable $51.07 1 usually ships 15-28 days
21 183-8459 Connector $24.37 2 usually ships 8-16 days
22 183-8417 Screw M6 x 18 $1.35 4 usually ships 15-28 days
23a 183-2583 Screw M6 x 16mm INOX $1.35 1 (after SN 12001353) usually ships 15-28 days
23b 183-8254 Screw M6 x 16 $1.35 1 (before SN 12001354) usually ships 15-28 days
24 183-9490 Pedal stop $44.39 1 usually ships 15-28 days
25a 183-2580 Washer INOX $1.35 1 (after SN 12001353) usually ships 15-28 days
25b 183-8537 Washer $1.35 1 (before SN 12001354) usually ships 15-28 days
26a 183-8477 Screw M5 x 16 $1.35 1 (after SN 12001353) usually ships 15-28 days
26b 183-9374 Screw M4.8 x 16mm $1.35 1 (before SN 12001354) usually ships 15-28 days
27 183-9226 Connector lever $9.42 1 usually ships 15-28 days
28 183-9224 80amp bipolar connector $71.58 1 (includes 21, 29, 31-33) usually ships 15-28 days
29 183-9491 Screw M4.2 x 32mm INOX $1.35 2 usually ships 15-28 days
30 183-8420 Fairlead (OBSOLETE) Call for price 1 usually ships 15-28 days
31 183-9221 Fair-lead guide $6.03 2 usually ships 15-28 days
32 183-9223 Polarizer assembly $18.36 1 usually ships 15-28 days
33 183-9220 Contact $10.30 4 usually ships 15-28 days
34 183-9225 80amp bipolar female connector $66.25 1 usually ships 15-28 days
