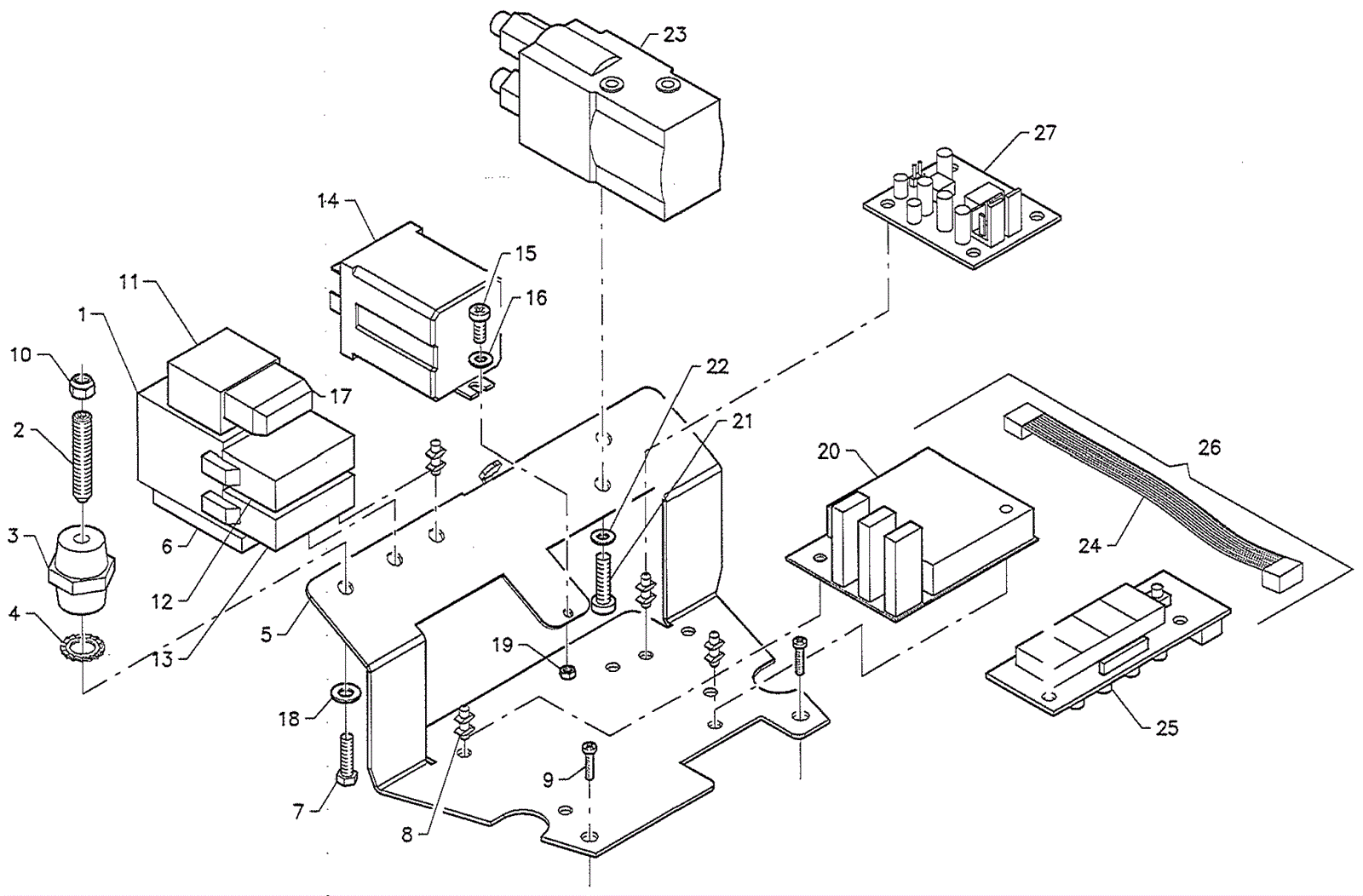

BR 22/14 Electrical Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-8324 Fuse holder $4.84 2 usually ships 14-19 days
2 183-8325 Dowel $1.54 1 usually ships 14-19 days
3 183-8326 Insulator $24.28 1 usually ships 14-19 days
4 183-8327 Washer $1.54 1 usually ships 14-19 days
5 183-8328 Electrical installation panel $28.24 1 usually ships 14-19 days
6 183-8329 Plate $2.42 1 usually ships 14-19 days
7 183-8330 Screw M5 x 8 $1.54 1 usually ships 14-19 days
8 183-8331 Double coupler $1.54 7 usually ships 14-19 days
9 183-8332 Screw M5 x 8 $1.54 2 usually ships 14-19 days
10 183-8314 Nut $1.54 1 usually ships 14-19 days
11 183-8370 Fuse holder $4.48 1 usually ships 14-19 days
12 183-8377 30amp Fuse $4.40 1 ships same day
13 183-2168 50amp maxifuse $4.62 1 usually ships 14-19 days
14 183-4693 Relay $53.23 1 usually ships 14-19 days
15 183-8337 Screw M3 x 10 $1.54 3 usually ships 14-19 days
16 183-8368 Washer $1.54 1 usually ships 14-19 days
17 183-8376 3amp Fuse $1.54 1 usually ships 14-19 days
18 183-8374 Washer $1.54 1 usually ships 14-19 days
19 183-8357 Nut $1.54 1 usually ships 14-19 days
20 183-9022 Battery check card $238.03 1 ships same day
21 183-8364 Screw M4 x 8 $1.76 2 usually ships 14-19 days
22 183-8365 Washer $1.54 2 usually ships 14-19 days
23 183-8367 80amp Remote control switch $101.51 1 usually ships 14-19 days
24 183-8359 Display cable $26.06 1 usually ships 14-19 days
25 183-8356 Battery display $41.62 1 usually ships 14-19 days
26 183-9023 Check card control $301.43 1 usually ships 1-5 days
27 183-8379 Motor check card $70.43 1 usually ships 14-19 days
