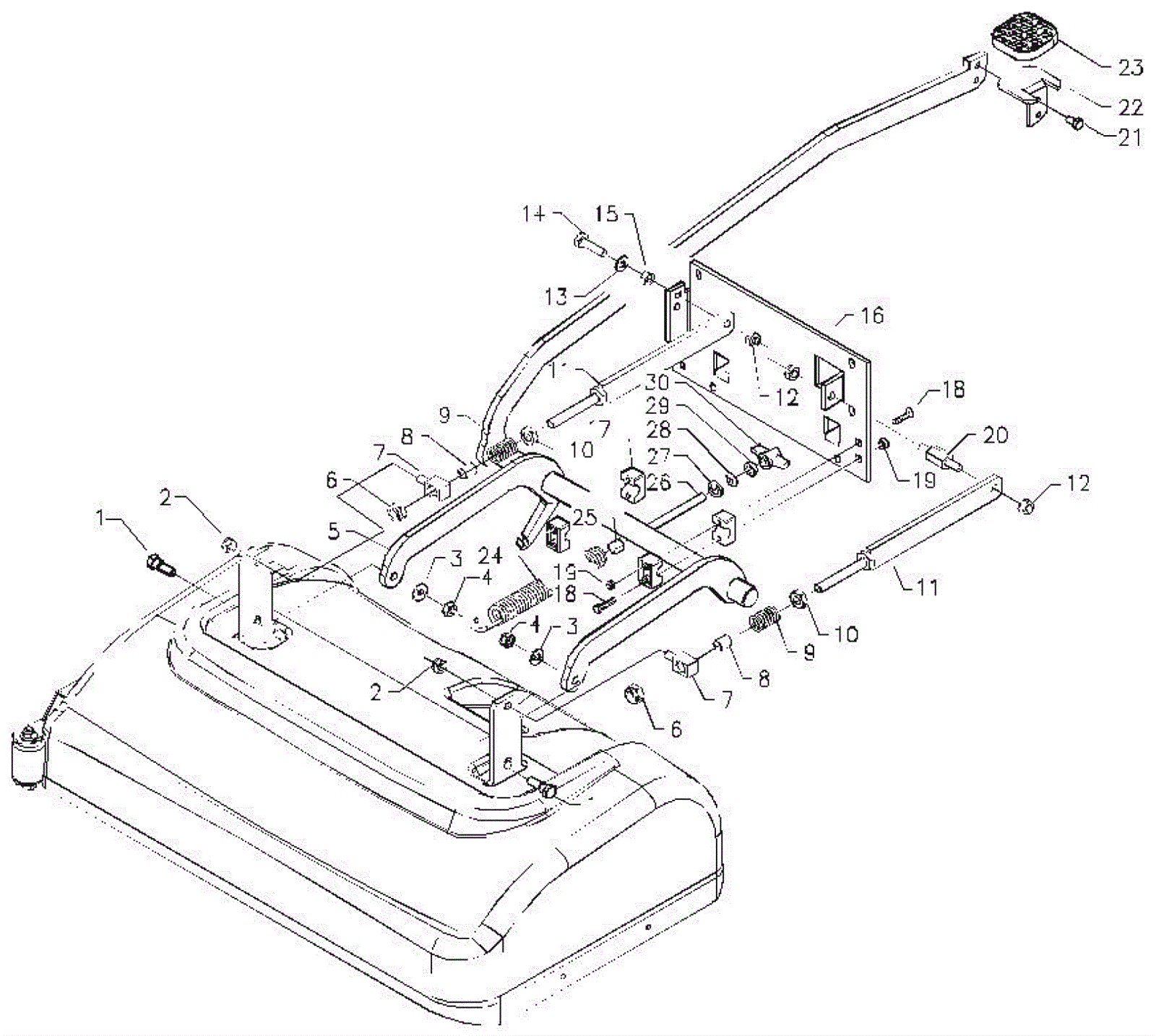

BR 22/14 Brush Base Control Assembly - Before SN 08001621

#PartDescriptionPriceReqNotesAvailability
1 183-2145 Bolt arm stud $8.92 2 usually ships 1-5 days
2 999-1424 Nut M8-1.25 hex stainless steel $1.65 2 ships same day
3 183-2539 Lock washer $1.35 2 usually ships 15-28 days
4 183-8378 Nut $1.35 2 usually ships 15-28 days
5 183-9651 Brush base control $183.79 1 usually ships 15-28 days
6 183-8424 Nut $1.35 2 usually ships 15-28 days
7 183-8426 Arm adjuster $23.42 2 usually ships 15-28 days
8 183-8427 Spring guide $8.16 2 usually ships 15-28 days
9 183-8429 Compression spring $3.72 2 usually ships 15-28 days
10 183-8439 Nut $1.35 2 usually ships 15-28 days
11 183-9652 Arm $22.59 2 usually ships 15-28 days
12 999-1424 Nut M8-1.25 hex stainless steel $1.65 2 ships same day
13 999-9097 Washer M8 flat stainless steel $0.99 1 ships same day
14 183-9329 Screw M8 x 30mm $1.35 1 usually ships 15-28 days
15 999-1424 Nut M8-1.25 hex stainless steel $1.65 1 ships same day
16 183-9653 Plate $93.60 1 usually ships 15-28 days
17 183-7613 Base control holder $7.36 4 usually ships 15-28 days
18 183-8430 Screw M6 x 70 $1.35 8 usually ships 15-28 days
19 183-8256 Nut $1.35 8 usually ships 15-28 days
20 183-9655 Spacer Call for price 1 usually ships 15-28 days
21 183-8432 Screw M6 x 12 $1.35 2 usually ships 15-28 days
22 183-8434 Pedal plate $14.07 1 usually ships 15-28 days
23 183-8433 Pedal cover $8.89 1 usually ships 15-28 days
24 183-4762 Spring traction $29.93 1 usually ships 15-28 days
25 183-4763 Insert $1.35 1 usually ships 15-28 days
26 183-4764 Threaded tie rod $10.64 1 usually ships 15-28 days
27 183-9116 Spherical bushing bracket $20.56 1 usually ships 15-28 days
28 183-4766 Spherical bushing $12.35 1 usually ships 15-28 days
29 183-4767 Nut $1.35 1 usually ships 15-28 days
30 183-4768 Wing nut $4.44 1 usually ships 15-28 days
