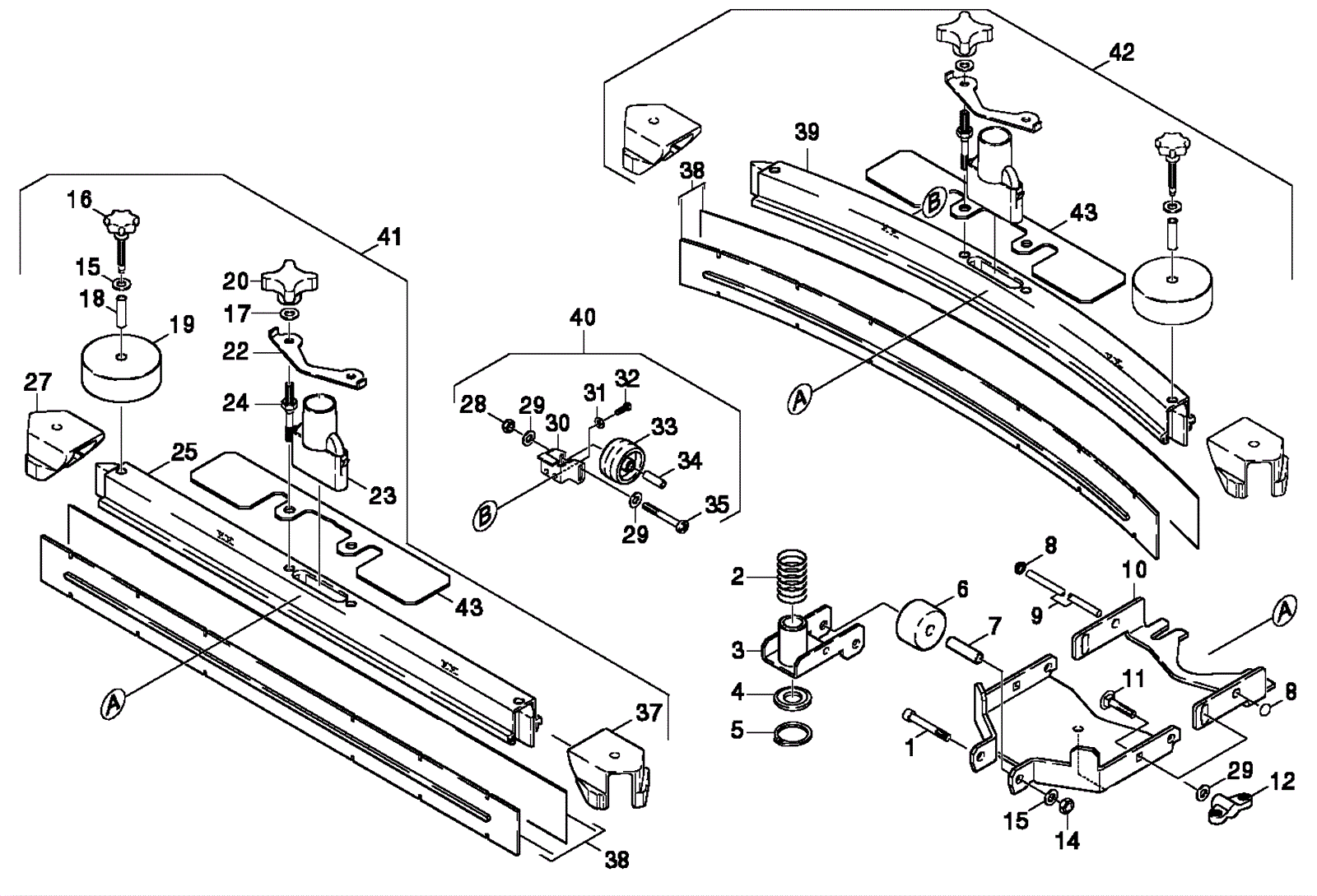

BR 53/40 99585 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-0340 Screw $3.89 1 usually ships 1-5 days
2 183-0238 Helical spring $5.50 1 usually ships 1-5 days
3 183-0224 Carrier $66.75 1 usually ships 1-5 days
4 183-0285 Washer (OBSOLETE) $2.02 1 usually ships 8-21 days
5 183-0252 Spring clip $1.35 1 usually ships 1-5 days
6 183-0348 Roller $10.87 1 usually ships 8-21 days
7 183-0349 Bushing $10.76 1 usually ships 1-5 days
8 183-0197 Wheel cap $2.67 2 usually ships 8-21 days
9 183-0342 Bar $8.67 1 ships same day
10 183-0344 Rocker $48.47 1 usually ships 8-21 days
11 183-0343 Screw $1.58 2 usually ships 8-21 days
12 183-0347 Wing nut (Obsolete) $7.55 2 usually ships 8-21 days
14 183-0341 Hex nut $1.63 1 usually ships 1-5 days
15 183-0471 Washer $1.35 3 usually ships 8-21 days
16 183-0964 Knob (Obsolete) $14.36 2 usually ships 1-5 days
17 183-0459 Washer $1.35 2 usually ships 8-21 days
18 183-0311 Pipe $10.25 2 usually ships 1-5 days
19 183-0289 Roller wheel $24.09 4 usually ships 7-19 days
20 183-0284 Star handle $8.37 2 usually ships 8-21 days
22 183-0308 Plate $18.49 1 usually ships 1-5 days
23 183-0314 Intake tube $9.38 1 usually ships 1-5 days
24 183-0315 Pin (Obsolete) $12.34 1 usually ships 1-5 days
25 183-0484 Profile (OBSOLETE) Call for price 1 usually ships 8-21 days
27 183-0319 Hose $6.99 1 usually ships 1-5 days
28 183-0304 Hex nut $1.30 4 usually ships 1-5 days
29 999-1261 Washer M6 flat stainless steel $0.99 6 ships same day
30 183-0320 Bracket (Obsolete) $28.08 2 usually ships 1-5 days
31 183-0485 Washer (OBSOLETE) Call for price 4 usually ships 8-21 days
32 183-0323 Screw M5-.8 x 10mm stainless steel $1.88 4 usually ships 1-5 days
33 183-0301 Wheel $28.29 2 usually ships 8-21 days
34 183-0303 Axle $34.32 2 usually ships 8-21 days
35 183-0302 Screw $1.93 2 usually ships 1-5 days
37 183-0301 Wheel $28.29 1 usually ships 8-21 days
38a 183-0327 Oil-resistant squeegee blade set $301.63 1 usually ships 8-21 days
38b 183-7499 Squeegee blade set $150.26 1 usually ships 8-21 days
38c 183-0326 Anti-stripe squeegee blade set $357.07 1 usually ships 8-21 days
39 183-0486 Profile (OBSOLETE) Call for price 1 usually ships 8-21 days
40 183-0299 Support wheels kit $79.87 1 (includes 28 - 35) usually ships 8-21 days
41 183-0316 Straight squeegee beam (Obsolete) $524.79 1 (includes 15 - 27, 37, 38, 43) usually ships 1-5 days
42 183-0328 Complete squeegee assembly $781.14 1 (includes 38, 39, 43) usually ships 8-21 days
43 183-0487 Weight addition $60.35 1 usually ships 8-21 days
